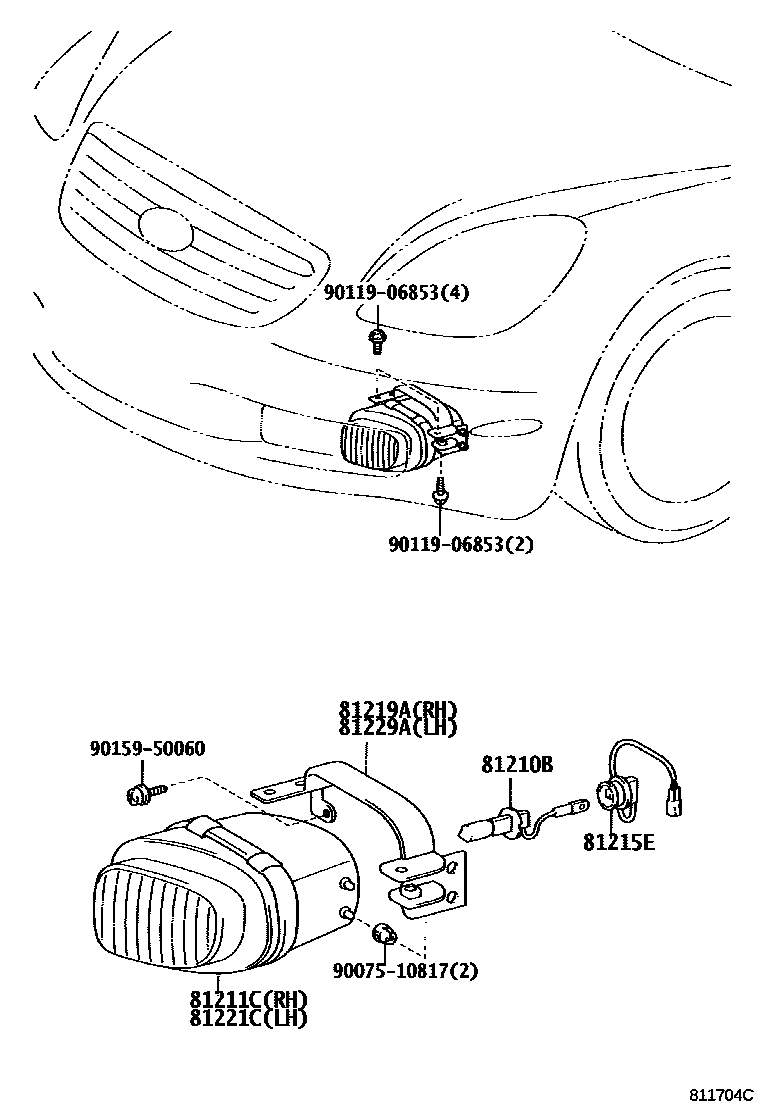

Toyota SOARER/LEXUS SC430 — FOG LAMP
81210BBULB, FOG LAMP
81211CLAMP UNIT, FOG LAMP, RH
81215ECORD, FOG LAMP
81219ABRACKET, FOG LAMP, RH
81221CLAMP UNIT, FOG LAMP, LH
81229ABRACKET, FOG LAMP, LH
9007510817
9011906853
9015950060
9 parts on this diagram · 1 diagram in section
FOG LAMP for Toyota SOARER/LEXUS SC430
This section contains 9 genuine Toyota parts for the FOG LAMP system of the Toyota SOARER/LEXUS SC430. Key components include: BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, CORD, FOG LAMP, BRACKET, FOG LAMP, RH, LAMP UNIT, FOG LAMP, LH.
