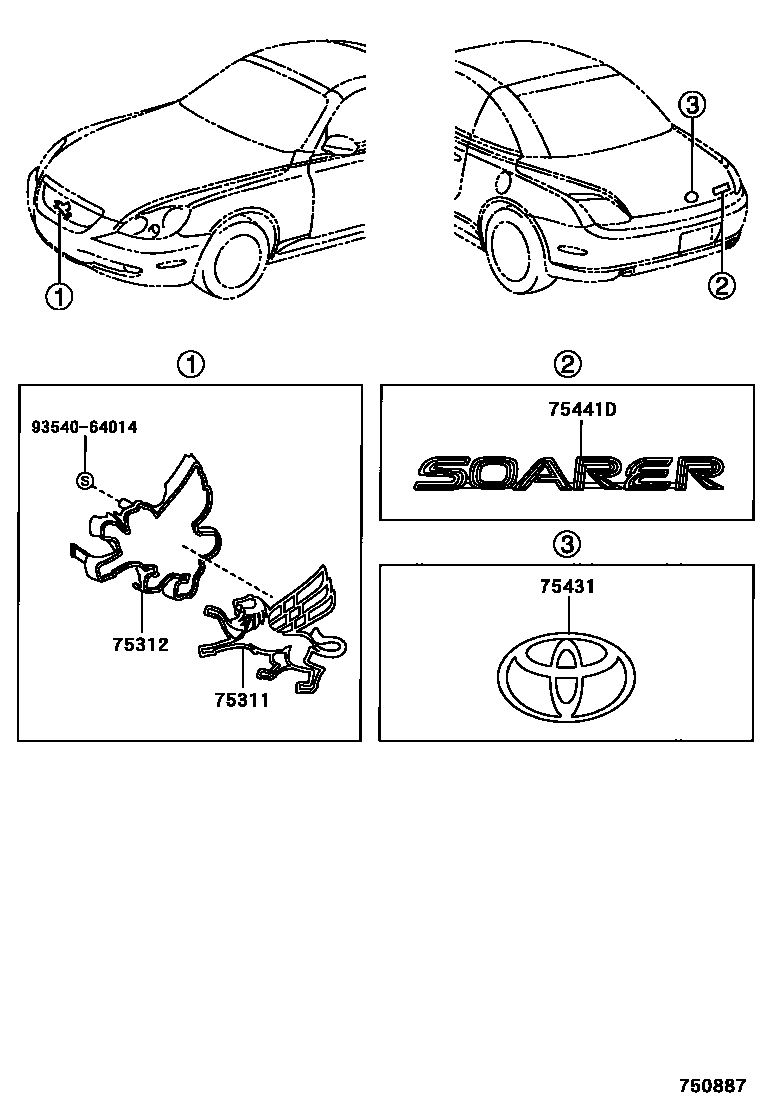

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-24050iUZZ40200104-200508

main90975-02081iUZZ40200508-201007

75312BASE, RADIATOR GRILLE EMBLEM

main75312-24090iUZZ40200104-200508

75431EMBLEM, LUGGAGE COMPARTMENT DOOR

main90975-02026iUZZ40200508-201007

main90975-02041iUZZ40200104-200508

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-24050iUZZ40200508-201007

main75441-24060iUZZ40200104-200508

9354064014

main93540-64014

5 parts on this diagram · 2 diagrams in section
