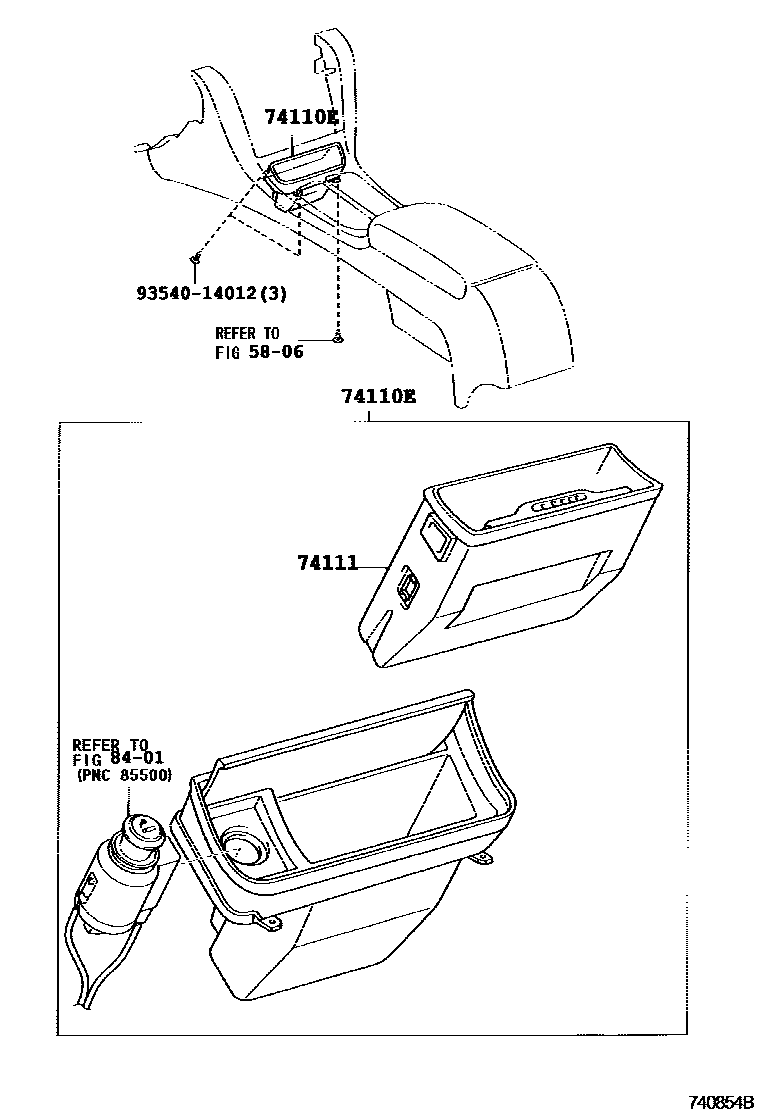

ASH RECEPTACLE

5806CONSOLE BOX & BRACKET

→ Go to FIG 58-06

74110ERECEPTACLE ASSY, FRONT ASH

main74110-24060-B0iUZZ40200104-200508

ECRU BROWN,TRIM0#

main74110-24060-B1iUZZ40200508

DK.GRAY,TRIM03,23,24,33,43

main74110-24060-D0iUZZ40200208-200508

RED,TRIM3#

main74110-24060-E0iUZZ40200508

MD.BROWN,TRIM00,20,30,40

main74110-24060-E1iUZZ40201003-201007

"THE ETERNAL JEWEL" *(J),DK.BROWN,TRIM07,44,45

74111BOX, FRONT ASH RECEPTACLE

main74111-24050iUZZ40200508

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9354014012

main93540-14012

5 parts on this diagram · 1 diagram in section
