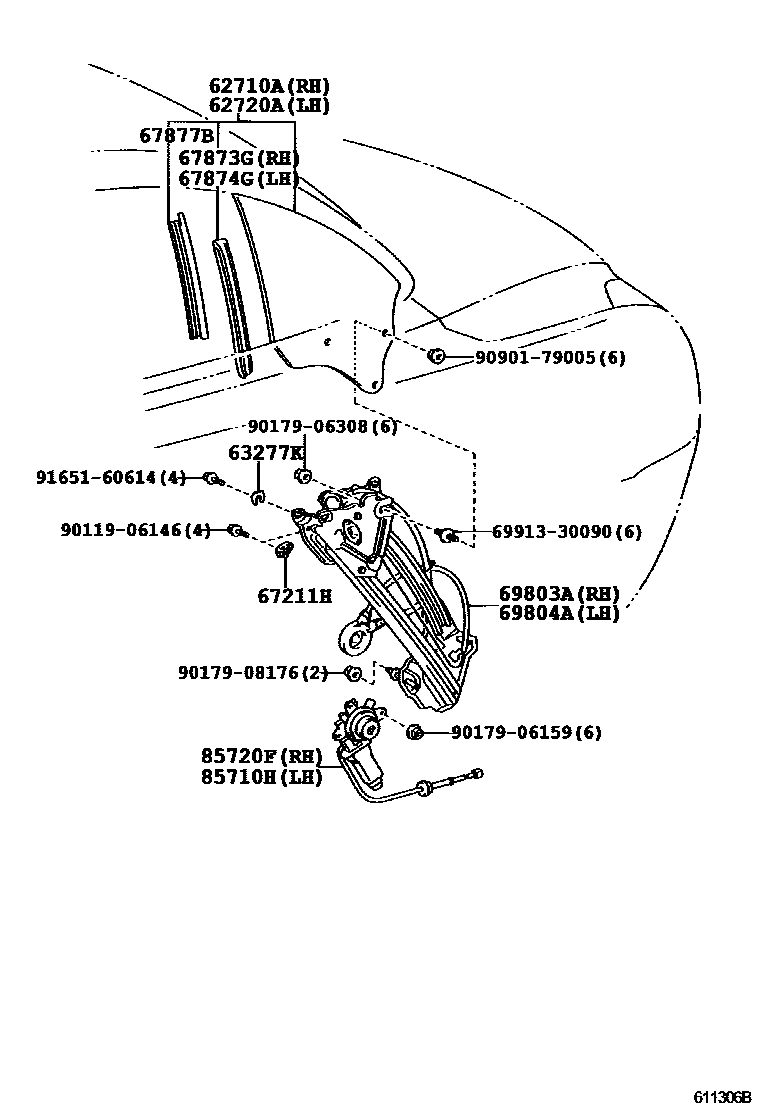

QUARTER WINDOW

62710AWINDOW ASSY, QUARTER, RH

main62710-24160iUZZ40..5FC200104-200105

main62710-24161iUZZ40200105-200508

main62710-24170iUZZ40200508

62720AWINDOW ASSY, QUARTER, LH

main62720-24160iUZZ40..5FC200104-200105

main62720-24161iUZZ40200105-200508

main62720-24170iUZZ40200508

63277KSHIM, QUARTER WINDOW

main63277-30060iUZZ40200104-200508

67211HSTOP, QUARTER WINDOW

main67211-24020×4iUZZ40200104-200508

67873GWEATHERSTRIP, QUARTER WINDOW, FRONT RH

main67873-24010iUZZ40..5FC200104-200105

main67873-24011iUZZ40200105-200508

67874GWEATHERSTRIP, QUARTER WINDOW, FRONT LH

main67874-24010iUZZ40..5FC200104-200105

main67874-24011iUZZ40200105-200508

67877BRETAINER, QUARTER WINDOW FRONT WETHERSTRIP

main67877-24010iUZZ40200104-200508

main67878-24010iUZZ40200104-200508

69803AREGULATOR SUB-ASSY, QUARTER WINDOW, RH

main69803-24010iUZZ40200104-200508

69804AREGULATOR SUB-ASSY, QUARTER WINDOW, LH

main69804-24010iUZZ40200104-200508

85710HMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-24050iUZZ40200104-200508

85720FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-24050iUZZ40200104-200508

6991330090BOLT, FRONT DOOR GLASS SETTING

main69913-30090

9011906146

main90119-06146

9017906159

main90179-06159

9017906308

main90179-06308

9017908176

main90179-08176

9090179005

main90901-79005

9165160614

main91651-60614

18 parts on this diagram · 1 diagram in section
