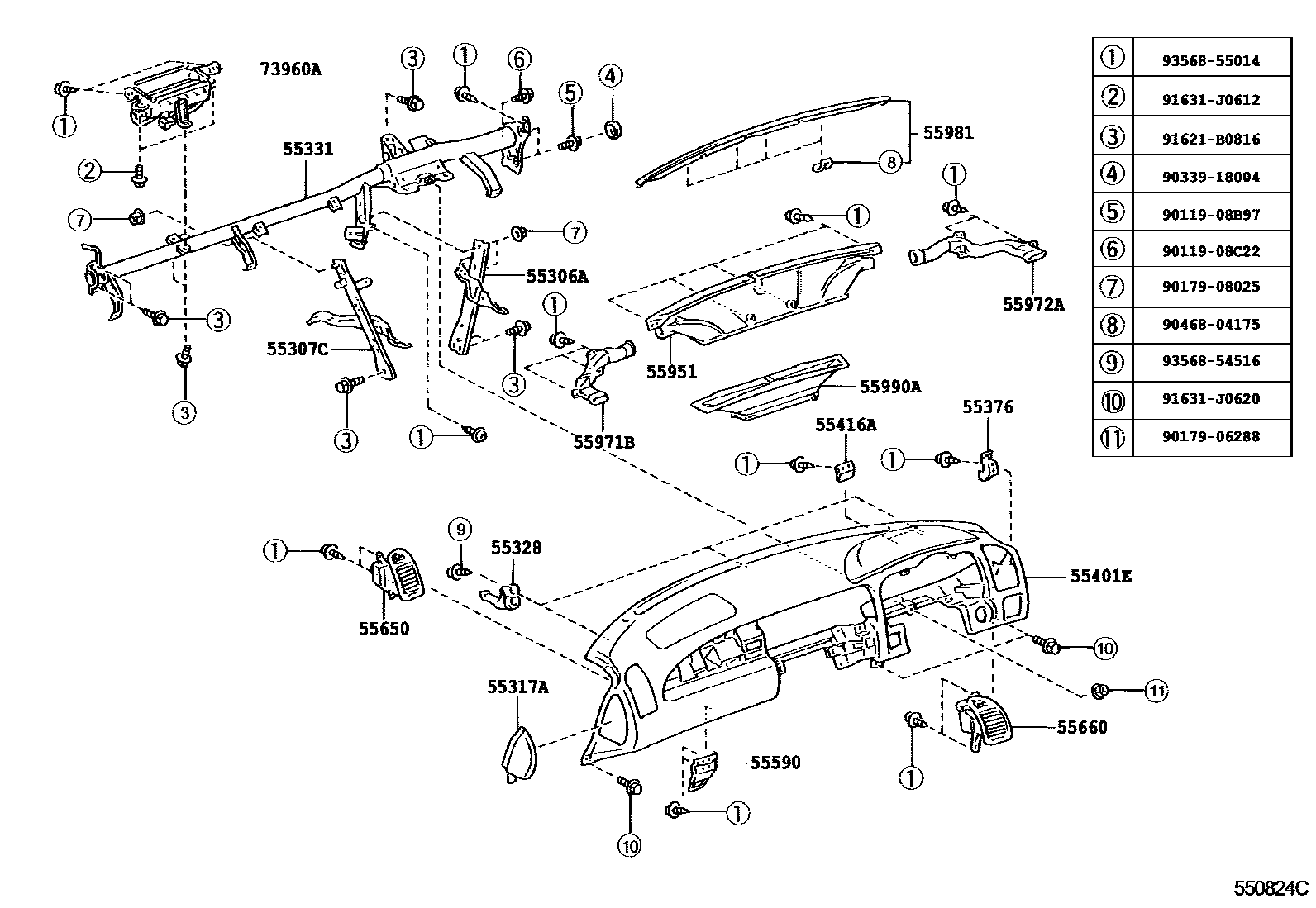

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-24060iUZZ40200104-200508

main55306-24080iUZZ40200608-200807

main55306-24081iUZZ40200808

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-24040iUZZ40200104-200508

main55307-24060iUZZ40200608

55317APANEL, INSTRUMENT SIDE, RH

main55317-24030-C0iUZZ40200208-200508

BLACK,TRIM0#,20,21,3#

main55317-24030-E0iUZZ40200508

DK.BROWN,TRIM4#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-48010×3iUZZ40..5FC200104-200106

main55328-48040×3iUZZ40200106-200508

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-24100iUZZ40200104-200508

main55330-24120iUZZ40200608

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-24040iUZZ40200104-200508

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-24110-C0iUZZ40200104-200208

BLACK,TRIM0#,20,21

main55401-24110-E0iUZZ40200508-200608

DK.BROWN,TRIM4#

main55401-24120-C0iUZZ40200608

BLACK,TRIM0#,2#,3#

main55401-24120-E0iUZZ40200608

DK.BROWN,TRIM4#

55416ARETAINER, METER HOOD, NO.1

main55416-30140×2iUZZ40200104-200508

55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER

main55590-24030iUZZ40200104-200508

main55590-24050iUZZ40200608

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-24050-C0iUZZ40200104-200208

BLACK,TRIM0#,20,21

main55650-24050-E0iUZZ40200508

DK.BROWN,TRIM4#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-24090-C0iUZZ40200104-200208

BLACK,TRIM0#,20,21

main55660-24090-E0iUZZ40200508

DK.BROWN,TRIM4#

55951NOZZLE, DEFROSTER, FRONT

main55951-24040iUZZ40200104-200508

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-24060iUZZ40200104-200508

55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-24050iUZZ40200104-200508

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-24060-C0iUZZ40200104-200208

BLACK,TRIM0#,20,21

main55981-24060-E0iUZZ40200508

DK.BROWN,TRIM4#

55990ANOZZLE ASSY, DEFROSTER, LOWER

main55990-24020iUZZ40200104-200508

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-24020iUZZ40200104-200508

main73960-24040iUZZ40200608

9011908B97

main90119-08B97

9011908C22

main90119-08C22

9017906288

main90179-06288

9017908025

main90179-08025

9033918004

main90339-18004

9046804175

main90468-04175

91621B0816

main91621-B0816

91631J0612

main91631-J0612

91631J0620

main91631-J0620

9356854516

main93568-54516

9356855014

main93568-55014

28 parts on this diagram · 4 diagrams in section
