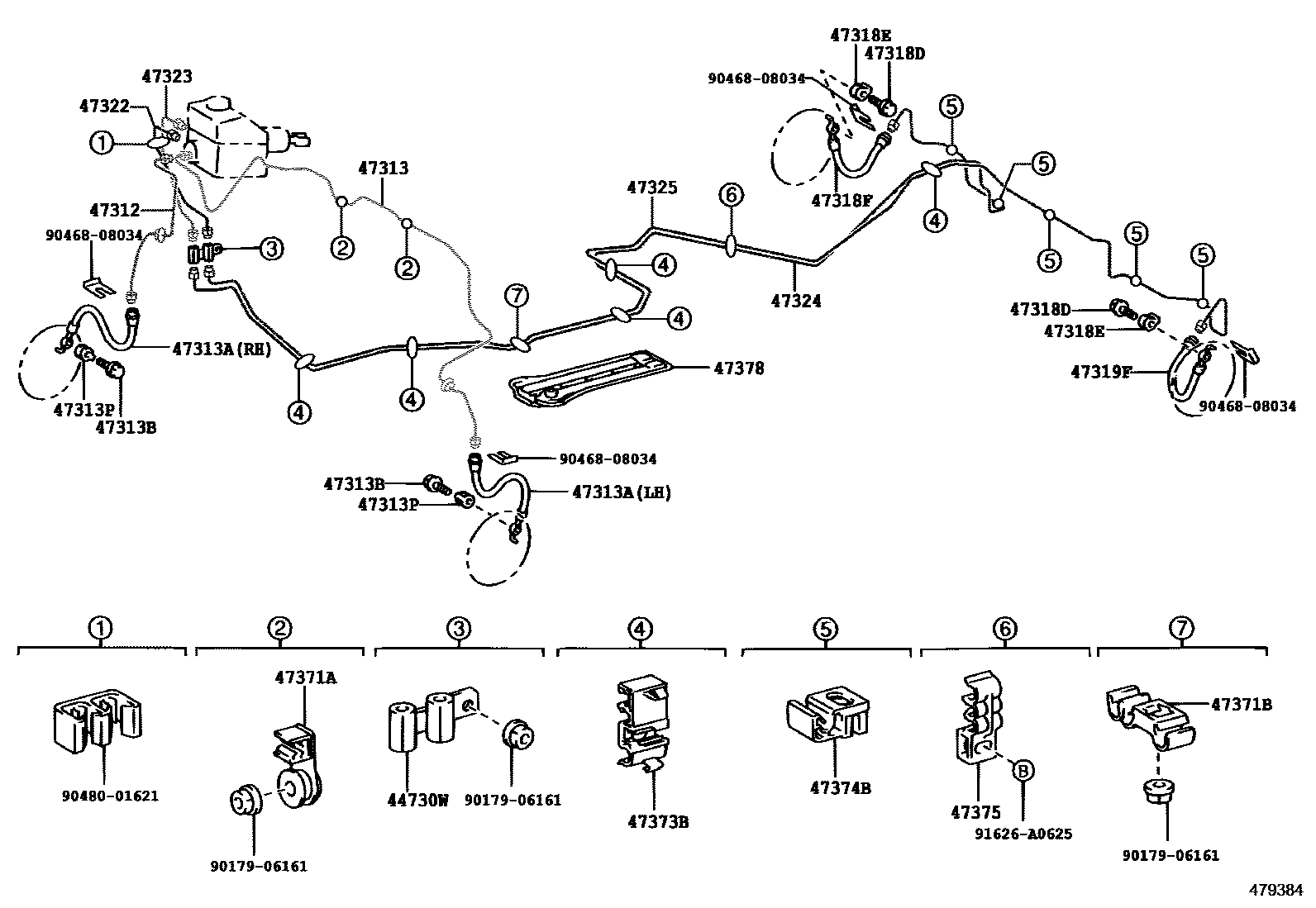

Toyota SOARER/LEXUS SC430 — BRAKE TUBE & CLAMP
44730WWAY, 2(FOR FRONT BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47322TUBE, REAR BRAKE, NO.2
47323TUBE, REAR BRAKE, NO.3
47324TUBE, REAR BRAKE, NO.4
47325TUBE, REAR BRAKE, NO.5
47371ACLAMP, BRAKE TUBE, NO.1
47371BCLAMP, BRAKE TUBE, NO.6
47373BCLAMP, BRAKE TUBE, NO.3
47374BCLAMP, BRAKE TUBE, NO.4
47375CLAMP, BRAKE TUBE, NO.5
47378PROTECTOR, BRAKE TUBE
9017906161
9046808034
9048001621
91626A0625
24 parts on this diagram · 1 diagram in section
BRAKE TUBE & CLAMP for Toyota SOARER/LEXUS SC430
This section contains 24 genuine Toyota parts for the BRAKE TUBE & CLAMP system of the Toyota SOARER/LEXUS SC430. Key components include: WAY, 2(FOR FRONT BRAKE TUBE), TUBE, FRONT BRAKE, NO.2, TUBE, FRONT BRAKE, NO.3, HOSE, FLEXIBLE, NO.1(FOR FRONT), BOLT, UNION(FOR FRONT FLEXIBLE HOSE).
