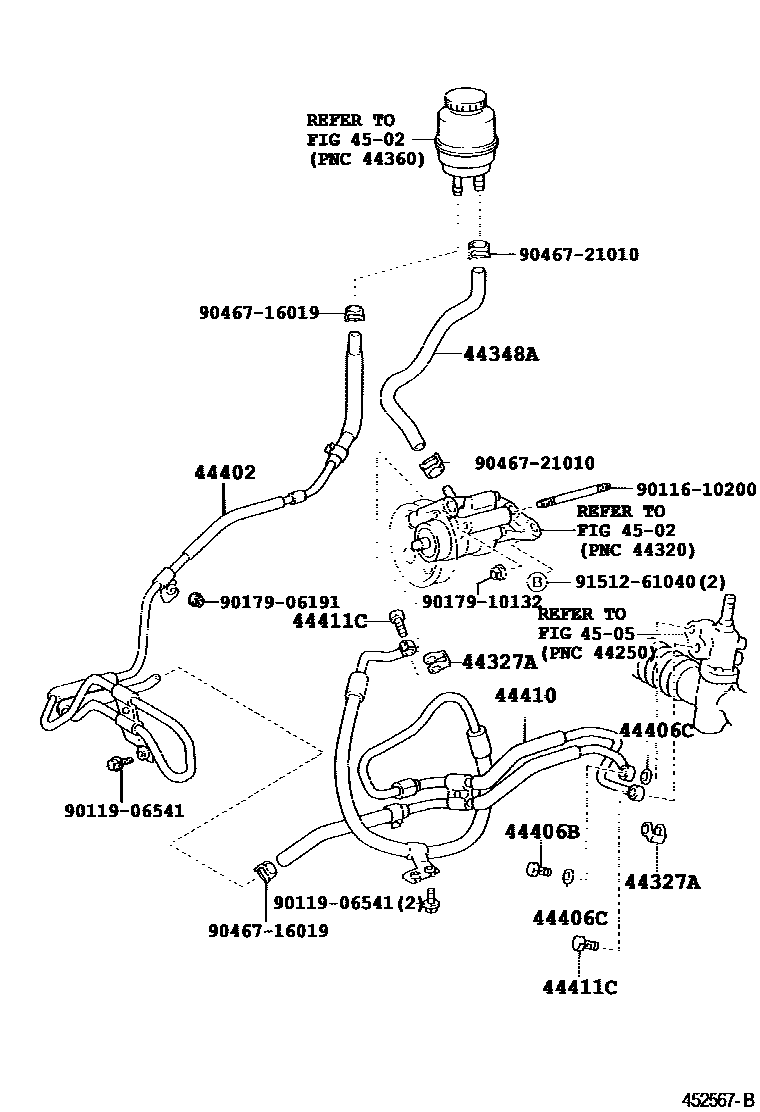

POWER STEERING TUBE

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030×2iUZZ40200104-200508

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-30200iUZZ40200104-200508

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-24260iUZZ40200104-200508

44406BBOLT, UNION(FOR RETURN TUBE)

main90401-17005iUZZ40200208-200508

main96341-11703iUZZ40..5FC200104-200208

44406CGASKET(FOR RETURN TUBE)

main90430-17008×2iUZZ40200104-200508

44410TUBE ASSY, PRESSURE FEED

main44410-30570iUZZ40200104-200508

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main96341-41603×2iUZZ40200104-200508

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9011610200

main90116-10200

9011906541

main90119-06541

9017906191

main90179-06191

9017910132

main90179-10132

9046716019

main90467-16019

9046721010

main90467-21010

9151261040

main91512-61040

16 parts on this diagram · 1 diagram in section
