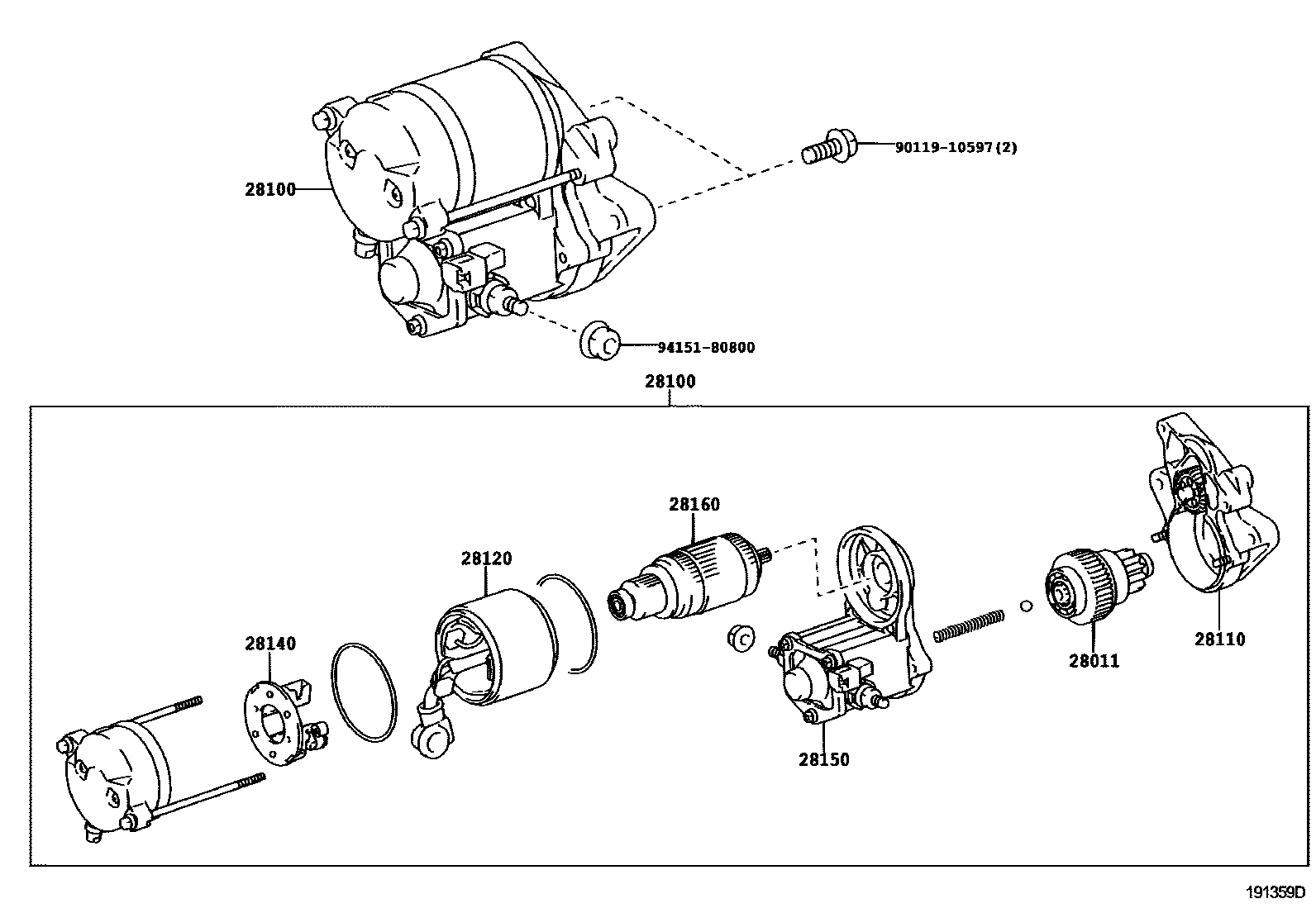

STARTER

28011CLUTCH SUB-ASSY, STARTER

main28011-50050i3UZFE..UZZ40..5FC200104-200406

main28011-50080i3UZFE..UZZ40200406-200508

28100STARTER ASSY

main28100-50080i3UZFE..UZZ40200104-200508

main28100-50081i3UZFE..UZZ40200907

28110HOUSING ASSY, STARTER DRIVE

main28110-50080i3UZFE..UZZ40200406-200508

28120YOKE ASSY, STARTER

main28120-66040i3UZFE..UZZ40200104-200508

28140HOLDER ASSY, STARTER BRUSH

main28140-76070i3UZFE..UZZ40200104-200508

28150SWITCH ASSY, MAGNET STARTER

main28150-50080i3UZFE..UZZ40200104-200508

main28150-50090i3UZFE..UZZ40200508

28160ARMATURE ASSY, STARTER

main28160-74070i3UZFE..UZZ40200104-200508

9011910597

main90119-10597

9415180800

main94151-80800

9 parts on this diagram · 1 diagram in section
