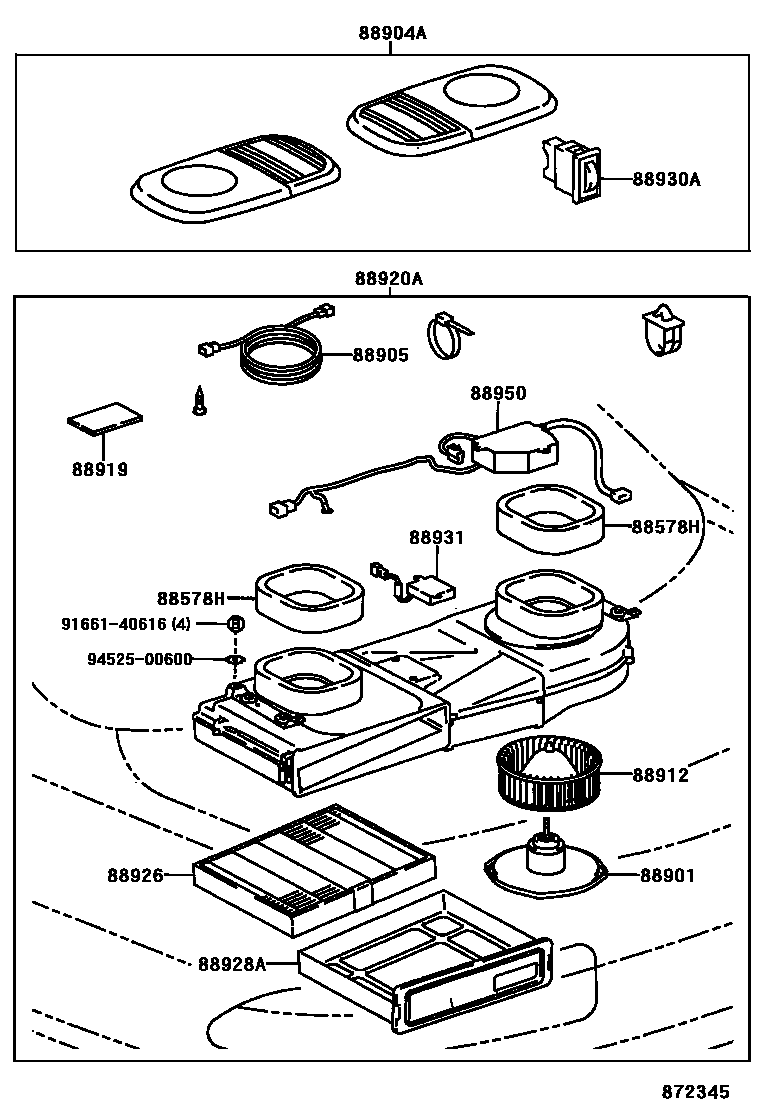

AIR PURIFIER OR ION GENERATOR

88578HPACKING, AIR PURIFIER, NO.2

main88916-24050×2iJZZ3#,UZZ3#199401

88901MOTOR SUB-ASSY, AIR PURIFIER

main88901-22140iJZZ30,UZZ30,31199105-199401

88904AACCESSORY SUB-ASSY, AIR PURIFIRE

main88904-24030-B0iJZZ30,UZZ30,31199105-199401

MIDIUM GRAY,TRIM1#

main88904-24030-C0iJZZ3#,UZZ3#199401

BLACK,TRIM2#

main88904-24030-E0iJZZ30,UZZ30,31199105-199401

IVORY,TRIM0#

main88904-24030-G0iJZZ30,UZZ30,31199105-199401

SPRUCE,TRIM6#

88905WIRE SUB-ASSY, AIR PURIFIER, NO.1

main88905-24030iJZZ30,UZZ30,31199105-199401

main88905-24050iJZZ3#,UZZ3#199401

88912FAN, AIR PURIFIER

main88912-24030iJZZ30,UZZ30,31199105-199401

88919PACKING,AIRPURIFIRE,

main88919-22320×3iJZZ3#,UZZ3#199401

88920APURIFIER ASSY, AIR

main88920-24040iJZZ30,UZZ30,31199105-199401

main88920-24050iJZZ3#,UZZ3#199401

88926FILTER, AIR PURIFIER

main88926-24030iJZZ3#,UZZ3#199401

main88926-24040iJZZ30,UZZ30,31199105-199401

88928ACASE, AIR PURIFIER FILTER

main88928-20130iJZZ3#,UZZ3#199401

main88928-24030iJZZ30,UZZ30,31199105-199401

88930ASWITCH ASSY, AIR PURIFIER

main88930-22140iJZZ30,UZZ30,31199105-199106

main88930-22140-A0iJZZ30,UZZ30,31199106-199401

IVORY,TRIM0#

main88930-22140-B0iJZZ30,UZZ30,31199106-199401

MIDIUM GRAY,TRIM1#

main88930-22140-C0iJZZ3#,UZZ3#199401

BLACK,TRIM2#

main88930-22140-G0iJZZ30,UZZ30,31199106-199401

SPRUCE,TRIM6#

88931SENSOR, SMOKE

main88931-24030iJZZ30,UZZ30,31199105-199401

main88931-24050iJZZ3#,UZZ3#199401

88950AMPLIFIER ASSY, AIR PURIFIER

main88950-24030iJZZ30,UZZ30,31199105-199401

main88950-24050iJZZ3#,UZZ3#199401

9166140616

main91661-40616

9452500600

main94525-00600

14 parts on this diagram · 1 diagram in section
