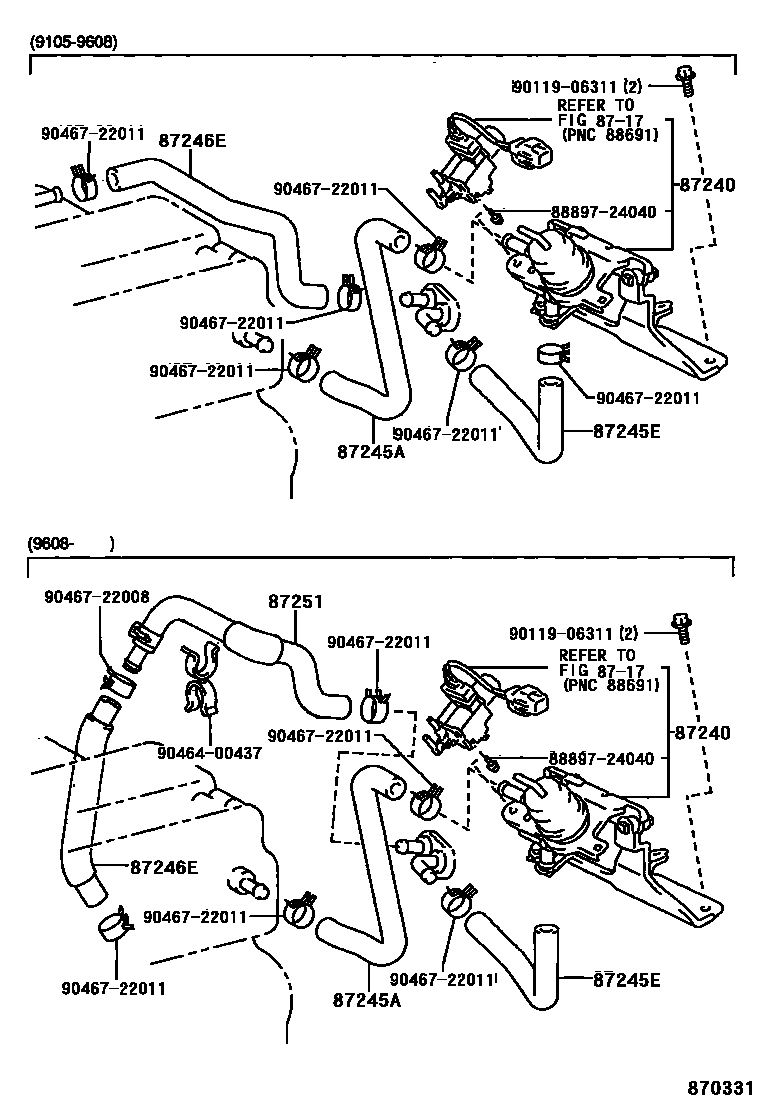

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

8717HEATING & AIR CONDITIONING - VACUUM PIPING

→ Go to FIG 87-17

87240VALVE ASSY, HEATER WATER

main87240-24030iJZZ30,UZZ3#199105

main87240-24050iJZZ31199401

87245AHOSE, HEATER WATER, INLET A

main87245-24200iUZZ3#199105-199505

main87245-24240iJZZ30199105

main87245-24310iJZZ31199401

main87245-24360iUZZ3#199505-199709

87245EHOSE, HEATER WATER, INLET E

main87245-24280iJZZ30,UZZ3#199105

main87245-24350iJZZ31199401

87246EHOSE, HEATER WATER, OUTLET E

main87245-24210iUZZ3#199105-199709

main87245-24250iJZZ30199105-199608

main87245-24320iJZZ31199401-199404

main87245-24321iJZZ31199404-199709

main87245-24390iJZZ30199608

main87245-24420iJZZ31199709

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-24020iUZZ3#199105-199709

main87251-24050iJZZ31199401-199404

main87251-24051iJZZ31199404-199709

main87251-24070iJZZ30199608

main87251-24090iJZZ31199709

8889724040VALVE, COOLER MAGNET

main88897-24040

9011906311

main90119-06311

9046400437

main90464-00437

9046722008

main90467-22008

9046722011

main90467-22011

11 parts on this diagram · 3 diagrams in section
