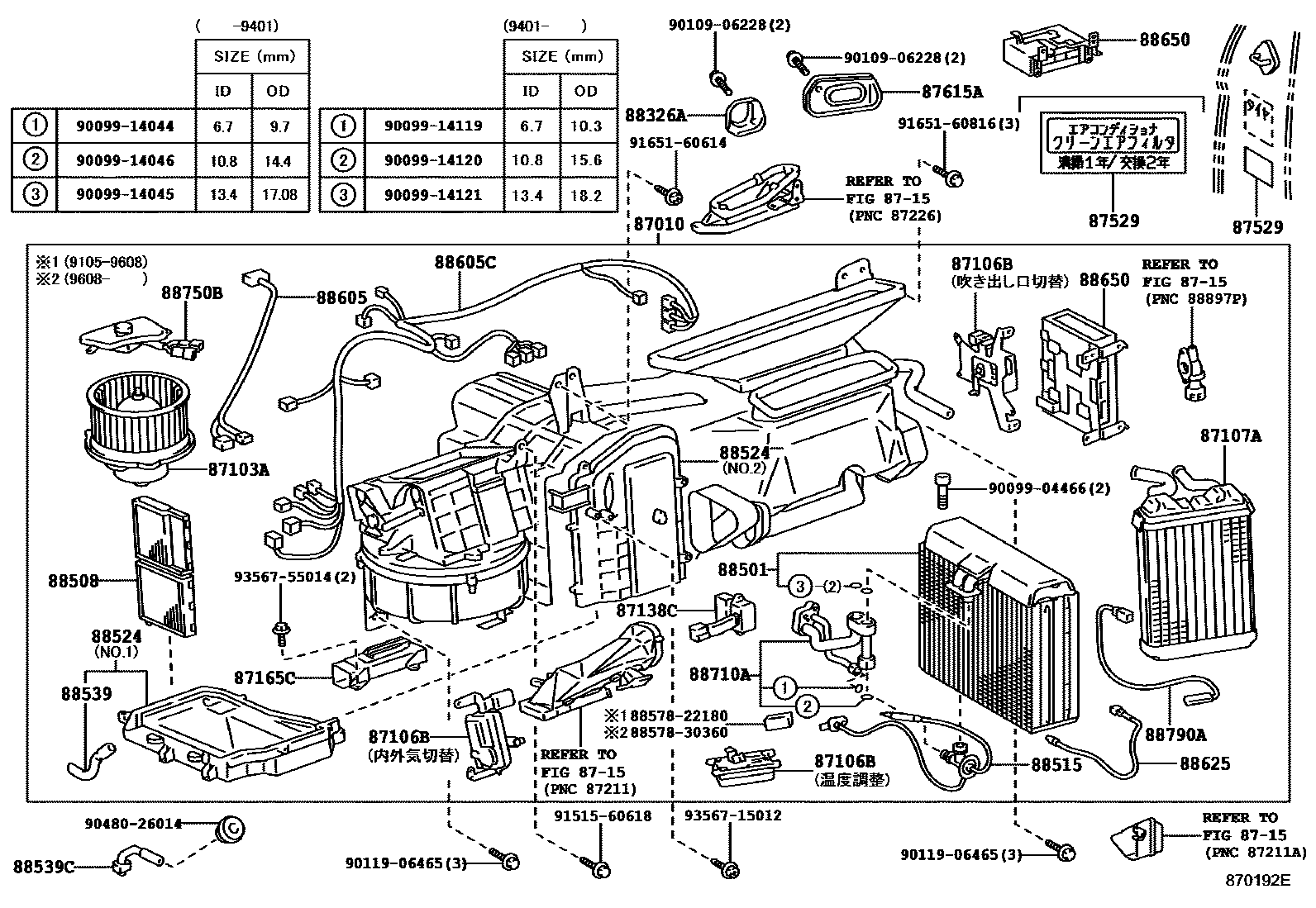

HEATING & AIR CONDITIONING - COOLER UNIT

87010UNIT ASSY, AIR CONDITIONER

main87010-24010iJZZ30,UZZ30,31199105-199205

main87010-24030iUZZ31,32199105-199205

main87010-24040iJZZ30,UZZ30,31199205-199401

main87010-24060iUZZ31,32199205-199401

main87010-24070iUZZ3#199401-199608

main87010-24080iJZZ3#,UZZ31199401-199608

main87010-24110iUZZ31199608

main87010-24120iJZZ3#199608

87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN

main87105-24040iJZZ3#,UZZ3#199105

87106BSERVO SUB-ASSY, DAMPER(FOR COOLING UNIT)

main87106-24070iJZZ3#,UZZ3#199105

main87106-24080iJZZ3#,UZZ3#199105

main87106-24090iJZZ3#,UZZ3#199105

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-24030iJZZ3#,UZZ3#199105-199608

main87107-24050iJZZ3#,UZZ31199608

87138CRESISTOR, BLOWER

main87138-24050iJZZ30,UZZ3#199105-199401

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87165CCONTROL, BLOWER MOTOR

main87165-14010iJZZ3#,UZZ3#199401

87529PLATE, AIR FILTER CAUTION

main87529-24010iJZZ3#,UZZ3#199205-199709

main87529-50020iJZZ3#199709

87615ARETAINER, INSULATOR

main87615-24010iJZZ3#,UZZ3#199105

88326APLATE, COVER

main88326-24010iJZZ3#,UZZ3#199105

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-22220iJZZ3#,UZZ3#199401-199410

main88501-22221iJZZ3#,UZZ3#199410

main88501-24050iJZZ30,UZZ3#199105-199205

main88501-24070iJZZ30,UZZ3#199205-199401

88508FILTER SUB-ASSY, CLEAN AIR

main88508-24010×2iJZZ3#,UZZ3#199105

88515VALVE, COOLER EXPANSION

main88515-24020iJZZ30,UZZ3#199105-199111

main88515-24021iJZZ30,UZZ3#199111-199401

main88515-24031iJZZ3#,UZZ3#199401

88524PANEL, COOLING BOX, BOTTOM

main88524-24010iJZZ30,UZZ3#199105-199112

main88524-24030iJZZ30,UZZ3#199112-199205

main88524-24050iJZZ3#,UZZ3#199401

main88524-24070iJZZ3#,UZZ3#199401

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-24060iJZZ3#,UZZ3#199105

88539CHOSE, COOLER UNIT DRAIN, NO.2

main88539-24080iJZZ3#199107

main88539-24100iUZZ3#199107

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-24190iJZZ30,UZZ30,31199105-199401

main88605-24210iJZZ3#,UZZ3#199401

88605CHARNESS SUB-ASSY, COOLER WIRING, NO.2

main88605-24220iJZZ3#,UZZ31199401-199608

88625THERMISTOR, COOLER, NO.1

main88625-32040iJZZ3#,UZZ3#199105

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-24120iUZZ31,32199105-199205

main88650-24130iUZZ31,32199205-199401

main88650-24140iUZZ3#199401-199608

main88650-24330iUZZ31199608

88710ATUBE ASSY, AIR CONDITIONER

main88710-24140iJZZ3#,UZZ3#199401

88750BTRANSISTOR ASSY, BLOWER RESISTOR

main88750-24040iJZZ30,UZZ3#199105-199401

88790ASENSOR, THERMO

main88790-24140iJZZ3#,UZZ3#199105-199608

main88790-24160iJZZ3#,UZZ31199608

8857822180PAKING, COOLER AIR DUCT

main88578-22180

8857830360PAKING, COOLER AIR DUCT

main88578-30360

9009904466

main90099-04466

9009914044

main90099-14044

9009914045

main90099-14045

9009914046

main90099-14046

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010906228

main90109-06228

9011906465

main90119-06465

9048026014

main90480-26014

9151560618

main91515-60618

9165160614

main91651-60614

9165160816

main91651-60816

9356715012

main93567-15012

9356755014

main93567-55014

40 parts on this diagram · 1 diagram in section
