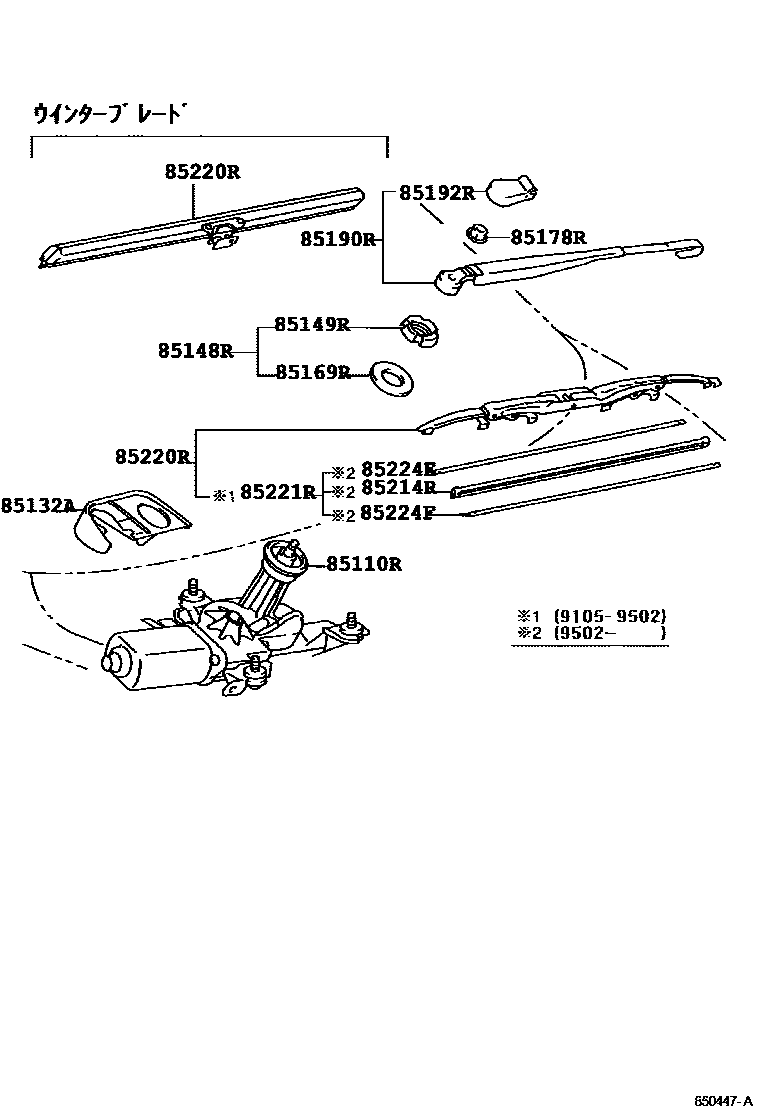

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-24040iJZZ3#,UZZ3#199105

85132ACOVER, REAR WIPER SHAFT

main85132-24040-03iJZZ30,UZZ3#199105-199401

SHADOW GRAY,TRIM1#

main85132-24040-05iJZZ30,UZZ3#199105-199401

GRAIGE,TRIM0#

main85132-24040-07iJZZ30,UZZ3#199105-199401

DARK SPRUCE,TRIM6#

main85132-24040-C0iJZZ3#,UZZ3#199401

BLACK,TRIM2#

main85132-24040-E0iJZZ3#,UZZ3#199401

OAK,TRIM0#

main85132-24040-G0iJZZ3#,UZZ3#199401-199808

DARK SPRUCE,TRIM6#

85148RNUT, W/WASHER PACKING, REAR WIPER LINK PIVOT

main85148-12020iJZZ3#,UZZ3#199105

85149RNUT, WIPER MOTOR

main90179-22013iJZZ3#,UZZ3#199105

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main90210-28002iJZZ3#,UZZ3#199105

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iJZZ3#,UZZ3#199105

85190RARM ASSY, REAR WIPER

main85241-24010iJZZ3#,UZZ3#199105

85192RCOVER, REAR WIPER ARM

main85192-13060iJZZ3#,UZZ3#199105-200012

85214RRUBBER, REAR WIPER

main85214-22360iJZZ3#,UZZ3#199502

85220RBLADE ASSY, REAR WIPER

main85220-1A030iJZZ30,UZZ3#199105-199106

main85242-12010iJZZ3#,UZZ3#199204

main85242-32010iJZZ30,UZZ3#199105-199204

main85291-24040iJZZ30,UZZ3#199106-199401

main85291-33010iJZZ3#,UZZ3#199401

85221RBLADE, REAR WIPER

main85243-32010iJZZ3#,UZZ3#199105-199502

85224EPLATE, REAR WIPER RUBBER BACKING, NO.1

main85224-3H010iJZZ3#,UZZ3#199502

85224FPLATE, REAR WIPER RUBBER BACKING, NO.2

main85224-3H020iJZZ3#,UZZ3#199502

13 parts on this diagram · 1 diagram in section
