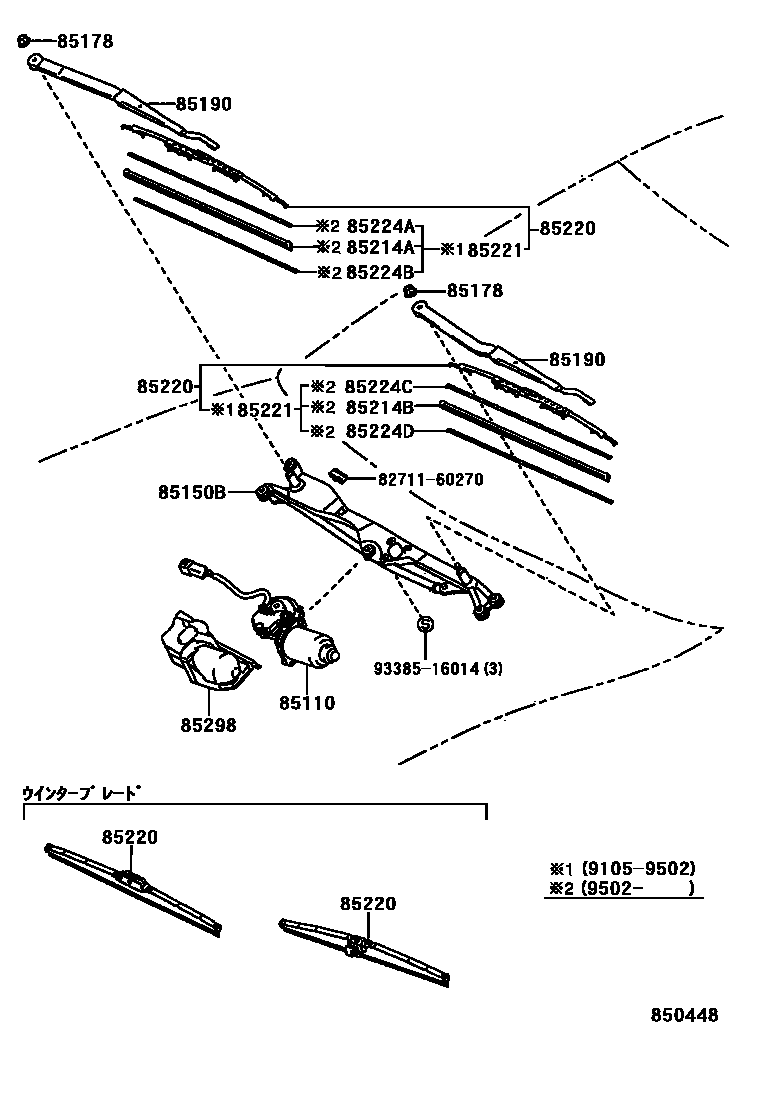

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-24040iJZZ3#,UZZ3#199105

main85110-24070iJZZ3#,UZZ3#199105

85150BLINK ASSY, WIPER

main85150-24040iJZZ3#,UZZ3#199105

main85150-24070iJZZ3#,UZZ3#199105

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08040×2iJZZ3#,UZZ3#199105

85190ARM ASSY, WINDSHIELD WIPER

main85211-24050iJZZ30,UZZ3#199105-199401

main85211-24090iJZZ3#,UZZ3#199401

main85221-24050iJZZ3#,UZZ3#199105

85214ARUBBER, WIPER, RH

main85214-33060iJZZ3#,UZZ3#199502

85214BRUBBER, WIPER, LH

main85214-30250iJZZ3#,UZZ3#199502

85220BLADE ASSY, WINDSHIELD WIPER

main85212-14300iJZZ3#,UZZ3#199401

main85212-24060iJZZ30,UZZ3#199105-199304

main85212-24061iJZZ30,UZZ3#199304-199401

main85222-24060iJZZ30,UZZ3#199105-199304

main85222-24061iJZZ3#,UZZ3#199304

main85291-22050iJZZ3#,UZZ3#199209

main85291-24030iJZZ30,UZZ3#199106-199209

main85291-24050iJZZ30,UZZ3#199106-199401

main85291-24060iJZZ3#,UZZ3#199401

85221BLADE, WINDSHIELD WIPER

main85213-20310iJZZ3#,UZZ3#199302-199502

main85213-32080iJZZ30,UZZ3#199105-199112

main85213-32240iJZZ30,UZZ3#199112-199302

main85223-24050iJZZ30,UZZ3#199105-199304

main85223-24051iJZZ3#,UZZ3#199304-199502

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-33050iJZZ3#,UZZ3#199502

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-33050iJZZ3#,UZZ3#199502

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-24080iJZZ3#,UZZ3#199502

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-24070iJZZ3#,UZZ3#199502

85298COVER, WIPER MOTOR

main85111-24040iJZZ3#,UZZ3#199105

8271160270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60270

9338516014

main93385-16014

15 parts on this diagram · 2 diagrams in section
