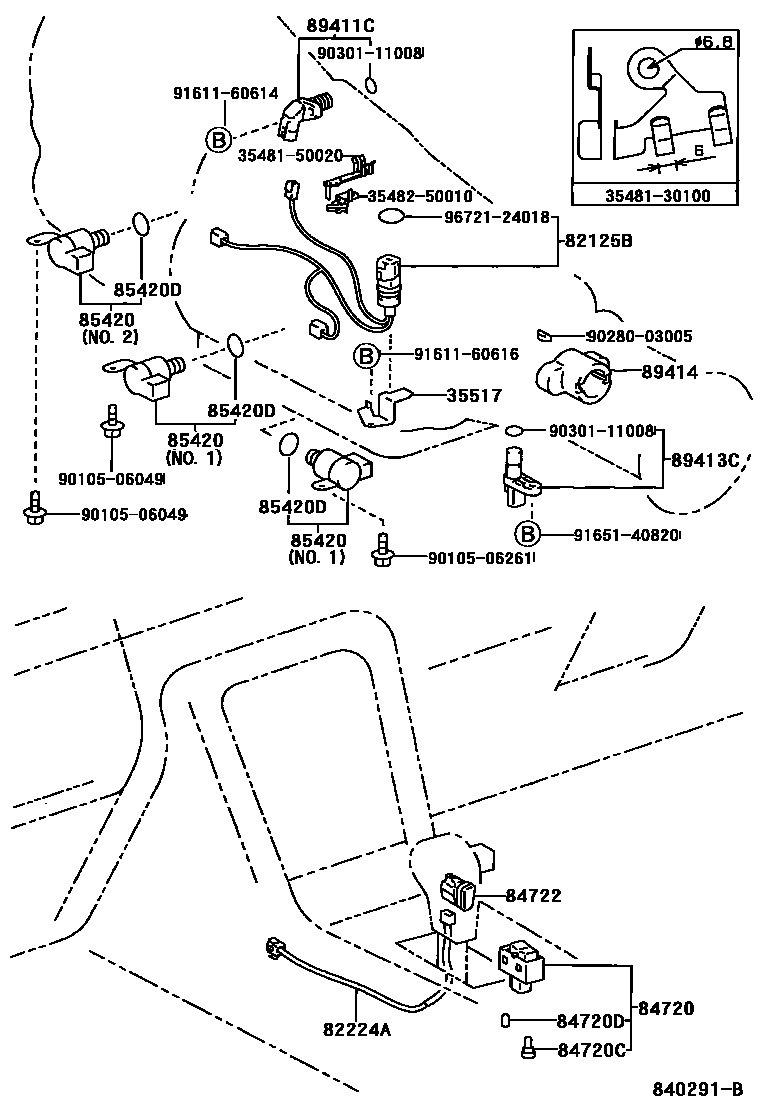

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

35517PLATE, TRANSMISSION WIRE LOCK

main35517-30010iJZZ30..ATM199401

main35517-50010iJZZ30,UZZ3#..ATM199105-199401

82125BWIRE, TRANSMISSION

main82125-24070iJZZ30..ATM199608

main82125-30400iJZZ3#..ATM199502-199608

main82125-35120iJZZ3#..ATM199105-199502

main82125-40050iJZZ31199709

main82125-50010iUZZ3#199105-199401

main82125-50030iUZZ3#199401-199709

82224AWIRE, OVERDRIVE

main82224-24010iJZZ3#,UZZ3#..ATM199105

84720SWITCH ASSY, PATTERN SELECT

main84720-24040iJZZ3#,UZZ3#..ATM199105

84720CBULB(FOR PATTERN SELECT SWITCH)

main84999-10490×2iJZZ3#,UZZ3#..ATM199105

84720DCAP, PATTERN SELECT SWITCH

main84998-10440×2iJZZ3#,UZZ3#..ATM199105

84722SWITCH, TRANSMISSION CONTROL

main84722-24040-03iJZZ30,UZZ3#..ATM199105-199401

SHADOW GRAY,TRIM1#

main84722-24040-05iJZZ30,UZZ3#..ATM199105-199401

GRAIGE,TRIM0#

main84722-24040-07iJZZ30,UZZ3#..ATM199105-199401

DARK SPRUCE,TRIM6#

main84722-24041-C1iJZZ3#,UZZ3#..ATM199401

BLACK,TRIM2#

main84722-24041-E1iJZZ3#,UZZ3#..ATM199401

OAK,TRIM0#

main84722-24041-G1iJZZ3#,UZZ3#..ATM199401-199808

SPRUCE GRAY,TRIM6#

85420SOLENOID ASSY, TRANSMISSION

main85420-22080×2iJZZ3#..ATM199105-199502

main85420-22150iJZZ30..ATM199809

main85420-22170iJZZ30..ATM199809

main85420-24010iJZZ30..ATM199608-199809

main85420-24020iJZZ30..ATM199608-199809

main85420-24030iJZZ30..ATM199608-199809

main85420-24040iJZZ30..ATM199608-199809

main85420-30110iJZZ3#..ATM199105-199502

main85420-30200×2iJZZ31199608-199709

main85420-30220iJZZ31199608-199709

main85420-50020×2iUZZ3#199105-199709

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iJZZ3#..ATM; UZZ3#199206-199608

89411CSENSOR, SPEED

main89411-50010iJZZ30..ATM; UZZ3#199105-199608

89413CSENSOR,SPEED

main89413-24010iJZZ3#..ATM199105-199608

89414ROTOR, SENSOR

main89414-22010iJZZ3#..ATM199105-199608

main89414-30040iJZZ30..ATM199608-199709

3548130100BODY, GOVERNOR

main35481-30100

3548150020BODY, GOVERNOR

main35481-50020

3548250010VALVE, GOVERNOR

main35482-50010

9010506049

main90105-06049

9010506261

main90105-06261

9028003005

main90280-03005

9030111008

main90301-11008

9161160614

main91611-60614

9161160616

main91611-60616

9165140820

main91651-40820

9672124018

main96721-24018

23 parts on this diagram · 2 diagrams in section
