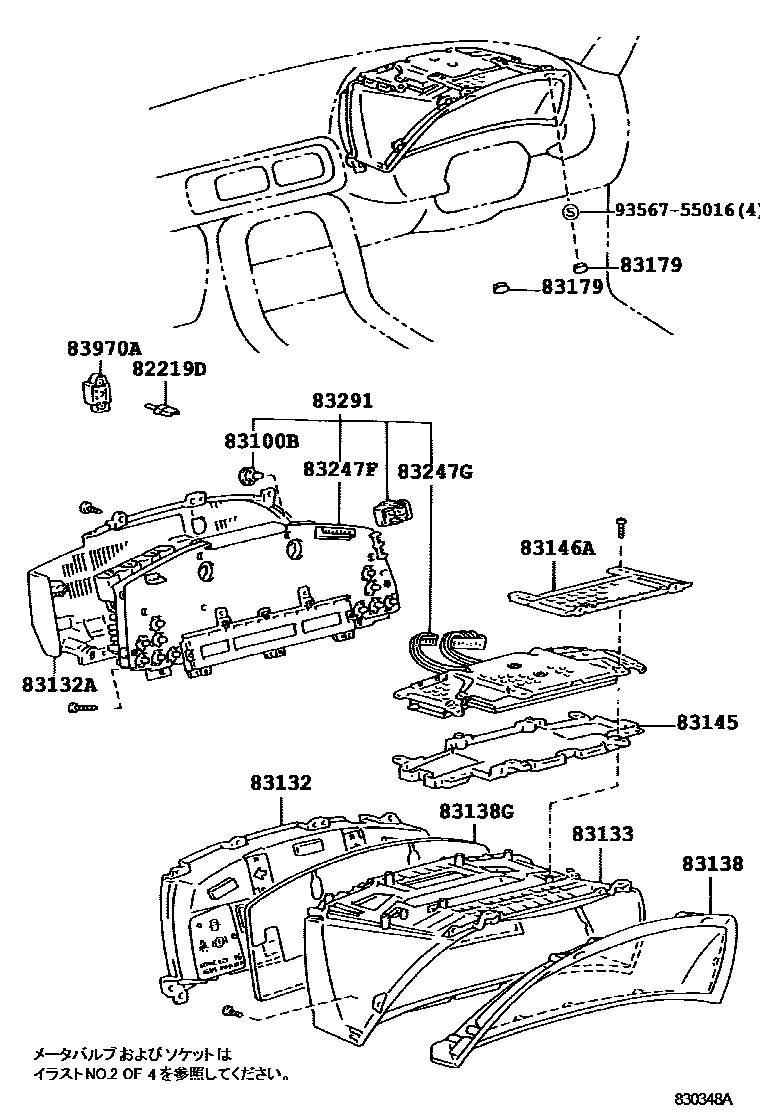

Toyota SOARER — METER
82219DWIRE, SENSOR
83100BBULB, COMBINATION METER, NO.1
83132CASE, COMBINATION METER
83132ACASE, METER
83138GGLASS, COMBINATION METER
83145LENS, METER, NO.1
83146ACOVER, SPEEDMETER
83179COVER, COMBINATION METER, HOLE
83247FPLATE, METER CIRCUIT, NO.1 (FOR COMPUTER)
83247GPLATE, METER CIRCUIT, NO.2 (FOR COMPUTER)
83291COMPUTER, COMBINATION METER
83970AALARM ASSY, SPEED
9356755016
15 parts on this diagram · 7 diagrams in section
METER for Toyota SOARER
This section contains 36 genuine Toyota parts for the METER system of the Toyota SOARER. Key components include: WIRE, SENSOR, BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, CASE, COMBINATION METER, CASE, METER.
