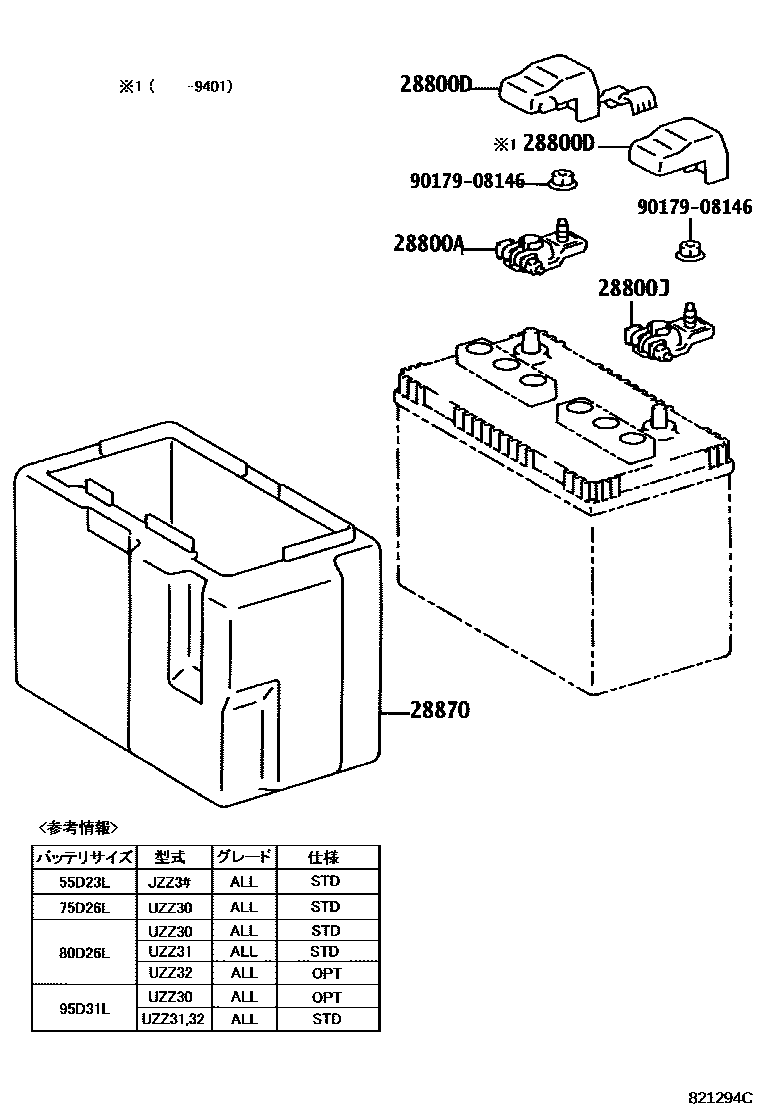

BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05030i1JZGTE,1UZFE..JZZ30,UZZ3#199105-199401

main90982-05037i1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3#199401

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-24060i1JZGTE..JZZ30; 1UZFE..UZZ3#199105-199401

main82821-24070i1JZGTE,1UZFE..JZZ30,UZZ3#199105-199401

main82821-50050i1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3#199401

28800JTERMINAL, BATTERY NEGATIVE

main90982-06022i1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3#199105

28870INSULATOR ASSY, BATTERY

main28870-50020i1JZGTE,1UZFE..JZZ30,UZZ30199105-199401

main28870-50030i1UZFE..UZZ3#199105-199505

main28870-50050i1JZGTE,2JZGE..JZZ3#199401

9017908146

main90179-08146

5 parts on this diagram · 1 diagram in section
