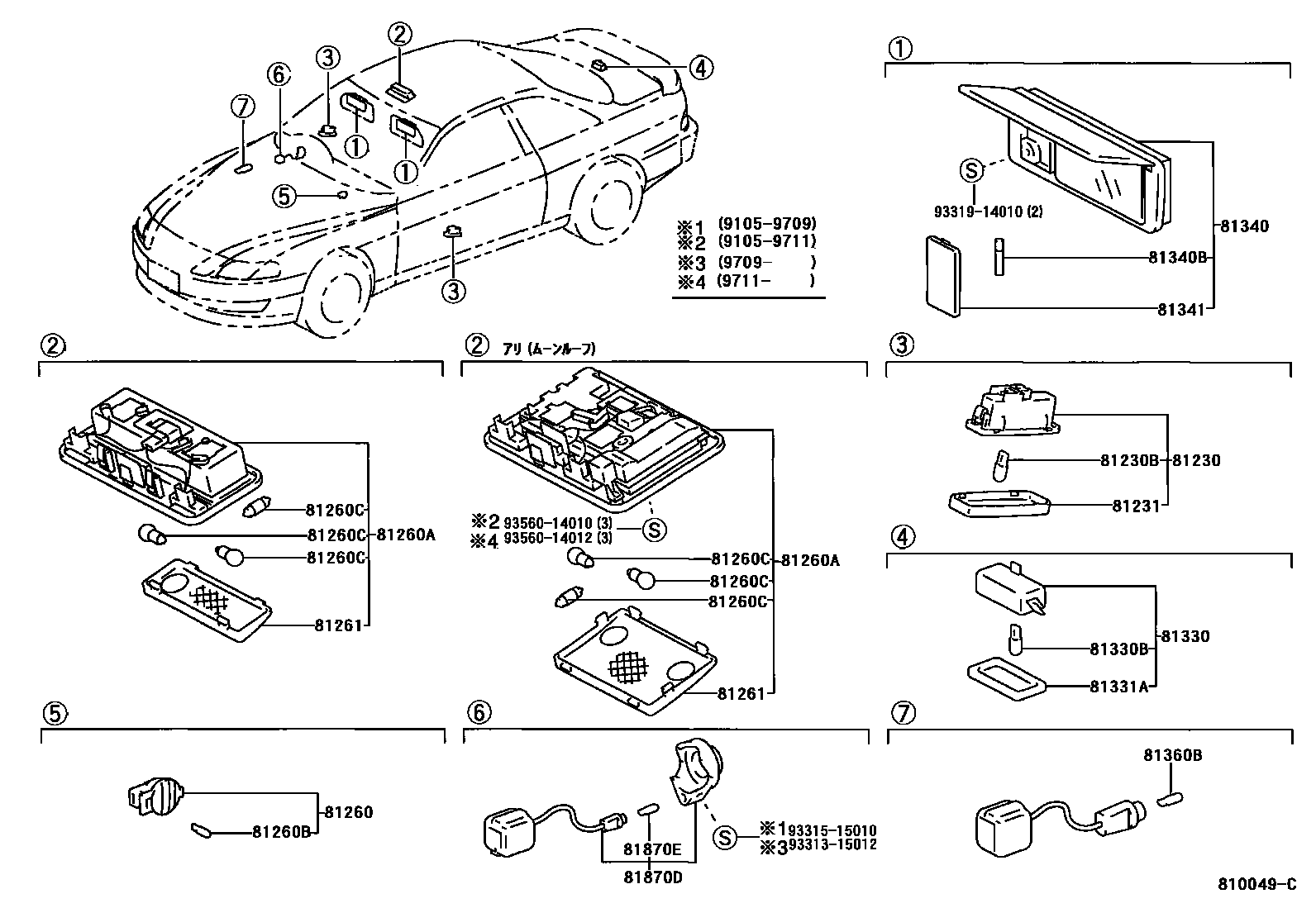

INTERIOR LAMP

81230LAMP ASSY, COURTESY

main81230-24020×2iJZZ3#,UZZ3#199105

81230BBULB(FOR COURTESY LAMP)

main99132-12050×2iJZZ3#,UZZ3#199105

81231LENS, COURTESY LAMP

main81231-24020×2iJZZ3#,UZZ3#199105-199608

81260LAMP ASSY, GLOVE BOX

main81260-33010iJZZ3#,UZZ3#199105

81260ALAMP ASSY, MAP

main81260-24040-03iJZZ30,UZZ3#199105-199401

MIDIUM GRAY,TRIM1#

main81260-24040-07iJZZ30,UZZ3#199105-199401

SPRUCE,TRIM6#

main81260-24040-08iJZZ30,UZZ3#199105-199401

IVORY,TRIM0#

main81260-24040-A2iJZZ3#,UZZ3#199401

IVORY,TRIM0#

main81260-24040-B0iJZZ3#,UZZ3#199401-199808

MD. GRAY,TRIM2#

main81260-24040-B1iJZZ3#199808

SHADOW GRAY,TRIM2#

main81260-24040-G0iJZZ3#,UZZ3#199401-199808

LI. SPRUCE,TRIM6#

main81260-24050-03iJZZ30,UZZ3#199105-199401

main81260-24050-07iJZZ30,UZZ3#199105-199401

main81260-24050-08iJZZ30,UZZ3#199105-199401

main81260-24050-A2iJZZ3#,UZZ3#199401

main81260-24050-B0iJZZ3#,UZZ3#199401-199808

main81260-24050-B1iJZZ3#199808

main81260-24050-G0iJZZ3#,UZZ3#199401-199808

81260BBULB(FOR GLOVE BOX)

main90981-11018iJZZ3#,UZZ3#199105

81260CBULB(FOR MAP LAMP)

main90981-12020×2iJZZ30,UZZ3#..ATM;JZZ30..MTM..GTTL199105-199401

main90981-14004iJZZ3#,UZZ3#199401

81261LENS AND COVER, MAP LAMP

main81261-24040iJZZ3#,UZZ3#199105

main81261-24050iJZZ3#,UZZ3#199105

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-50010iJZZ3#,UZZ3#199105

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iJZZ3#,UZZ3#199105

81331ACOVER, LUGGAGE COMPARTMENT LAMP

main81331-50010iJZZ3#,UZZ3#199105

81340LAMP ASSY, VANITY

main81340-24030-03iUZZ31,32199105-199401

main81340-24030-07iUZZ31,32199105-199110

main81340-24030-08iUZZ31,32199105-199110

main81340-24030-A0iUZZ31,32199110-199709

main81340-24030-B1iUZZ3#199401-199709

main81340-24030-G0iUZZ31,32199110-199709

main81350-24010-03iUZZ31,32199105-199401

main81350-24010-07iUZZ31,32199105-199210

main81350-24010-08iUZZ31,32199105-199210

main81350-24010-10iUZZ3#199401-199709

main81350-24010-A0iUZZ31,32199210-199709

main81350-24010-G0iUZZ31,32199210-199709

81340BBULB (FOR VANITY LAMP)

main90981-14007×2iUZZ31,32199105-199709

81341LENS, VANITY LAMP

main81341-50010×2iUZZ31,32199105-199709

81360BBULB, STEP OR SPOT LAMP

main90981-11018iJZZ3#,UZZ3#199401

81870DLAMP ASSY, KEY CYLINDER

main81870-24020iJZZ3#,UZZ3#199105

81870EBULB, KEY CYLINDER LAMP

main90981-11014iJZZ3#,UZZ3#199105

9331315012

main93313-15012

9331515010

main93315-15010

9331914010

main93319-14010

9356014010

main93560-14010

9356014012

main93560-14012

22 parts on this diagram · 1 diagram in section
