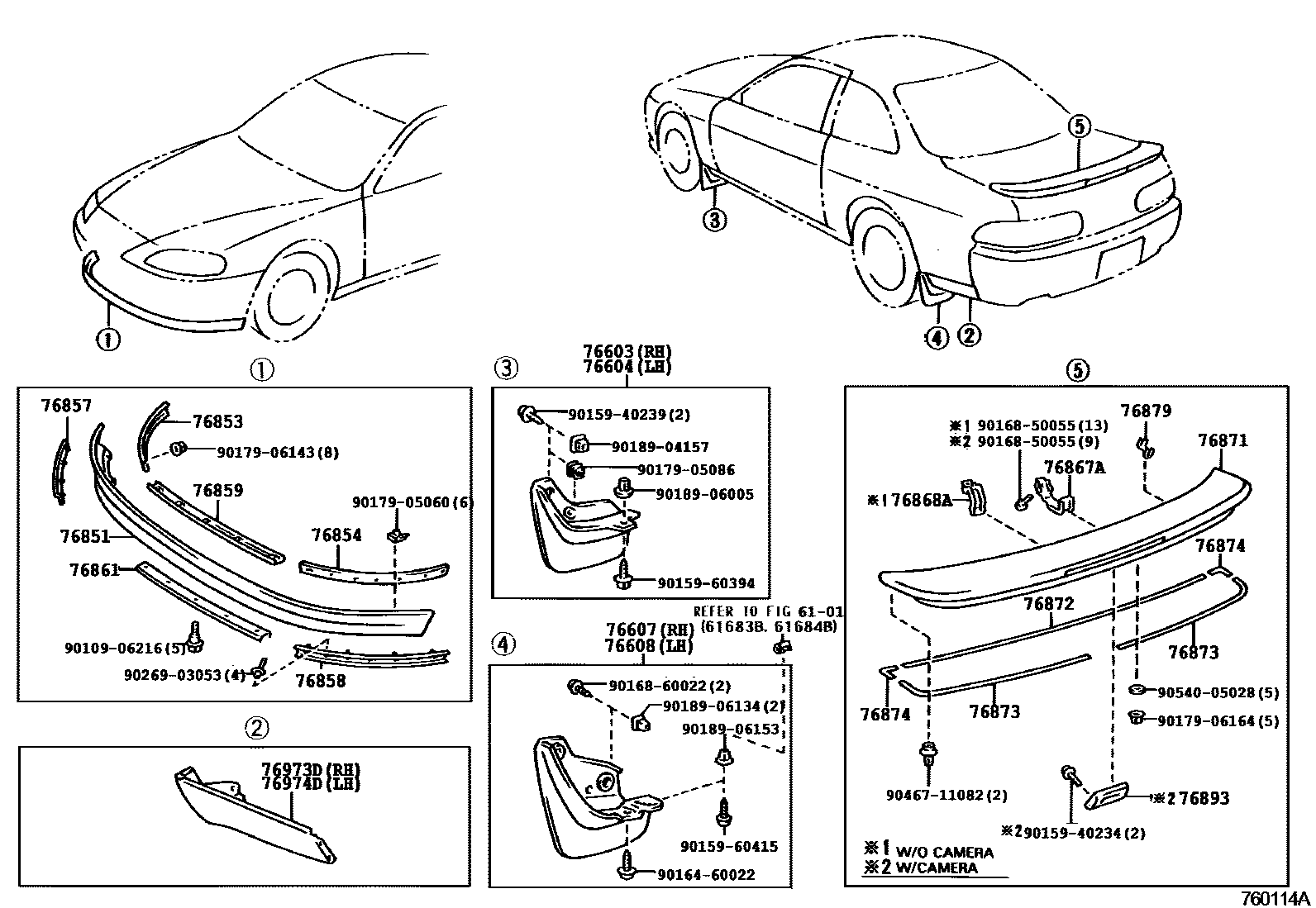

MUDGUARD & SPOILER
6101SIDE MEMBER
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76851COVER, FRONT SPOILER
76853RETAINER, FRONT SPOILER, UPPER RH
76854RETAINER, FRONT SPOILER, UPPER LH
76857RETAINER, FRONT SPOILER SIDE, RH
76858RETAINER, FRONT SPOILER SIDE, LH
76859RETAINER, FRONT SPOILER, UPPER NO.3
76861RETAINER, FRONT SPOILER, LOWER NO.1
76867ARETAINER, REAR SPOILER, NO.3
76868ARETAINER, REAR SPOILER, NO.4
76871SPOILER, REAR
76872PROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
76874PROTECTOR, REAR SPOILER, NO.3
76879CLIP, REAR SPOILER, NO.1
76893COVER, REAR SPOILER, NO.1
76973DCOVER, REAR UNDER SIDE, RH
RED MICA,3K3
SUPER SILVER 3 M,176
DARK BLUE MCFP,8J5
BEIGE M,4K9
BLUISH GREEN MIO,6M2
SUPER WHITE PEARL M,051
GRAYISH GREEN M,6M3
SUPER WHITE PEARL M,051
SUPER SILVER 3 M,176
BLUISH SILVER ME,1A0
BLACK,202
RED MICA,3K3
SUPER RED 4,3L2
WINE RED MC.,TRIM0#&3L4
BEIGE M,4K9
BLUISH GREEN MIO,6M2
GRAYISH GREEN M,6M3
MI.GR.GREEN MCGR,6N1
DARK BLUE MCFP,8J5
SU.WHITE PM,051
WHITE PM.,057
BLUISH SILVER ME.,1A0
SILVER ME.,1C0
BLACK,202
SUPER RED 4,3L2
WINE RED MC.,3L4
ROSE RED MC.,3M9
RED MC,3N1
DK.GREEN M.M.,6P2
DK. GREEN MC.,6Q7
BLUE M.M.,8L5
76974DCOVER, REAR UNDER SIDE, LH
RED MICA,3K3
SUPER SILVER 3 M,176
DARK BLUE MCFP,8J5
BEIGE M,4K9
BLUISH GREEN MIO,6M2
SUPER WHITE PEARL M,051
GRAYISH GREEN M,6M3
SUPER WHITE PEARL M,051
SUPER SILVER 3 M,176
BLUISH SILVER ME,1A0
BLACK,202
RED MICA,3K3
SUPER RED 4,3L2
WINE RED MC.,TRIM0#&3L4
BEIGE M,4K9
BLUISH GREEN MIO,6M2
GRAYISH GREEN M,6M3
MI.GR GREEN MCGR,6N1
DARK BLUE MCFP,8J5
SU.WHITE PM,051
WHITE PM.,057
BLUISH SILVER ME.,1A0
SILVER ME.,1C0
BLACK,202
SUPER RED 4,3L2
WINE RED MC.,3L4
ROSE RED MC.,3M9
RED MC,3N1
DK.GREEN M.M.,6P2
DK. GREEN MC.,6Q7
BLUE M.M.,8L5
9010906216
main90109-06216
9015940234
main90159-40234
9015940239
main90159-40239
9015960394
main90159-60394
9015960415
main90159-60415
9016460022
main90164-60022
9016850055
main90168-50055
9016860022
main90168-60022
9017905060
main90179-05060
9017905086
main90179-05086
9017906143
main90179-06143
9017906164
main90179-06164
9018904157
main90189-04157
9018906005
main90189-06005
9018906134
main90189-06134
9018906153
main90189-06153
9026903053
main90269-03053
9046711082
main90467-11082
9054005028
main90540-05028
41 parts on this diagram · 2 diagrams in section
