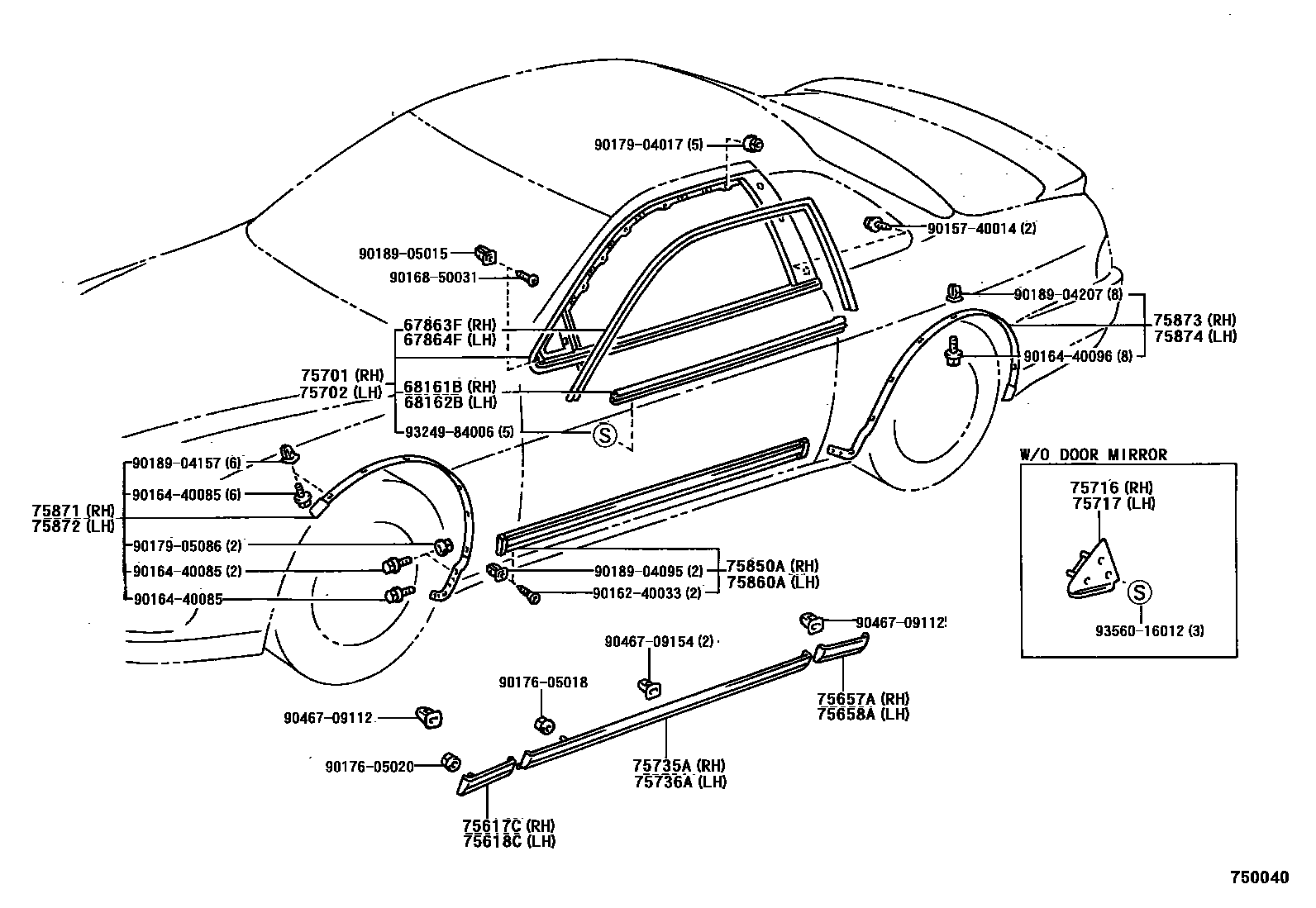

SIDE MOULDING
67863FWEATHERSTRIP, FRONT DOOR, NO.2 RH
67864FWEATHERSTRIP, FRONT DOOR, NO.2 LH
68161BWEATHERSTRIP, FRONT DOOR GLASS, OUTER RH
68162BWEATHERSTRIP, FRONT DOOR GLASS, OUTER LH
75617CMOULDING, FRONT FENDER, LOWER REAR RH
BLACK,6M2 ,8J5
BLACK,202; BLACK,TRIM06&202
RED MICA,3K3
SUPER SILVER 3 M,176
DARK BLUE MCFP,8J5; DARK BLUE MCFP,TRIM06&8J5
BEIGE MICA,4K9
BLUISH GREEN MIO,6M2; BLUISH GREEN MIO,TRIM0#&6M2
SUPER WHITE PEARL M,051
GRAYISH GREEN M,6M3
BLUISH SILVER ME,1A0
SUPER RED 4,3L2
WINE RED MC.,3L4
MI.GR.GREEN MCGR,6N1
75618CMOULDING, FRONT FENDER, LOWER REAR LH
BLACK,6M2 ,8J5
BLACK,202; BLACK,TRIM06&202
RED MICA,3K3
SUPER SILVER 3 M,176
DARK BLUE MCFP,8J5; DARK BLUE MCFP,TRIM06&8J5
BEIGE MICA,4K9
BLUISH GREEN MIO,6M2; BLUISH GREEN MIO,TRIM0#&6M2
SUPER WHITE PEARL M,051
GRAYISH GREEN M,6M3
BLUISH SILVER ME,1A0
SUPER RED 4,3L2
WINE RED MC.,3L4
MI.GR.GREEN MCGR,6N1
75657AMOULDING, QUARTER PANEL, LOWER REAR RH
BLACK,6M2 ,8J5
RED MICA,3K3
SUPER SILVER 3 M,176
DARK BLUE MCFP,8J5; DARK BLUE MCFP,TRIM06&8J5
BEIGE MICA,4K9
BLUISH GREEN MIO,6M2; BLUISH GREEN MIO,TRIM0#&6M2
SUPER WHITE PEARL M,051
GRAYISH GREEN M,6M3
BLUISH SILVER ME,1A0
SUPER RED 4,3L2
WINE RED MC.,3L4
MI.GR.GREEN MCGR,6N1
75658AMOULDING, QUARTER PANEL, LOWER REAR LH
BLACK,6M2 ,8J5
BLACK,202; BLACK,TRIM06&202
RED MICA,3K3
SUPER SILVER 3 M,176
DARK BLUE MCFP,8J5; DARK BLUE MCFP,TRIM06&8J5
BEIGE MICA,4K9
BLUISH GREEN MIO,6M2; BLUISH GREEN MIO,TRIM0#&6M2
SUPER WHITE PEARL M,051
GRAYISH GREEN M,6M3
BLUISH SILVER ME,1A0
SUPER RED 4,3L2
WINE RED MC.,3L4
MI.GR.GREEN MCGR,6N1
75701MOULDING SUB-ASSY, FRONT DOOR BELT, RH
75702MOULDING SUB-ASSY, FRONT DOOR BELT, LH
75716COVER, FRONT DOOR BELT MOULDING END, FRONT RH
75717COVER, FRONT DOOR BELT MOULDING END, FRONT LH
75735AMOULDING, FRONT DOOR OUTSIDE, LOWER RH
BLACK,202
RED MICA,3K3
SUPER SILVER 3 M,176
DARK BLUE MCFP,8J5
BEIGE MICA,4K9
BLUISH GREEN MIO,6M2
SUPER WHITE PEARL M,051
GRAYISH GREEN M,6M3
BLUISH SILVER ME,1A0
SUPER RED 4,3L2
WINE RED MC.,3L4
MI.GR.GREEN MCGR,6N1
SU.WHITE PM,051
WHITE PM.,057
BLUISH SILVER ME.,1A0
SILVER ME.,1C0
BLACK,202
SUPER RED 4,3L2
WINE RED MC.,3L4
ROSE RED MC.,3M9
RED MC,3N1
DK.GREEN M.M.,6P2
DK. GREEN MC.,6Q7
BLUE M.M.,8L5
75736AMOULDING, FRONT DOOR OUTSIDE, LOWER LH
BLACK,202; BLACK,TRIM06&202
RED MICA,3K3
SUPER SILVER 3 M,176
DARK BLUE MCFP,8J5; DARK BLUE MCFP,TRIM06&8J5
BEIGE MICA,4K9
BLUISH GREEN MIO,6M2
SUPER WHITE PEARL M,051
GRAYISH GREEN M,6M3
BLUISH SILVER ME,1A0
SUPER RED 4,3L2
WINE RED MC.,3L4
MI.GR.GREEN MCGR,6N1
SU.WHITE PM,051
WHITE PM.,057
BLUISH SILVER ME.,1A0
SILVER ME.,1C0
BLACK,202
SUPER RED 4,3L2
WINE RED MC.,3L4
ROSE RED MC.,3M9
RED MC,3N1
DK.GREEN M.M.,6P2
DK. GREEN MC.,6Q7
BLUE M.M.,8L5
75850AMOULDING ASSY, BODY ROCKER PANEL, RH
75860AMOULDING ASSY, BODY ROCKER PANEL, LH
75871MOULDING, FRONT FENDER WHEEL OPENING, RH
75872MOULDING, FRONT FENDER WHEEL OPENING, LH
75873MOULDING, QUARTER PANEL WHEEL OPENING, RH
75874MOULDING, QUARTER PANEL WHEEL OPENING, LH
9015740014
main90157-40014
9016240033
main90162-40033
9016440085
main90164-40085
9016440096
main90164-40096
9016850031
main90168-50031
9017605018
main90176-05018
9017605020
main90176-05020
9017904017
main90179-04017
9017905086
main90179-05086
9018904095
main90189-04095
9018904157
main90189-04157
9018904207
main90189-04207
9018905015
main90189-05015
9046709112
main90467-09112
9046709154
main90467-09154
9324984006
main93249-84006
9356016012
main93560-16012
37 parts on this diagram · 2 diagrams in section
