SEAT BELT & CHILD RESTRAINT SEAT

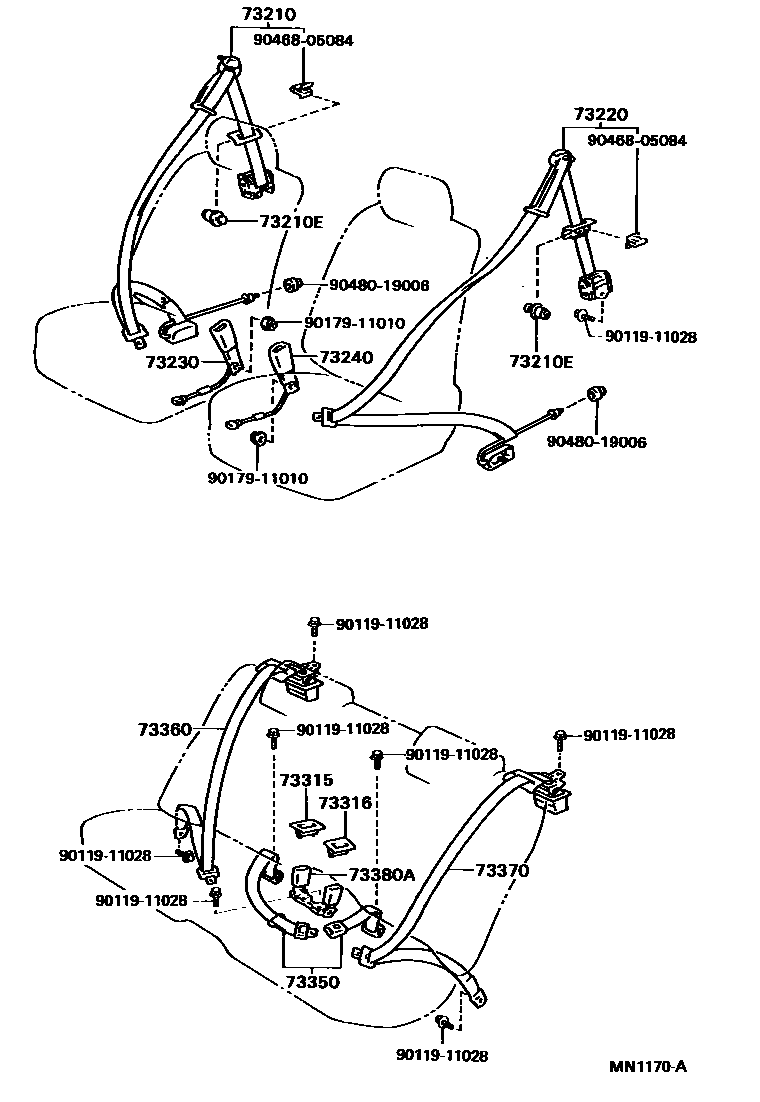

Parts diagram
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-24080-03i199105-199205
SHADOW GRAY,TRIM1#
main73210-24080-05i199105-199205
GREIGE,TRIM0#
main73210-24080-07i199105-199205
DARK SPRUCE,TRIM6#
main73210-24081-B0i199205-199302
SHADOW GRAY,TRIM1#
main73210-24081-E0i199205-199302
GREIGE,TRIM0#
main73210-24081-G0i199205-199302
DARK SPRUCE,TRIM6#
main73210-24082-B0i199302-199308
SHADOW GRAY,TRIM1#
main73210-24082-E0i199302-199308
GREIGE,TRIM0#
main73210-24082-G0i199302-199308
DARK SPRUCE,TRIM6#
main73210-24083-B1i199308-199401
SHADOW GRAY,TRIM1#
main73210-24083-E3i199308-199401
GREIGE,TRIM0#
main73210-24083-G2i199308-199401
DK. SPRUCE,TRIM6#
main73210-24084-C0i199401-199505
BLACK,TRIM2#
main73210-24084-E1i199401-199505
IVORY,TRIM0#
main73210-24084-G1i199401-199505
LI. SPRUCE,TRIM6#
73210ECLIP (FOR FRONT SEAT OUTER BELT)
main90467-07030-07×2i199105-199401
SPRUCE,TRIM6#
main90467-07030-08×2i199105-199401
IVORY,TRIM0#
main90467-07030-43×2i199105-199401
MEDIUM GRAY,TRIM1#
main90467-07030-A2×2i199401
IVORY,TRIM0#
main90467-07030-C0×2i199401
BLACK,TRIM2#
main90467-07030-G0×2i199401-199808
LI. SPRUCE,TRIM6#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-24070-03i199105-199205
SHADOW GRAY,TRIM1#
main73220-24070-05i199105-199205
GREIGE,TRIM0#
main73220-24070-07i199105-199205
DARK SPRUCE,TRIM6#
main73220-24071-B0i199205-199302
SHADOW GRAY,TRIM1#
main73220-24071-E0i199205-199302
GREIGE,TRIM0#
main73220-24071-G0i199205-199302
DARK SPRUCE,TRIM6#
main73220-24072-B0i199302-199308
SHADOW GRAY,TRIM1#
main73220-24072-E0i199302-199308
GREIGE,TRIM0#
main73220-24072-G0i199302-199308
DARK SPRUCE,TRIM6#
main73220-24073-B1i199308-199401
SHADOW GRAY,TRIM1#
main73220-24073-E3i199308-199401
GREIGE,TRIM0#
main73220-24073-G2i199308-199401
DK. SPRUCE,TRIM6#
main73220-24074-C0i199401-199505
BLACK,TRIM2#
main73220-24074-E1i199401-199505
IVORY,TRIM0#
main73220-24074-G1i199401-199505
LI. SPRUCE,TRIM6#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-24140-03i199105-199308
SHADOW GRAY,TRIM1#
main73230-24140-05i199105-199308
GREIGE,TRIM0#
main73230-24140-07i199105-199308
DARK SPRUCE,TRIM6#
main73230-24141-B0i199308-199401
SHADOW GRAY,TRIM1#
main73230-24141-E0i199308-199401
GREIGE,TRIM0#
main73230-24141-G0i199308-199401
DK. SPRUCE,TRIM6#
main73230-24160-03i199105-199308
SHADOW GRAY,TRIM1#
main73230-24160-05i199105-199308
GREIGE,TRIM0#
main73230-24160-07i199105-199308
DARK SPRUCE,TRIM6#
main73230-24170-C0i199401-199608
BLACK,TRIM2#
main73230-24170-E0i199401-199608
OAK,TRIM0#
main73230-24170-G0i199401-199608
SPRUCE GRAY,TRIM6#
main73230-24180-C0i199401-199709
BLACK,TRIM2#
main73230-24180-E0i199401-199709
OAK,TRIM0#
main73230-24180-E1i199808
main73230-24180-G0i199608-199808
main73230-24190-B0i199308-199401
SHADOW GRAY,TRIM1#
main73230-24190-E1i199308-199401
GREIGE,TRIM0#
main73230-24190-G1i199308-199401
DK. SPRUCE,TRIM6#
main73230-24200-C0i199608
BLACK,TRIM2#
main73230-24200-E0i199608-199808
OAK,TRIM0#
main73230-24200-E1i199808
SANDAL WOOD,TRIM0#
main73230-24200-G0i199608-199808
DK.SPRUCE GRAY,TRIM6#
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-24030-03i199105-199308
SHADOW GRAY,TRIM1#
main73240-24030-05i199105-199308
GREIGE,TRIM0#
main73240-24030-07i199105-199308
DARK SPRUCE,TRIM6#
main73240-24060-03i199105-199308
SHADOW GRAY,TRIM1#
main73240-24060-05i199105-199308
GREIGE,TRIM0#
main73240-24060-07i199105-199308
DARK SPRUCE,TRIM6#
main73240-24070-C0i199608
BLACK,TRIM2#
main73240-24070-E0i199608-199808
OAK,TRIM0#
main73240-24070-E1i199808
SANDAL WOOD,TRIM0#
main73240-24070-G0i199608-199808
DK.SPRUCE GRAY,TRIM6#
main73240-24080-B0i199308-199401
SHADOW GRAY,TRIM1#
main73240-24080-C0i199401-199608
BLACK,TRIM2#
main73240-24080-E0i199401-199608
OAK,TRIM0#
main73240-24080-E1i199308-199401
GREIGE,TRIM0#
main73240-24080-G0i199401-199608
SPRUCE GRAY,TRIM6#
main73240-24080-G1i199308-199401
DK. SPRUCE,TRIM6#
main73240-24090-B0i199308-199401
SHADOW GRAY,TRIM1#
main73240-24090-C0i199401-199709
BLACK,TRIM2#
main73240-24090-E0i199608-199808
main73240-24090-E1i199308-199401
GREIGE,TRIM0#
main73240-24090-E3i199808
main73240-24090-G0i199608-199808
main73240-24090-G1i199308-199401
DK. SPRUCE,TRIM6#
73315COVER, RR SEAT BELT, INNER RH
main73315-24010-03i199105-199401
MEDIUM GRAY,TRIM1#
main73315-24010-07i199105-199401
SPRUCE,TRIM6#
main73315-24010-08i199105-199401
IVORY,TRIM0#
main73315-24011-A2i199401-200012
IVORY,TRIM0#
main73315-24011-C0i199401-200012
BLACK,TRIM2#
main73315-24011-G0i199401-199808
LI. SPRUCE,TRIM6#
73316COVER, RR SEAT BELT, INNER LH
main73316-24010-03i199105-199401
MEDIUM GRAY,TRIM1#
main73316-24010-07i199105-199401
SPRUCE,TRIM6#
main73316-24010-08i199105-199401
IVORY,TRIM0#
main73316-24011-A2i199401
IVORY,TRIM0#
main73316-24011-C0i199401
BLACK,TRIM2#
main73316-24011-G0i199401-199808
LI. SPRUCE,TRIM6#
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
main73350-24030-03i199105-199205
SHADOW GRAY,TRIM1#
main73350-24030-05i199105-199205
GREIGE,TRIM0#
main73350-24030-07i199105-199205
DARK SPRUCE,TRIM6#
main73350-24031-B0i199205-199308
SHADOW GRAY,TRIM1#
main73350-24031-E0i199205-199308
GREIGE,TRIM0#
main73350-24031-G0i199205-199308
DARK SPRUCE,TRIM6#
main73350-24032-B1i199308-199401
SHADOW GRAY,TRIM1#
main73350-24032-E3i199308-199401
GREIGE,TRIM0#
main73350-24032-G2i199308-199401
DK. SPRUCE,TRIM6#
main73350-24033-C0i199401-199505
BLACK,TRIM2#
main73350-24033-E1i199401-199505
IVORY,TRIM0#
main73350-24033-G1i199401-199505
LI. SPRUCE,TRIM6#
main73350-24040-C0i199505-199808
BLACK,TRIM2#
main73350-24040-C1i199808
BLACK,TRIM2#
main73350-24040-E0i199505-199808
OAK,TRIM0#
main73350-24040-E1i199808
OAK,TRIM0#
main73350-24040-G0i199505-199808
DARK AGATE,TRIM6#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
main73360-24030-03i199105-199205
SHADOW GRAY,TRIM1#
main73360-24030-05i199105-199205
GREIGE,TRIM0#
main73360-24030-07i199105-199205
DARK SPRUCE,TRIM6#
main73360-24031-B0i199205-199308
SHADOW GRAY,TRIM1#
main73360-24031-E0i199205-199308
GREIGE,TRIM0#
main73360-24031-G0i199205-199308
DARK SPRUCE,TRIM6#
main73360-24032-B1i199308-199401
SHADOW GRAY,TRIM1#
main73360-24032-E3i199308-199401
GREIGE,TRIM0#
main73360-24032-G2i199308-199401
DK. SPRUCE,TRIM6#
main73360-24033-C0i199401-199505
BLACK,TRIM2#
main73360-24033-E1i199401-199505
IVORY,TRIM0#
main73360-24033-G1i199401-199505
LI. SPRUCE,TRIM6#
main73360-24050-C0i199505-199608
BLACK,TRIM2#
main73360-24050-E0i199505-199608
OAK,TRIM0#
main73360-24050-G0i199505-199608
DARK AGATE,TRIM6#
main73360-24060-C0i199608-199709
BLACK,TRIM2#
main73360-24060-E0i199608-199709
OAK,TRIM0#
main73360-24060-G0i199608-199709
DARK AGATE,TRIM6#
main73360-24071-C0i199709-199808
BLACK,TRIM2#
main73360-24071-C1i199808-200012
BLACK,TRIM2#
main73360-24071-E0i199709-199808
OAK,TRIM0#
main73360-24071-E1i199808-200012
OAK,TRIM0#
main73360-24071-G0i199709-199808
DARK AGATE,TRIM6#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
main73370-24020-03i199105-199205
SHADOW GRAY,TRIM1#
main73370-24020-05i199105-199205
GREIGE,TRIM0#
main73370-24020-07i199105-199205
DARK SPRUCE,TRIM6#
main73370-24021-B0i199205-199308
SHADOW GRAY,TRIM1#
main73370-24021-E0i199205-199308
GREIGE,TRIM0#
main73370-24021-G0i199205-199308
DARK SPRUCE,TRIM6#
main73370-24022-B1i199308-199401
SHADOW GRAY,TRIM1#
main73370-24022-E3i199308-199401
GREIGE,TRIM0#
main73370-24022-G2i199308-199401
DK. SPRUCE,TRIM6#
main73370-24023-C0i199401-199505
BLACK,TRIM2#
main73370-24023-E1i199401-199505
IVORY,TRIM0#
main73370-24023-G1i199401-199505
LI. SPRUCE,TRIM6#
main73370-24040-C0i199505-199608
BLACK,TRIM2#
main73370-24040-E0i199505-199608
OAK,TRIM0#
main73370-24040-G0i199505-199608
DARK AGATE,TRIM6#
main73370-24050-C0i199608-199709
BLACK,TRIM2#
main73370-24050-E0i199608-199709
OAK,TRIM0#
main73370-24050-G0i199608-199709
DARK AGATE,TRIM6#
main73370-24061-C0i199709-199808
BLACK,TRIM2#
main73370-24061-C1i199808
BLACK,TRIM2#
main73370-24061-E0i199709-199808
OAK,TRIM0#
main73370-24061-E1i199808
OAK,TRIM0#
main73370-24061-G0i199709-199808
DARK AGATE,TRIM6#
73380ABELT ASSY, REAR SEAT, INNER
main73380-24020-03i199105-199308
SHADOW GRAY,TRIM1#
main73380-24020-05i199105-199308
GREIGE,TRIM0#
main73380-24020-07i199105-199308
DARK SPRUCE,TRIM6#
main73380-24021-B0i199308-199401
SHADOW GRAY,TRIM1#
main73380-24021-E1i199308-199401
GREIGE,TRIM0#
main73380-24021-G1i199308-199401
DK. SPRUCE,TRIM6#
main73380-24022-C0i199401
BLACK,TRIM2#
main73380-24022-E0i199401-199808
IVORY,TRIM0#
main73380-24022-E3i199808
SANDAL WOOD,TRIM0#
main73380-24022-G0i199401-199808
SPRUCE GRAY,TRIM6#
9011911028
main90119-11028
9017911010
main90179-11010
9046805084
main90468-05084
9048019006
main90480-19006

15 parts on this diagram · 2 diagrams in section
