FRONT DOOR PANEL & GLASS

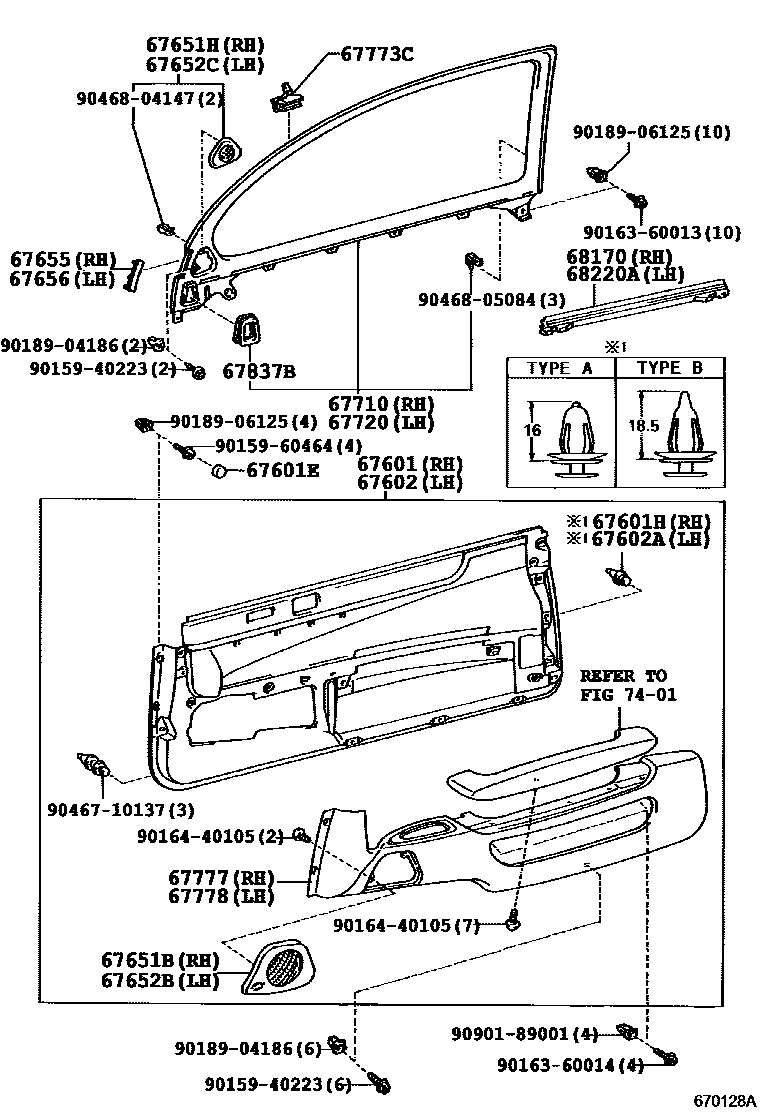

Parts diagram
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-24330-03i199105-199108
MEDIUM GRAY,TRIM1#
main67610-24330-07i199105-199108
SPRUCE,TRIM6#
main67610-24330-08i199105-199108
IVORY,TRIM0#
main67610-24331-A0i199108-199401
IVORY,TRIM0#
main67610-24331-B0i199108-199401
MEDIUM GRAY,TRIM1#
main67610-24331-G0i199108-199401
SPRUCE,TRIM6#
main67610-24340-03i199105-199108
MEDIUM GRAY,TRIM1#
main67610-24340-07i199105-199108
SPRUCE,TRIM6#
main67610-24340-08i199105-199108
IVORY,TRIM0#
main67610-24341-A0i199108-199205
IVORY,TRIM0#
main67610-24341-A1i199205-199401
IVORY,TRIM0#
main67610-24341-B0i199108-199401
MEDIUM GRAY,TRIM1#
main67610-24341-G0i199108-199401
SPRUCE,TRIM6#
main67610-24350-03i199105-199108
MEDIUM GRAY,TRIM1#
main67610-24350-07i199105-199108
SPRUCE,TRIM6#
main67610-24350-08i199105-199108
IVORY,TRIM0#
main67610-24351-A0i199108-199205
IVORY,TRIM0#
main67610-24351-B0i199108-199205
MEDIUM GRAY,TRIM1#
main67610-24351-G0i199108-199205
SPRUCE,TRIM6#
main67610-24352-A0i199205-199211
IVORY,TRIM0#
main67610-24352-A2i199211-199401
IVORY,TRIM0#
main67610-24352-B0i199205-199211
MEDIUM GRAY,TRIM1#
main67610-24352-B2i199211-199401
MEDIUM GRAY,TRIM1#
main67610-24352-G0i199205-199211
SPRUCE,TRIM6#
main67610-24352-G2i199211-199401
SPRUCE,TRIM6#
main67610-24380-B0i199207-199209
main67610-24380-G0i199207-199209
main67610-24390-A0i199401-199606
IVORY,TRIM0#
main67610-24390-C0i199401-199606
BLACK,TRIM2#
main67610-24390-G0i199401-199606
LI. SPRUCE,TRIM6#
main67610-24392-A0i199606-199608
IVORY,TRIM0#
main67610-24392-C0i199606-199608
BLACK,TRIM2#
main67610-24392-G0i199606-199608
SPRUCE,TRIM6#
main67610-24393-A1i199608
IVORY,TRIM0#
main67610-24393-C1i199608
BLACK,TRIM2#
main67610-24393-G1i199608-199808
SPRUCE,TRIM6#
main67610-24400-A0i199401-199606
IVORY,TRIM0#
main67610-24400-C0i199401-199606
BLACK,TRIM2#
main67610-24400-G0i199401-199606
LI. SPRUCE,TRIM6#
main67610-24401-A0i199606-199608
IVORY,TRIM0#
main67610-24401-C0i199606-199608
BLACK,TRIM2#
main67610-24401-G0i199606-199608
SPRUCE,TRIM6#
main67610-24410-A0i199401-199606
main67610-24410-C0i199401-199606
main67610-24410-G0i199401-199606
main67610-24411-A0i199606-199709
main67610-24411-C0i199606-199709
main67610-24411-G0i199606-199709
main67610-24420-A0i199401-199606
main67610-24420-C0i199401-199606
main67610-24420-G0i199401-199606
main67610-24422-A0i199606-199608
main67610-24422-C0i199606-199608
main67610-24422-G0i199606-199608
main67610-24423-A1i199608
main67610-24423-C1i199608
main67610-24423-G1i199608-199808
main67610-24450-A0i199401-199606
main67610-24450-C0i199401-199606
main67610-24450-G0i199401-199606
main67610-24451-A0i199606-199608
main67610-24451-C0i199606-199608
main67610-24451-G0i199606-199608
main67610-24460-A0i199709
main67610-24460-C0i199709
main67610-24460-G0i199709-199808
67601ECAP(FOR FRONT DOOR TRIM BOARD)
main90339-10002-07×4i199105-199112
SPRUCE,TRIM6#
main90339-10002-18×4i199105-199401
IVORY,TRIM0#
main90339-10002-53×4i199105-199212
MEDIUM GRAY,TRIM1#
main90339-10002-A2×4i199401
IVORY,TRIM0#
main90339-10002-C0×4i199401
BLACK,TRIM2#
main90339-10002-G0×4i199401-199808
LI. SPRUCE,TRIM6#
67601HRETAINER, DOOR TRIM, RH
main67771-12050×3i199105-199401
main67771-28020×2i199401-199709
main67771-28030i199401-199709
main67771-43010×6i199709-200012
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67620-24330-03i199105-199108
MEDIUM GRAY,TRIM1#
main67620-24330-07i199105-199108
SPRUCE,TRIM6#
main67620-24330-08i199105-199108
IVORY,TRIM0#
main67620-24331-A0i199108-199401
IVORY,TRIM0#
main67620-24331-B0i199108-199401
MEDIUM GRAY,TRIM1#
main67620-24331-G0i199108-199401
SPRUCE,TRIM6#
main67620-24340-03i199105-199108
MEDIUM GRAY,TRIM1#
main67620-24340-07i199105-199108
SPRUCE,TRIM6#
main67620-24340-08i199105-199108
IVORY,TRIM0#
main67620-24341-A0i199108-199205
IVORY,TRIM0#
main67620-24341-A1i199205-199401
IVORY,TRIM0#
main67620-24341-B0i199108-199401
MEDIUM GRAY,TRIM1#
main67620-24341-G0i199108-199401
SPRUCE,TRIM6#
main67620-24350-03i199105-199108
MEDIUM GRAY,TRIM1#
main67620-24350-07i199105-199108
SPRUCE,TRIM6#
main67620-24350-08i199105-199108
IVORY,TRIM0#
main67620-24351-A0i199108-199205
IVORY,TRIM0#
main67620-24351-B0i199108-199205
MEDIUM GRAY,TRIM1#
main67620-24351-G0i199108-199205
SPRUCE,TRIM6#
main67620-24352-A0i199205-199211
IVORY,TRIM0#
main67620-24352-A1i199211-199401
IVORY,TRIM0#
main67620-24352-B0i199205-199211
MEDIUM GRAY,TRIM1#
main67620-24352-B1i199211-199401
MEDIUM GRAY,TRIM1#
main67620-24352-G0i199205-199211
SPRUCE,TRIM6#
main67620-24352-G1i199211-199401
SPRUCE,TRIM6#
main67620-24380-B0i199207-199209
main67620-24380-G0i199207-199209
main67620-24390-A0i199401-199606
IVORY,TRIM0#
main67620-24390-C0i199401-199606
BLACK,TRIM2#
main67620-24390-G0i199401-199606
LI. SPRUCE,TRIM6#
main67620-24392-A0i199606-199608
IVORY,TRIM0#
main67620-24392-C0i199606-199608
BLACK,TRIM2#
main67620-24392-G0i199606-199608
SPRUCE,TRIM6#
main67620-24393-A1i199608
IVORY,TRIM0#
main67620-24393-C1i199608
BLACK,TRIM2#
main67620-24393-G1i199608-199808
SPRUCE,TRIM6#
main67620-24400-A0i199401-199606
IVORY,TRIM0#
main67620-24400-C0i199401-199606
BLACK,TRIM2#
main67620-24400-G0i199401-199606
LI. SPRUCE,TRIM6#
main67620-24401-A0i199606-199608
IVORY,TRIM0#
main67620-24401-C0i199606-199608
BLACK,TRIM2#
main67620-24401-G0i199606-199608
SPRUCE,TRIM6#
main67620-24410-A0i199401-199606
main67620-24410-C0i199401-199606
main67620-24410-G0i199401-199606
main67620-24411-A0i199606-199709
main67620-24411-C0i199606-199709
main67620-24411-G0i199606-199709
main67620-24420-A0i199401-199606
main67620-24420-C0i199401-199606
main67620-24420-G0i199401-199606
main67620-24422-A0i199606-199608
main67620-24422-C0i199606-199608
main67620-24422-G0i199606-199608
main67620-24423-A1i199608
main67620-24423-C1i199608
main67620-24423-G1i199608-199808
main67620-24450-A0i199709
main67620-24450-C0i199709
main67620-24450-G0i199709-199808
67602ARETAINER, DOOR TRIM, LH
main67771-12050×3i199105-199401
main67771-28020×2i199401-199709
main67771-28030i199401-199709
67651BGRILLE, SPEAKER DOOR, RH
main67651-24030-03i199105-199401
MEDIUM GRAY,TRIM1#
main67651-24030-07i199105-199401
SPRUCE,TRIM6#
main67651-24030-08i199105-199401
IVORY,TRIM0#
main67651-24030-A0i199401
IVORY,TRIM0#
main67651-24030-C0i199401
BLACK,TRIM2#
main67651-24030-G0i199401-199808
LI. SPRUCE,TRIM6#
67651HGRILLE, SPEAKER DOOR, RH
main67609-24010-03i199105-199401
SHADOW GRAY,TRIM1#
main67609-24010-05i199105-199401
GREIGE,TRIM0#
main67609-24010-07i199105-199401
DARK SPRUCE,TRIM6#
main67609-24010-C0i199401
BLACK,TRIM2#
main67609-24010-E0i199401
IVORY,TRIM0#
main67609-24010-G0i199401-199808
LI. SPRUCE,TRIM6#
67652BGRILLE, SPEAKER DOOR, LH
main67652-24030-03i199105-199401
MEDIUM GRAY,TRIM1#
main67652-24030-07i199105-199401
SPRUCE,TRIM6#
main67652-24030-08i199105-199401
IVORY,TRIM0#
main67652-24030-A0i199401
IVORY,TRIM0#
main67652-24030-C0i199401
BLACK,TRIM2#
main67652-24030-G0i199401-199808
LI. SPRUCE,TRIM6#
67652CGRILLE, SPEAKER DOOR, LH
main67709-24010-03i199105-199401
SHADOW GRAY,TRIM1#
main67709-24010-05i199105-199401
GREIGE,TRIM0#
main67709-24010-07i199105-199401
DARK SPRUCE,TRIM6#
main67709-24010-C0i199401
BLACK,TRIM2#
main67709-24010-E0i199401
IVORY,TRIM0#
main67709-24010-G0i199401-199808
LI. SPRUCE,TRIM6#
67655GARNISH, FRONT DOOR TRIM, RH
main67655-24010-03i199105-199401
SHADOW GRAY,TRIM1#
main67655-24010-05i199105-199401
GREIGE,TRIM0#
main67655-24010-07i199105-199401
DARK SPRUCE,TRIM6#
main67655-24010-C0i199401
BLACK,TRIM2#
main67655-24010-E0i199401
OAK,TRIM0#
main67655-24010-G0i199401-199808
LI.SPRUCE,TRIM6#
67656GARNISH, DOOR TRIM, LH
main67656-24010-03i199105-199401
SHADOW GRAY,TRIM1#
main67656-24010-05i199105-199401
GREIGE,TRIM0#
main67656-24010-07i199105-199401
DARK SPRUCE,TRIM6#
main67656-24010-C0i199401
BLACK,TRIM2#
main67656-24010-E0i199401
OAK,TRIM0#
main67656-24010-G0i199401-199808
LI.SPRUCE,TRIM6#
67710PANEL ASSY, FRONT DOOR TRIM, UPPER RH
main67710-24010-03i199105-199401
SHADOW GRAY,TRIM1#
main67710-24010-05i199105-199401
GREIGE,TRIM0#
main67710-24010-07i199105-199401
DARK SPRUCE,TRIM6#
main67710-24010-C0i199401
BLACK,TRIM2#
main67710-24010-E0i199401
OAK,TRIM0#
main67710-24010-G0i199401-199808
LI.SPRUCE,TRIM6#
67720PANEL ASSY, FRONT DOOR TRIM, UPPER LH
main67720-24010-03i199105-199401
SHADOW GRAY,TRIM1#
main67720-24010-05i199105-199401
GREIGE,TRIM0#
main67720-24010-07i199105-199401
DARK SPRUCE,TRIM6#
main67720-24010-C0i199401
BLACK,TRIM2#
main67720-24010-E0i199401
OAK,TRIM0#
main67720-24010-G0i199401-199808
LI.SPRUCE,TRIM6#
67773CCLIP, DOOR TRIM UPPER RETAINER, NO.1
main67773-24010×12i199105
67777POCKET, FRONT DOOR TRIM, RH
main67770-24100-03i199105-199401
MEDIUM GRAY,TRIM1#
main67770-24100-07i199105-199401
SPRUCE,TRIM6#
main67770-24100-08i199105-199401
IVORY,TRIM0#
main67770-24120-A0i199401-199606
IVORY,TRIM0#
main67770-24120-C0i199401-199606
BLACK,TRIM2#
main67770-24120-G0i199401-199606
LI. SPRUCE,TRIM6#
main67770-24121-A0i199606
IVORY,TRIM0#
main67770-24121-C0i199606
BLACK,TRIM2#
main67770-24121-G0i199606-199808
SPRUCE,TRIM6#
67778POCKET, FRONT DOOR TRIM, LH
main67780-24040-03i199105-199401
MEDIUM GRAY,TRIM1#
main67780-24040-07i199105-199401
SPRUCE,TRIM6#
main67780-24040-08i199105-199401
IVORY,TRIM0#
main67780-24060-A0i199401-199606
IVORY,TRIM0#
main67780-24060-C0i199401-199606
BLACK,TRIM2#
main67780-24060-G0i199401-199606
LI. SPRUCE,TRIM6#
main67780-24061-A0i199606
IVORY,TRIM0#
main67780-24061-C0i199606
BLACK,TRIM2#
main67780-24061-G0i199606-199808
SPRUCE,TRIM6#
67837BSEAL, FRONT DOOR DUST PROOF
main67657-24010i199105
main67658-24010i199105
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
main68170-24040i199105
68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH
main68220-24040i199105
7401ARMREST & VISOR
→ Go to FIG 74-01
9015940223
main90159-40223
9015960464
main90159-60464
9016360013
main90163-60013
9016360014
main90163-60014
9016440105
main90164-40105
9018904186
main90189-04186
9018906125
main90189-06125
9046710137
main90467-10137
9046804147
main90468-04147
9046805084
main90468-05084
9090189001
main90901-89001

31 parts on this diagram · 4 diagrams in section
