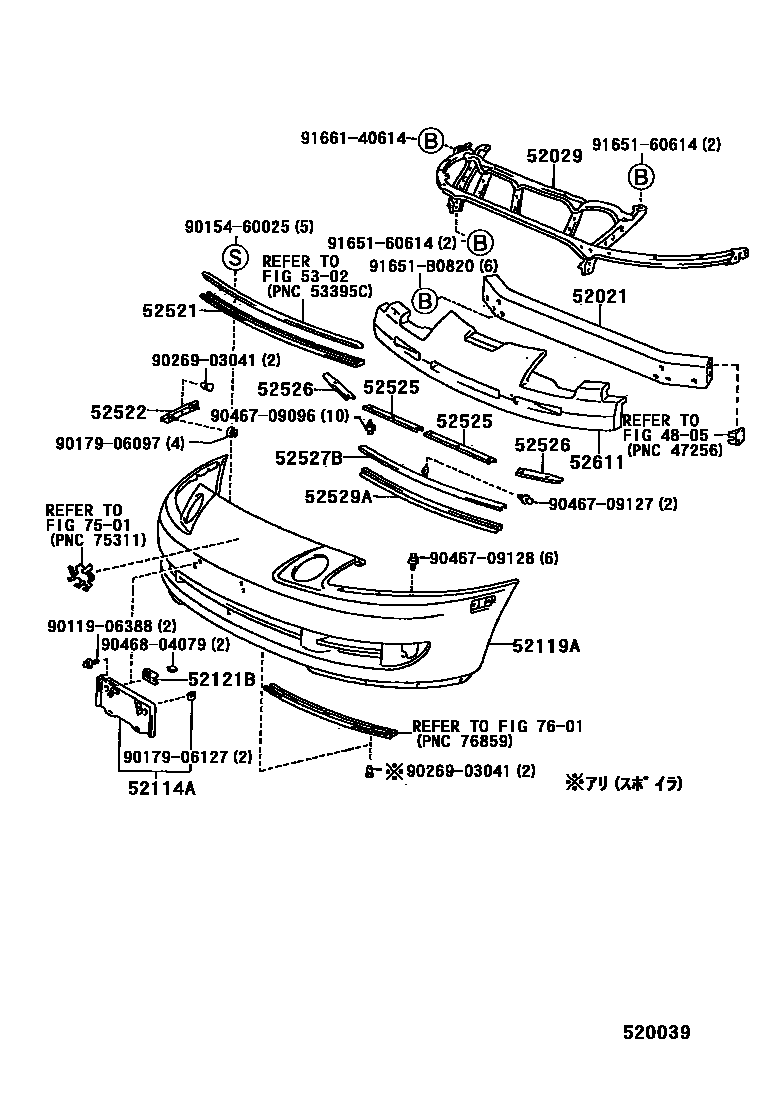

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

4805HEIGHT CONTROL (AUTO-LEVELER)

→ Go to FIG 48-05

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-24040iJZZ30,UZZ3#199105-199401

main52021-24041iJZZ3#,UZZ3#199401-199608

main52131-24050iJZZ3#,UZZ31199608

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-24030iJZZ3#,UZZ3#199105

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-24010iJZZ30,UZZ3#199105-199309

main52114-24011iJZZ3#,UZZ3#199309-199608

main52114-24030iJZZ3#,UZZ31199608

52119ACOVER, FRONT BUMPER

main52119-24080-02iJZZ30,UZZ3#199105-199111

RED MICA,3K3

main52119-24080-03iJZZ30,UZZ3#199105-199111

SUPER SILVER 3 M,176

main52119-24080-04iJZZ30,UZZ3#199105-199111

DARK BLUE MCFP,8J5

main52119-24080-05iJZZ30,UZZ3#199105-199111

BEIGE M,4K9

main52119-24080-07iJZZ30,UZZ3#199105-199111

BLUISH GREEN MIO,6M2

main52119-24080-08iJZZ30,UZZ3#199105-199111

SUPER WHITE PRARL M,051

main52119-24080-17iJZZ30,UZZ3#199105-199111

GRAYISH GREEN M,6M3

main52119-24081-A0iJZZ30,UZZ3#199111-199401

SUPER WHITE PEARL M,051

main52119-24081-B0iJZZ30,UZZ3#199111-199401

SUPER SILVER 3 M,176

main52119-24081-C0iJZZ30,UZZ3#199205-199401

BLACK,202

main52119-24081-D0iJZZ30,UZZ3#199111-199401

RED MICA,3K3

main52119-24081-E0iJZZ30,UZZ3#199111-199401

BEIGE M,4K9

main52119-24081-G0iJZZ30,UZZ3#199111-199401

BLUISH GREEN MIO,6M2

main52119-24081-G1iJZZ30,UZZ3#199111-199401

GRAYISH GREEN M,6M3

main52119-24081-J0iJZZ30,UZZ3#199111-199401

DARK BLUE MCFP,8J5

main52119-24100-02iJZZ30,UZZ3#199105-199111

main52119-24100-03iJZZ30,UZZ3#199105-199111

main52119-24100-04iJZZ30,UZZ3#199105-199111

main52119-24100-05iJZZ30,UZZ3#199105-199111

main52119-24100-07iJZZ30,UZZ3#199105-199111

main52119-24100-08iJZZ30,UZZ3#199105-199111

main52119-24100-17iJZZ30,UZZ3#199105-199111

main52119-24101-A0iJZZ30,UZZ3#199111-199401

main52119-24101-B0iJZZ30,UZZ3#199111-199401

main52119-24101-C0iJZZ30,UZZ3#199205-199401

main52119-24101-D0iJZZ30,UZZ3#199111-199401

main52119-24101-E0iJZZ30,UZZ3#199111-199401

main52119-24101-G0iJZZ30,UZZ3#199111-199401

main52119-24101-G1iJZZ30,UZZ3#199111-199401

main52119-24101-J0iJZZ30,UZZ3#199111-199401

main52119-24130-A0iJZZ3#,UZZ3#199401-199608

SUPER WHITE PEARL M,051

main52119-24130-B0iJZZ3#,UZZ3#199401-199608

BLUISH SILVER ME,1A0

main52119-24130-C0iJZZ3#,UZZ3#199401-199608

BLACK,202

main52119-24130-D0iJZZ3#,UZZ3#199401-199608

SUPER RED 4,3L2

main52119-24130-D1iJZZ3#,UZZ3#199505-199608

WINE RED MC.,3L4

main52119-24130-G0iJZZ3#,UZZ3#199401-199608

BLUISH GREEN MIO,6M2

main52119-24130-G1iJZZ3#,UZZ3#199401-199505

MI.GR.GREEN MCGR,6N1

main52119-24130-J0iJZZ3#,UZZ3#199401-199608

DARK BLUE MCFP,8J5

main52119-24140-A0iJZZ3#,UZZ3#199401-199608

main52119-24140-B0iJZZ3#,UZZ3#199401-199608

main52119-24140-C0iJZZ3#,UZZ3#199401-199608

main52119-24140-D0iJZZ3#,UZZ3#199401-199608

main52119-24140-D1iJZZ3#,UZZ3#199505-199608

main52119-24140-G0iJZZ3#,UZZ3#199401-199608

main52119-24140-G1iJZZ3#,UZZ3#199401-199505

main52119-24140-J0iJZZ3#,UZZ3#199401-199608

main52119-24170-A0iJZZ3#,UZZ31199608-199808

SU.WHITE PM,051

main52119-24170-A1iJZZ3#199808

WHITE PM.,057

main52119-24170-B0iJZZ3#,UZZ31199608-199808

BLUISH SILVER ME.,1A0

main52119-24170-B1iJZZ3#199808

SILVER ME.,1C0

main52119-24170-C0iJZZ3#,UZZ31199608

BLACK,202

main52119-24170-D0iJZZ3#,UZZ31199608

SUPER RED 4,3L2

main52119-24170-D1iJZZ3#,UZZ31199608-199709

WINE RED MC.,3L4

main52119-24170-D2iJZZ3#199709-199908

ROSE RED MC.,3M9

main52119-24170-D3iJZZ3#199908

RED MC,3N1

main52119-24170-G0iJZZ3#,UZZ31199608-199709

DK.GREEN M.M.,6P2

main52119-24170-G1iJZZ3#199709

DK. GREEN MC.,6Q7

main52119-24170-J0iJZZ3#,UZZ31199608

BLUE M.M.,8L5

52121BBRACKET, FRONT LICENCE PLATE MOUNTING

main52121-16030×2iJZZ30,UZZ3#199105-199111

main52121-24020×2iJZZ3#,UZZ3#199111

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-24040iJZZ3#,UZZ3#199105

52522RETAINER, FRONT BUMPER UPPER SIDE

main52522-24010×2iJZZ3#,UZZ3#199105

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52525-24020iJZZ3#,UZZ31199608

main52525-24030×2iJZZ30,UZZ3#199105-199401

main52525-24040iJZZ3#,UZZ3#199401-199608

52526RETAINER, FRONT BUMPER, LOWER SIDE

main52526-24030×2iJZZ30,UZZ3#199105-199401

main52526-24040×2iJZZ3#,UZZ3#199401

52527BRETAINER, FRONT BUMPER, LOWER NO.2

main52506-24020iJZZ30,UZZ3#199105-199401

52529ARETAINER, FRONT BUMPER, LOWER CENTER NO.3

main52529-24030iJZZ30,UZZ3#199105-199401

52611ABSORBER, FRONT BUMPER ENERGY

main52611-24030iJZZ3#,UZZ31199608

main52611-24040iJZZ30,UZZ3#199105-199111

main52611-24041iJZZ3#,UZZ3#199111-199608

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9011906388

main90119-06388

9015460025

main90154-60025

9017906097

main90179-06097

9017906127

main90179-06127

9026903041

main90269-03041

9046709096

main90467-09096

9046709127

main90467-09127

9046709128

main90467-09128

9046804079

main90468-04079

9165160614

main91651-60614

91651B0820

main91651-B0820

9166140614

main91661-40614

28 parts on this diagram · 3 diagrams in section
