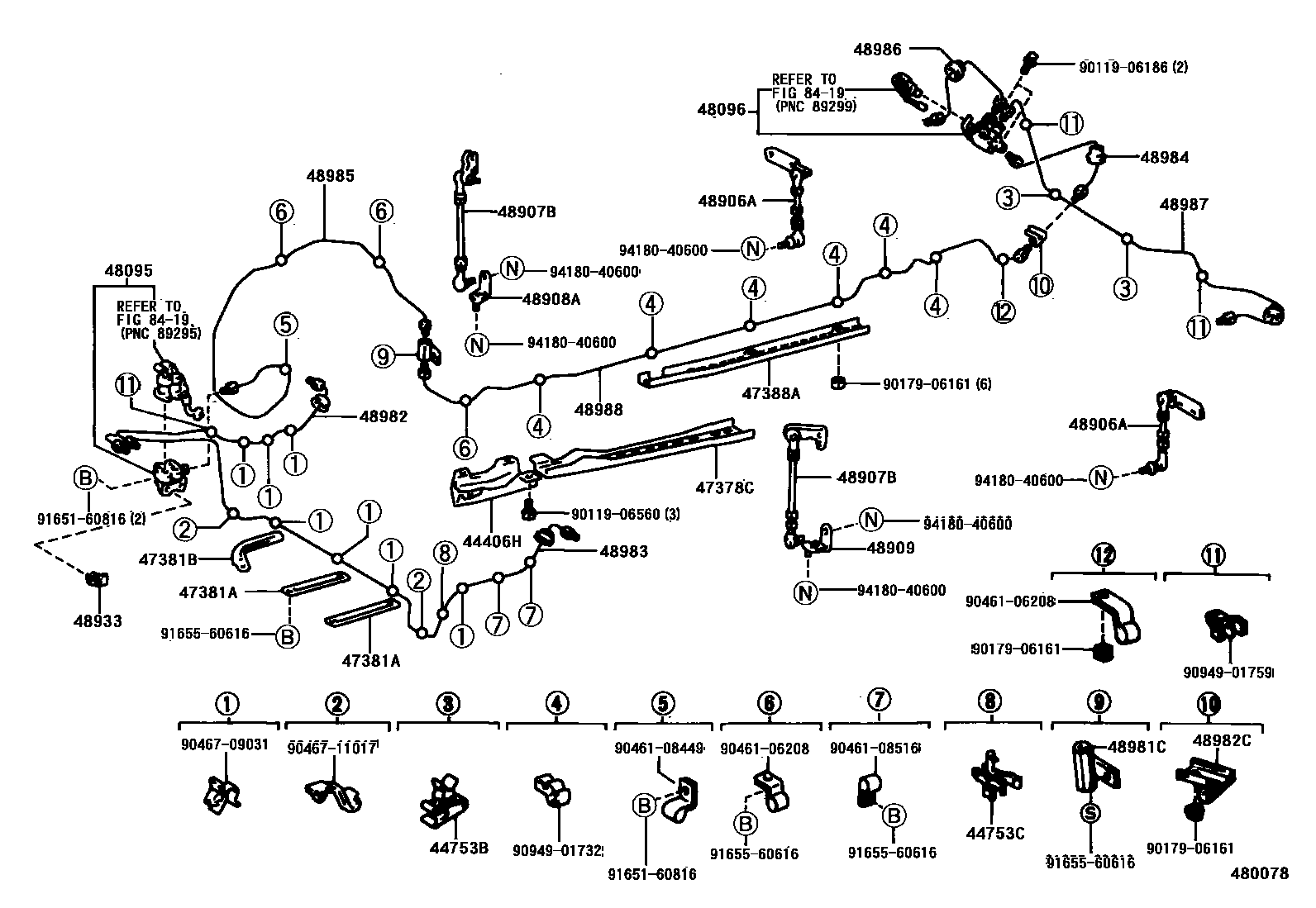

HEIGHT CONTROL (AUTO-LEVELER)
44406HPROTECTOR ASSY, REAR STEERING CONTROL TUBE
44753BCLAMP, HEIGHT CONTROL TUBE, NO.1
44753CCLAMP, HEIGHT CONTROL TUBE, NO.2
47378CPROTECTOR, TUBE, UPR
47381ABRACKET, HEIGHT CONTROL TUBE CLAMP, NO.1
47381BBRACKET, HEIGHT CONTROL TUBE CLAMP, NO.2
47388APROTECTOR, TUBE, LWR
48095VALVE SUB-ASSY, HEIGHT CONTROL, NO.1
48096VALVE SUB-ASSY, HEIGHT CONTROL, NO.2
48906ALINK SUB-ASSY, HEIGHT CONTROL SENSOR, REAR
48907BLINK SUB-ASSY, HEIGHT CONTROL SENSOR, FRONT
48908ABRACKET ASSY, HEIGHT SENSOR LINK, RH
48909BRACKET ASSY, HEIGHT SENSOR LINK, LH
48933HOLDER, AIR CONNECTOR CLIP
48981TUBE, HEIGHT CONTROL, NO.1
48981CWAY(FOR HEIGHT CONTROL TUBE)
48982TUBE, HEIGHT CONTROL, NO.2
48982CWAY, NO.2(FOR HEIGHT CONTROL TUBE)
48983TUBE, HEIGHT CONTROL, NO.3
48984TUBE, HEIGHT CONTROL, NO.4
48985TUBE, HEIGHT CONTROL, NO.5
48986TUBE, HEIGHT CONTROL, NO.6
48987TUBE, HEIGHT CONTROL, NO.7
48988TUBE, HEIGHT CONTROL, NO.8
8419ELECTRONIC MODULATED SUSPENSION
9011906186
main90119-06186
9011906560
main90119-06560
9017906161
main90179-06161
9046106208
main90461-06208
9046108449
main90461-08449
9046108516
main90461-08516
9046709031
main90467-09031
9046711017
main90467-11017
9094901732
main90949-01732
9094901759
main90949-01759
9165160816
main91651-60816
9165560616
main91655-60616
9418040600
main94180-40600
38 parts on this diagram · 2 diagrams in section
