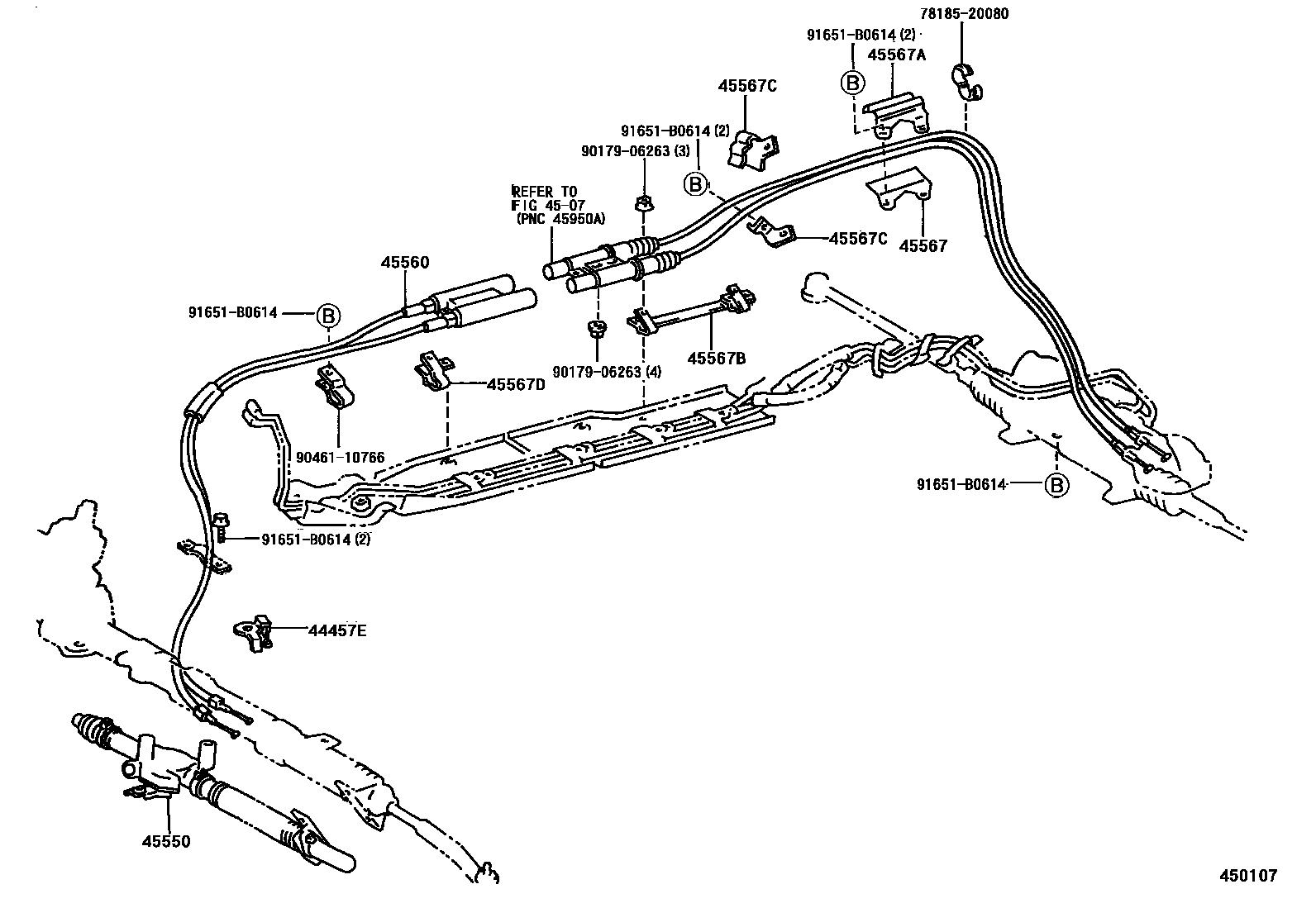

Toyota 321110 — REAR STEERING CONNECTING PARTS (4WS)
44457EBRACKET, REAR STEERING CONTROL CAM CABLE
4507REAR STEERING GEAR (4WS)
45560CABLE ASSY, REAR STEERING CONTROL CAM
45567BRACKET, REAR STEERING CONTROL CABLE, NO.1
45567ABRACKET, REAR STEERING CONTROL CABLE, NO.2
45567BBRACKET, REAR STEERING CONTROL CABLE, NO.3
45567CBRACKET, REAR STEERING CONTROL CABLE, NO.4
45567DBRACKET, REAR STEERING CONTROL CABLE, NO.5
7818520080SHAFT, ACCELERATOR PEDAL SUPPORT
9017906263
9046110766
91651B0614
13 parts on this diagram · 2 diagrams in section
REAR STEERING CONNECTING PARTS (4WS) for Toyota 321110
This section contains 56 genuine Toyota parts for the REAR STEERING CONNECTING PARTS (4WS) system of the Toyota 321110. Key components include: BRACKET, REAR STEERING CONTROL CAM CABLE, REAR STEERING GEAR (4WS), PULLEY ASSY, REAR STEERING CONTROL, HOUSING, REAR STEERING CONTROL, COVER, REAR STEERING CONTROL.
