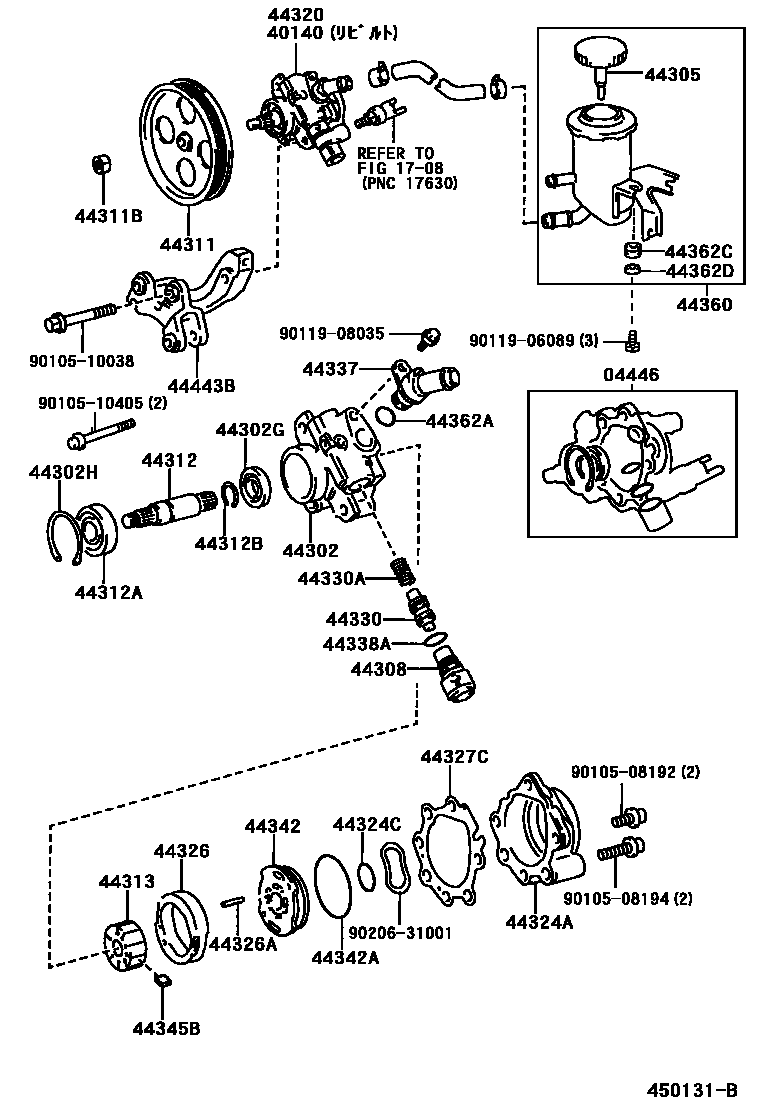

VANE PUMP & RESERVOIR (POWER STEERING)
1708
40140PUMP ASSY,VANE REBUILT
44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)
44311PULLEY, VANE PUMP
44311BNUT(FOR VANE PUMP PULLEY)
44312SHAFT, VANE PUMP
44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44313ROTOR, VANE PUMP
44324CRING, O(FOR PUMP HOUSING REAR)
44326RING, CAM(FOR VANE PUMP)
44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)
44330VALVE ASSY, FLOW CONTROL
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44337UNION, POWER STEERING SUCTION PORT
44338UNION, PRESSURE PORT
44342PLATE, VANE PUMP SIDE, REAR
44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)
44345BPLATE, VANE PUMP
44360RESERVOIR ASSY, VANE PUMP OIL
44362ARING, O(FOR VANE PUMP OIL RESERVOIR)
44362CCUSHION(FOR VANE PUMP OIL RESERVOIR)
44362DSPACER(FOR VANE PUMP OIL RESERVOIR)
44443BBRACKET, VANE PUMP
9010508192
main90105-08192
9010508194
main90105-08194
9010510038
main90105-10038
9010510405
main90105-10405
9011906089
main90119-06089
9011908035
main90119-08035
9020631001
main90206-31001
40 parts on this diagram · 5 diagrams in section
