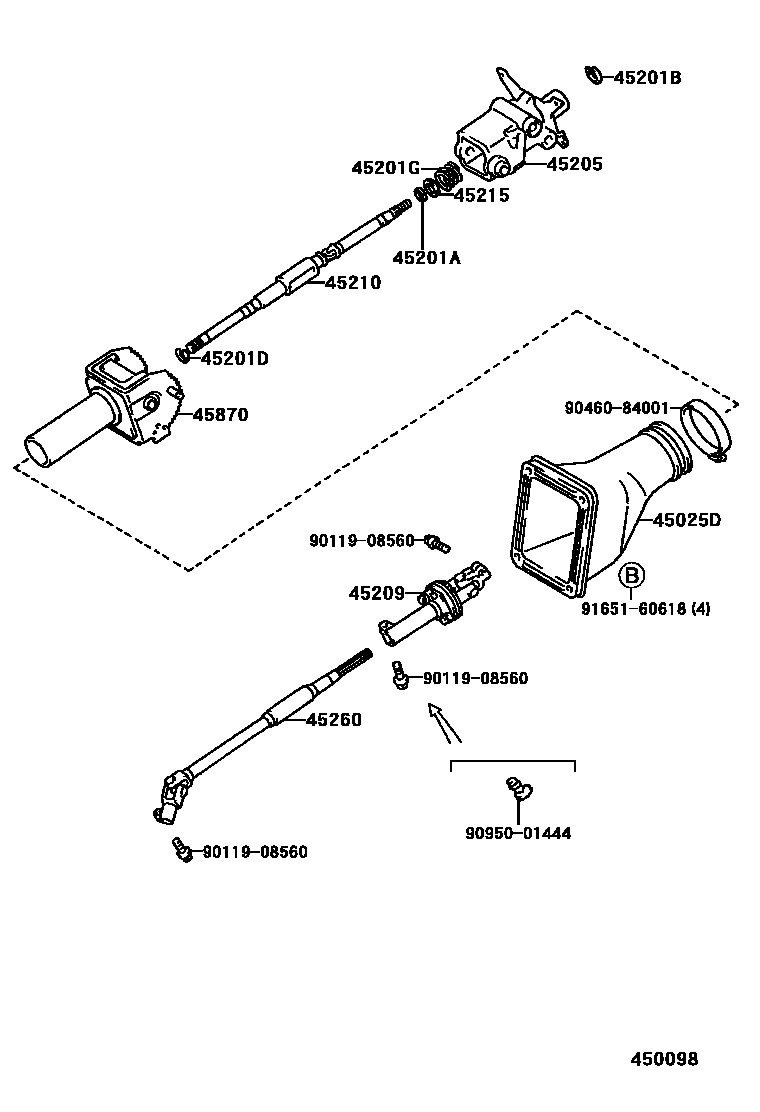

STEERING COLUMN & SHAFT

0001 1 0003 1 0004 1 0005 1 0007 1 0009 1 0010 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-24020iJZZ3#,UZZ3#199105

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18005iJZZ3#,UZZ3#199105-199406

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iJZZ3#,UZZ3#199105

45201DRING(FOR STEERING MAIN SHAFT)

main90520-16004iJZZ3#,UZZ3#199105

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-40017iJZZ3#,UZZ3#199105

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-24040iJZZ30,UZZ30199105-199206

main45205-24041iJZZ30,UZZ30199206-199401

main45205-24052iJZZ3#199608

main45205-50010iUZZ31,32199105-199603

main45205-50011iUZZ31199608-199709

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-14040iJZZ3#,UZZ3#199305

main45209-24010iJZZ30,UZZ3#199105-199305

45210SHAFT ASSY, STEERING MAIN

main45210-24020iJZZ3#,UZZ3#199401

main45210-24030iJZZ30,UZZ3#199105-199401

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iJZZ3#,UZZ3#199105

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-24070iJZZ3#,UZZ3#199105

45870TUBE ASSY, STEERING COLUMN

main45870-24060iJZZ3#,UZZ31199401-199608

9011908560

main90119-08560

9046084001

main90460-84001

9095001444

main90950-01444

9165160618

main91651-60618

15 parts on this diagram · 7 diagrams in section
