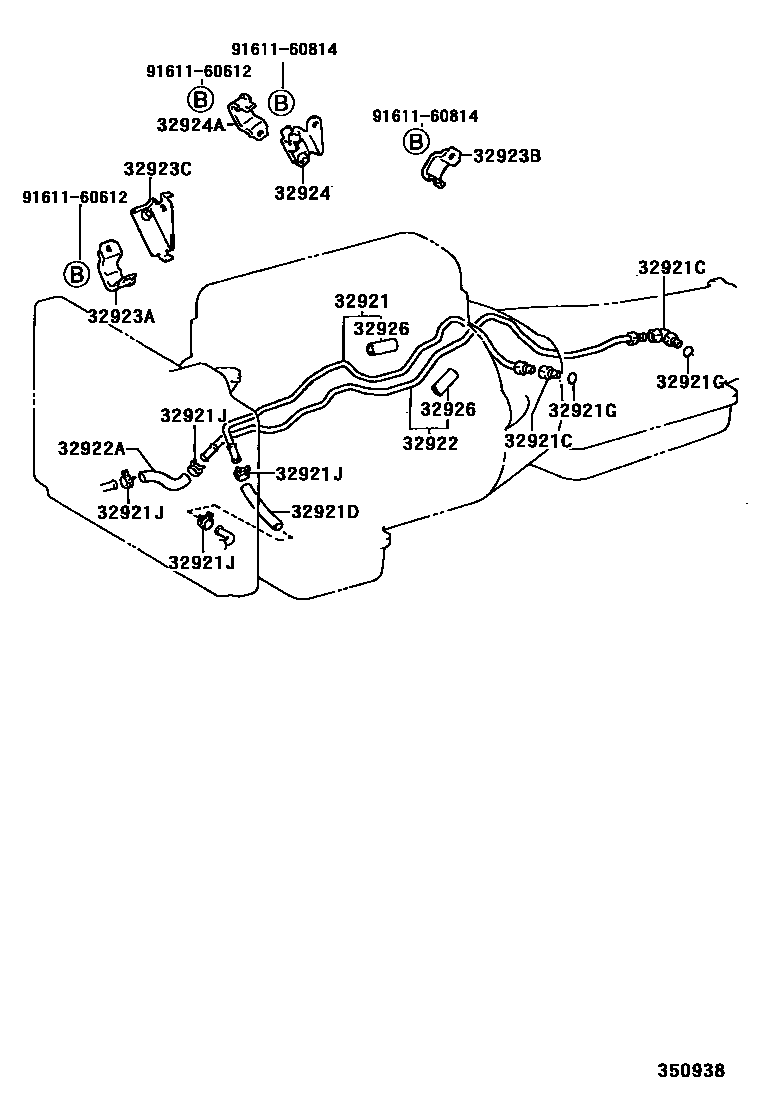

Toyota SOARER — OIL COOLER & TUBE (ATM)
32921TUBE, OIL COOLER INLET, NO.1
32921CUNION(FOR OIL COOLER TUBE)
32921DHOSE(FOR OIL COOLER INLET)
32921GRING, O(FOR OIL COOLER TUBE UNION)
32921JCLIP(FOR OIL COOLER HOSE)
32922TUBE, OIL COOLER OUTLET, NO.1
32922AHOSE(FOR OIL COOLER OUTLET)
32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
32924CLAMP, OIL COOLER TUBE, NO.2
32924ACLAMP(FOR OIL COOLER TUBE, NO.2)
9161160612
9161160814
15 parts on this diagram · 4 diagrams in section
OIL COOLER & TUBE (ATM) for Toyota SOARER
This section contains 19 genuine Toyota parts for the OIL COOLER & TUBE (ATM) system of the Toyota SOARER. Key components include: TUBE, OIL COOLER INLET, NO.1, UNION(FOR OIL COOLER TUBE), HOSE(FOR OIL COOLER INLET), RING, O(FOR OIL COOLER TUBE UNION), CLIP(FOR OIL COOLER HOSE).
