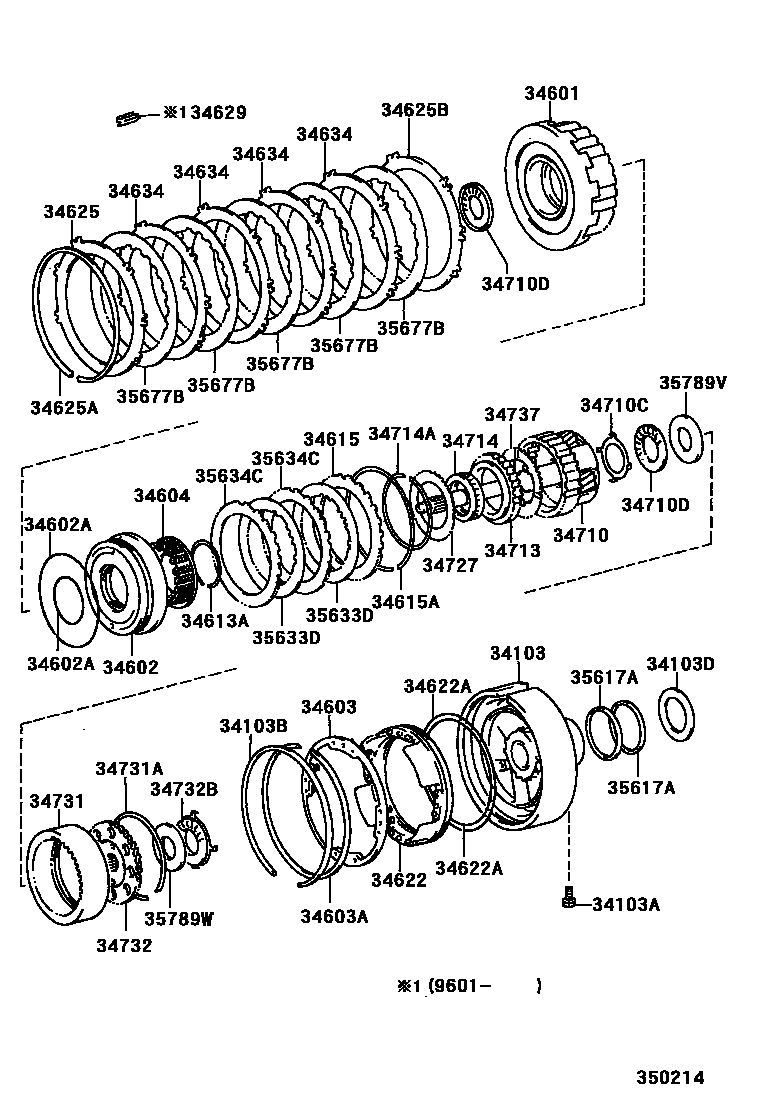

OVERDRIVE GEAR (ATM)

34103SUPPORT SUB-ASSY, OVERDRIVE

main34103-30011iJZZ30..ATM199105-199303

main34103-30020iJZZ30..ATM199707-199709

main34103-50010iJZZ3#,UZZ3#..ATM199303-199707

34103ABOLT (FOR OVERDRIVE SUPPORT)

main90105-08065×2iJZZ30,UZZ3#..ATM199105-199304

main90105-08281×2iJZZ3#,UZZ3#..ATM199304

34103BRING, HOLE SNAP (FOR OVERDRIVE SUPPORT)

main90521-99033iJZZ3#,UZZ3#..ATM199105

34103DRACE, THRUST BEARING (FOR OVERDRIVE SUPPORT REAR)

main35789-30090iJZZ3#,UZZ3#..ATM199105

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-30030iJZZ31199401-199709

main34601-50010iJZZ30,UZZ3#..ATM199105-199505

main34601-50030iUZZ3#199505-199709

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-30020iJZZ3#,UZZ3#..ATM199105

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-65005iJZZ3#,UZZ3#..ATM199105-199707

main90301-65006iJZZ30..ATM199707-199709

main90301-99036iJZZ31,UZZ31199707-199709

main90301-99086iJZZ30..ATM199707-199709

34603SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main34603-30010iJZZ30..ATM199105-199303

main34603-30030iJZZ3#..ATM199709

main34603-50010iUZZ3#199105-199303

34603ARING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING)

main90520-99039iJZZ30..ATM199707-199709

main90521-99031iJZZ31,UZZ31199707-199709

34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN

main34604-30010iJZZ3#,UZZ3#..ATM199406

main34604-50010iUZZ3#199305-199406

34613ARING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH RETURN SPRING)

main90520-58001iJZZ3#,UZZ3#..ATM199105

34615FLANGE, OVERDRIVE CLUTCH

main34615-30020iJZZ3#,UZZ3#..ATM199105-200007

main34615-30030iJZZ3#,UZZ3#..ATM199105-200007

main34615-30040iJZZ3#,UZZ3#..ATM199105-200007

main34615-30050iJZZ3#,UZZ3#..ATM199105

main34615-30060iJZZ3#,UZZ3#..ATM199105-199505

main34615-30070iJZZ3#..ATM200007

main34615-50010iJZZ31199709

main34615-50020iJZZ31199709

main34615-50030iJZZ3#..ATM200007

main34615-50040iJZZ3#..ATM200007

main34615-50050iJZZ3#..ATM200007

34615ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE)

main90521-99001iJZZ3#,UZZ3#..ATM199105

34622PISTON, OVERDRIVE BRAKE

main34622-14010iJZZ30..ATM199105-199303

main34622-24010iJZZ30..ATM199908

main34622-30070iJZZ31199406-199709

main34622-30080iJZZ30,UZZ3#..ATM199505-199908

main34622-30090iJZZ31199709

main34622-35020iJZZ31199401-199406

main34622-50010iJZZ30,UZZ3#..ATM199303-199505

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99035iJZZ30..ATM199105-199303

main90301-99037iJZZ30..ATM199105-199303

main90301-99063iUZZ3#199105-199303

main90301-99064iUZZ3#199105-199303

main90301-99088iJZZ30..ATM199707-199709

main90301-99090iJZZ30..ATM199707-199709

34625FLANGE, OVERDRIVE BRAKE, NO.1

main34625-30040iJZZ30..ATM; UZZ3#199105-199112

main34625-30050iJZZ30..ATM; UZZ3#199105-199112

main34625-30060iJZZ30..ATM; UZZ3#199105-199112

main34625-30070iJZZ30..ATM; UZZ3#199105-199112

main34625-30080iJZZ30..ATM; UZZ3#199105-199112

main34625-30090iJZZ30..ATM; UZZ3#199105-199112

main34625-30100iJZZ30..ATM; UZZ3#199105-199112

main34625-30120iJZZ3#,UZZ3#..ATM199112

main34625-30130iJZZ3#,UZZ3#..ATM199112

main34625-30140iJZZ3#,UZZ3#..ATM199112-200007

main34625-30150iJZZ3#,UZZ3#..ATM199112-200007

main34625-30160iJZZ3#,UZZ3#..ATM199112-200007

main34625-30170iJZZ3#,UZZ3#..ATM199112

main34625-30180iJZZ3#,UZZ3#..ATM199112

main34625-50020iJZZ3#..ATM200007

main34625-50030iJZZ3#..ATM200007

main34625-50040iJZZ3#..ATM200007

34625ARING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)

main90521-99027iJZZ3#,UZZ3#..ATM199105

34625BFLANGE, OVERDRIVE BRAKE, NO.2

main34625-30030iJZZ30,UZZ3#..ATM199105-199112

main34625-30110iJZZ3#,UZZ3#..ATM199112-199709

34629SPRING, OVERDRIVE BRAKE PLATE STOPPER

main34629-50010iUZZ3#199601-199608

34634PLATE, OVERDRIVE BRAKE

main34634-30020×4iJZZ30,UZZ3#..ATM199105-199112

main34634-30021×3iJZZ31199401-199709

main34634-30030×3iJZZ31199709-200010

main34634-30050×3iJZZ31200010

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-30030iJZZ30..ATM199709

main34710-30090iJZZ31199709

main34710-50010iUZZ3#199105-199709

34710CRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR)

main35789-30050iJZZ3#,UZZ3#..ATM199105

34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)

main90374-25005iJZZ3#,UZZ3#..ATM199105

main90374-28008iJZZ3#,UZZ3#..ATM199105-199906

main90374-31005iJZZ3#..ATM199906

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-32010iJZZ3#,UZZ3#..ATM199105

34714CLUTCH, 1 WAY(FOR OVERDRIVE)

main35791-30060iJZZ31199608

main35791-50010iJZZ30,UZZ31..ATM199608

34714ARING, HOLE SNAP(FOR 1 WAY CLUTCH)

main90521-99028iJZZ3#,UZZ3#..ATM199105

34727PLATE, RETAINING (FOR OVERDRIVE)

main34727-32010iJZZ3#,UZZ3#..ATM199105

34731GEAR, OVERDRIVE PLANETARY RING

main34731-30030iJZZ3#,UZZ3#..ATM199105

34731ARING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR)

main90521-99024iJZZ3#,UZZ3#..ATM199105

34732FLANGE, OVERDRIVE PLANETARY RING GEAR

main34732-22010iJZZ3#,UZZ3#..ATM199505

main34732-50010iUZZ3#199401-199505

34732BBEARING, THRUST(FOR OVERDRIVE PLANETARY RING GEAR FLANGE)

main90374-33002iJZZ3#,UZZ3#..ATM199105

34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3

main34737-30030iJZZ3#,UZZ3#..ATM199105

35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

main35617-30020×2iJZZ3#,UZZ3#..ATM199105

35633DDISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main35633-14010×2iJZZ31199709

main35633-30040×2iJZZ3#,UZZ3#..ATM199105-199504

35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main34616-30010×2iJZZ3#..ATM; UZZ3#199105-199505

main34616-50010iUZZ3#199105-199505

35677BDISC, CLUTCH (FOR OVERDRIVE BRAKE)

main34633-30010×4iJZZ31199401-199709

main34633-30030×3iJZZ31199709

main34633-50010×5iUZZ3#199105-199709

35789VRACE, THRUST BEARING

main35789-30060iJZZ3#,UZZ3#..ATM199105

35789WRACE, THRUST BEARING

main35789-22060iJZZ3#,UZZ3#..ATM199105

38 parts on this diagram · 1 diagram in section
