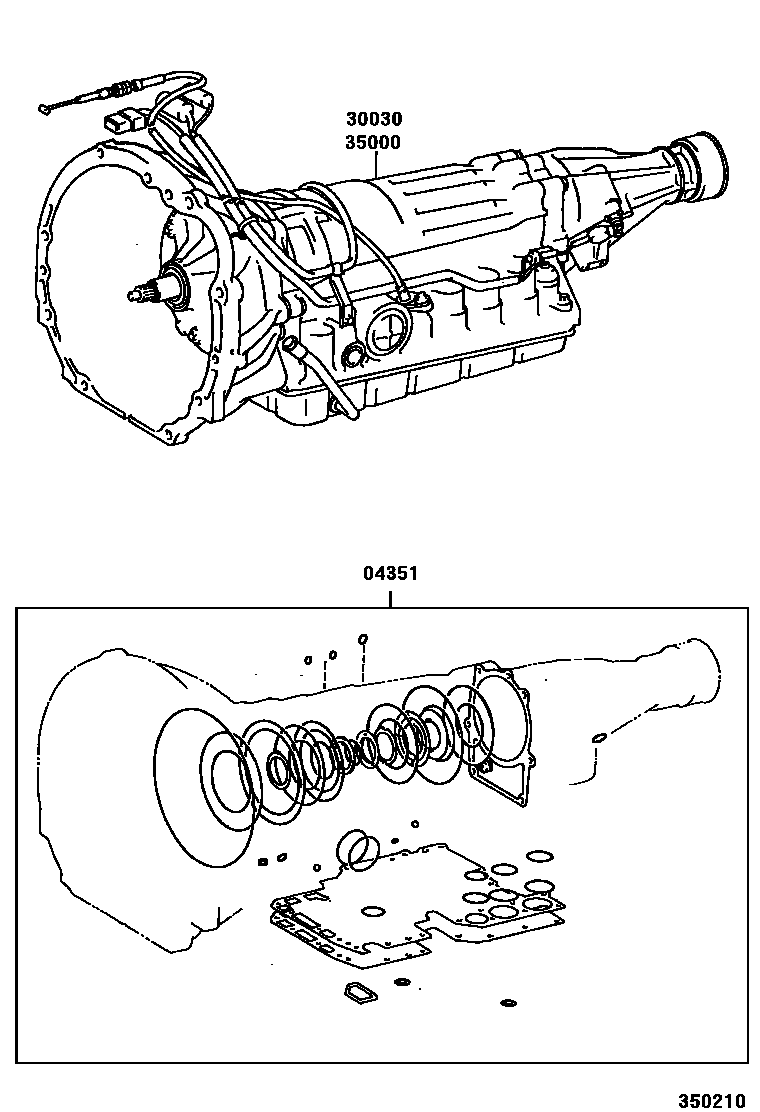

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1A340E 0002 1A341E

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-24020iJZZ30..ATM199608-200012

main04351-30130iUZZ3#199105-199401

main04351-30131iUZZ3#199401-199709

main04351-30140iJZZ3#..ATM199105-199608

main04351-30300iJZZ31199709-200012

30030TRANSMISSION ASSY, REBUILT

main30030-24240iUZZ3#199105-199401

main30030-24260iJZZ30..ATM199105-199608

main30030-24290iUZZ3#199401-199505

main30030-24310iJZZ31199401-199709

main30030-24330iUZZ3#199505-199709

main30030-24350iJZZ30..ATM199608-199705

main30030-24351iJZZ30..ATM199705-199908

main30030-24390iJZZ31199709-200012

main30030-24410iJZZ30..ATM199908-200012

35000TRANSMISSION ASSY, AUTOMATIC

main35000-24240iUZZ3#199105-199401

main35000-24260iJZZ30..ATM199105-199401

main35000-24290iUZZ3#199401-199505

main35000-24310iJZZ31199401-199709

main35000-24320iJZZ30..ATM199401-199608

main35000-24330iUZZ3#199505-199709

main35000-24350iJZZ30..ATM199608-199705

main35000-24351iJZZ30..ATM199705-199908

main35000-24370iJZZ31199608-199709

main35000-24390iJZZ31199709

main35000-24410iJZZ30..ATM199908

3 parts on this diagram · 2 diagrams in section
