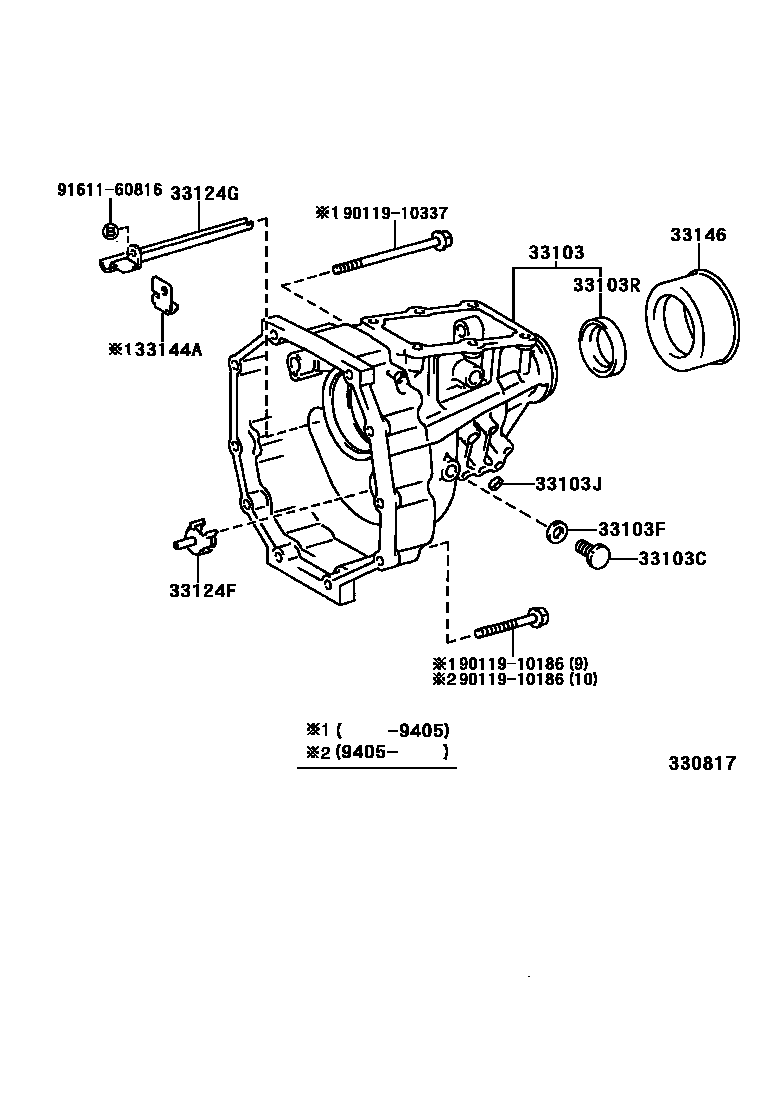

EXTENSION HOUSING (MTM)

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-14061iJZZ30..MTM199105-199211

main33103-22110iJZZ30..MTM199211-199301

main33103-22120iJZZ30..MTM199301-199405

main33103-35170iJZZ30..MTM199405

33103CPLUG, NO.1(FOR EXTENSION HOUSING)

main90341-18006iJZZ30..MTM199105

33103FGASKET(FOR EXTENSION HOUSING PLUG NO.1)

main90430-18008iJZZ30..MTM199105

33103JPLUG, TIGHT(FOR EXTENSION HOUSING)

main90341-10065iJZZ30..MTM199405

main96411-41800iJZZ30..MTM199105-199405

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-40001iJZZ30..MTM199105

33124FPIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)

main33124-35100iJZZ30..MTM199405

main33124-36010iJZZ30..MTM199105-199405

33124GPIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)

main33124-35050iJZZ30..MTM199105-199405

main33124-35090iJZZ30..MTM199405

33144ADEFLECTOR, EXTENSION HOUSING OIL(MTM)

main33144-14010iJZZ30..MTM199105-199405

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iJZZ30..MTM199401-199405

main33146-30020iJZZ30..MTM199105-199401

9011910186

main90119-10186

9011910337

main90119-10337

9161160816

main91611-60816

12 parts on this diagram · 1 diagram in section
