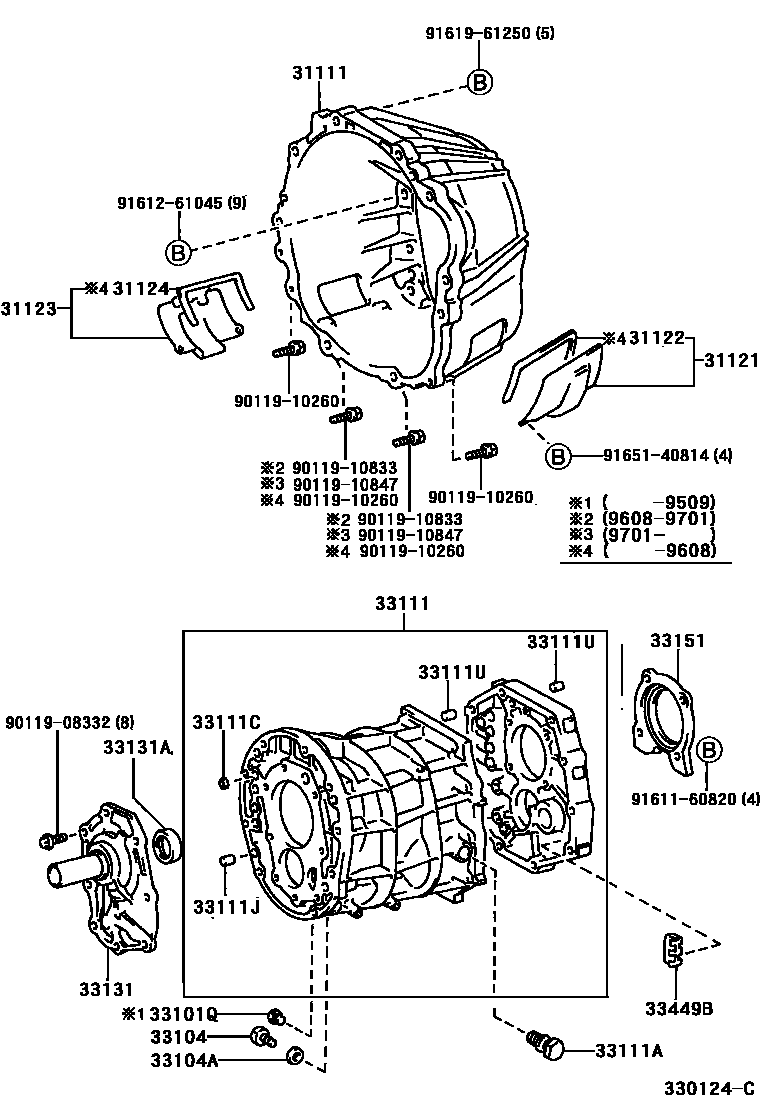

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31111HOUSING, CLUTCH

main31111-14110iJZZ30..MTM199105-199910

main31111-14111iJZZ30..MTM199910

31121COVER, CLUTCH HOUSING, NO.1

main31101-14010iJZZ30..MTM199105-199608

main31121-22030iJZZ30..MTM199608-200012

31122GASKET, CLUTCH HOUSING COVER

main31122-14010iJZZ30..MTM199105-199608

31123COVER, CLUTCH HOUSING, NO.2

main31102-14010iJZZ30..MTM199105-199608

main31123-14020iJZZ30..MTM199608-200012

31124GASKET, CLUTCH HOUSING COVER, NO.2

main31124-14010iJZZ30..MTM199105-199608

33101QPLUG, NO.1(FOR TRANSMISSION CASE)

main90341-16013iJZZ30..MTM199203-199509

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iJZZ30..MTM199105

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iJZZ30..MTM199105

33111CASE, MANUAL TRANSMISSION

main33101-35030iJZZ30..MTM199105-199108

main33101-35031iJZZ30..MTM199108-199405

main33101-35080iJZZ30..MTM199405-199509

main33101-35100iJZZ30..MTM199509

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18026iJZZ30..MTM199105

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004×4iJZZ30..MTM199105-199405

main96411-41800×3iJZZ30..MTM199405

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002×2iJZZ30..MTM199105

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001×4iJZZ30..MTM199105

33131RETAINER, BEARING, FRONT(MTM)

main33131-35031iJZZ30..MTM199105

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-32012iJZZ30..MTM199105

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-35020iJZZ30..MTM199105

33449BMAGNET, TRANSMISSION

main33449-35010iJZZ30..MTM199105-199405

main33449-35030iJZZ30..MTM199405

9011908332

main90119-08332

9011910260

main90119-10260

9011910833

main90119-10833

9011910847

main90119-10847

9161160820

main91611-60820

9161261045

main91612-61045

9161961250

main91619-61250

9165140814

main91651-40814

25 parts on this diagram · 1 diagram in section
