TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

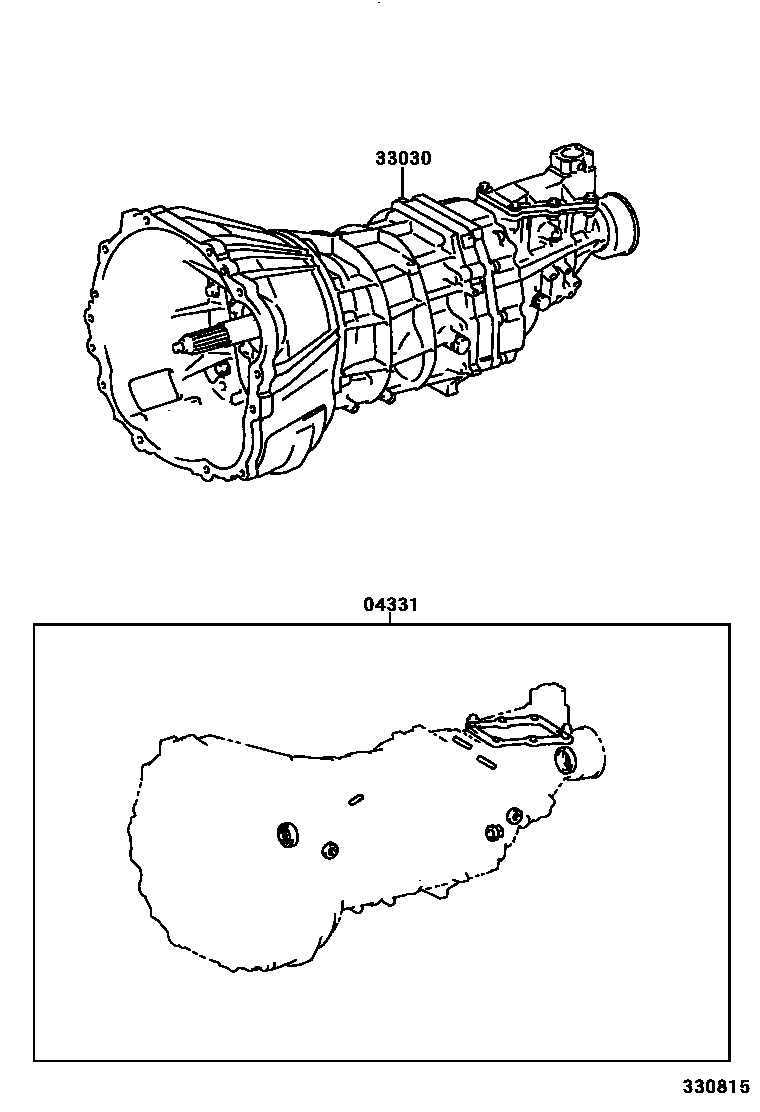

Parts diagram

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-14040i199105-199405

main04331-22060i199405

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-24100i199105-199401

main33030-24130i199401-199405

main33030-24140i199405-199407

main33030-24150i199407-199608

main33030-24160i199608

2 parts on this diagram · 2 diagrams in section
