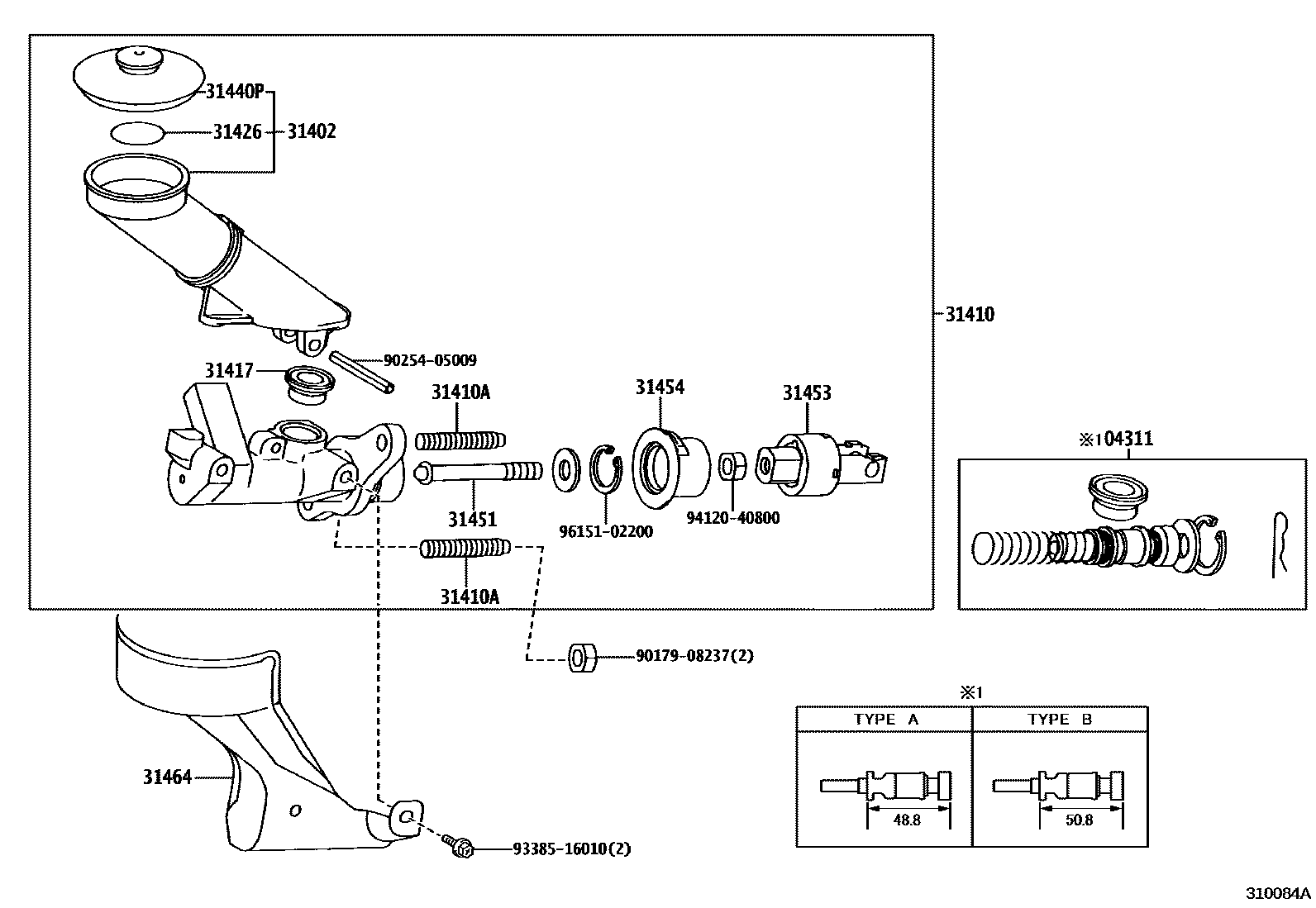

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-12080iJZZ30..MTM199112-199403

main04311-12110iJZZ30..MTM199710

main04311-60120iJZZ30..MTM199105-199112

main04311-60150iJZZ30..MTM199403-199710

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-24020iJZZ30..MTM199105

31410CYLINDER ASSY, CLUTCH MASTER

main31410-14300iJZZ30..MTM199608

main31410-24050iJZZ30..MTM199105-199608

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iJZZ30..MTM199105

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iJZZ30..MTM199105

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-22020iJZZ30..MTM199105

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iJZZ30..MTM199105

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22080iJZZ30..MTM199105-199108

main31451-24020iJZZ30..MTM199108-199309

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-14030iJZZ30..MTM199105-199108

main31404-17010iJZZ30..MTM199108

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14020iJZZ30..MTM199105

31464INSULATOR, CLUTCH MASTER CYLINDER HEAT

main31464-24020iJZZ30..MTM199105-199608

9017908237

main90179-08237

9025405009

main90254-05009

9338516010

main93385-16010

9412040800

main94120-40800

9615102200

main96151-02200

16 parts on this diagram · 1 diagram in section
