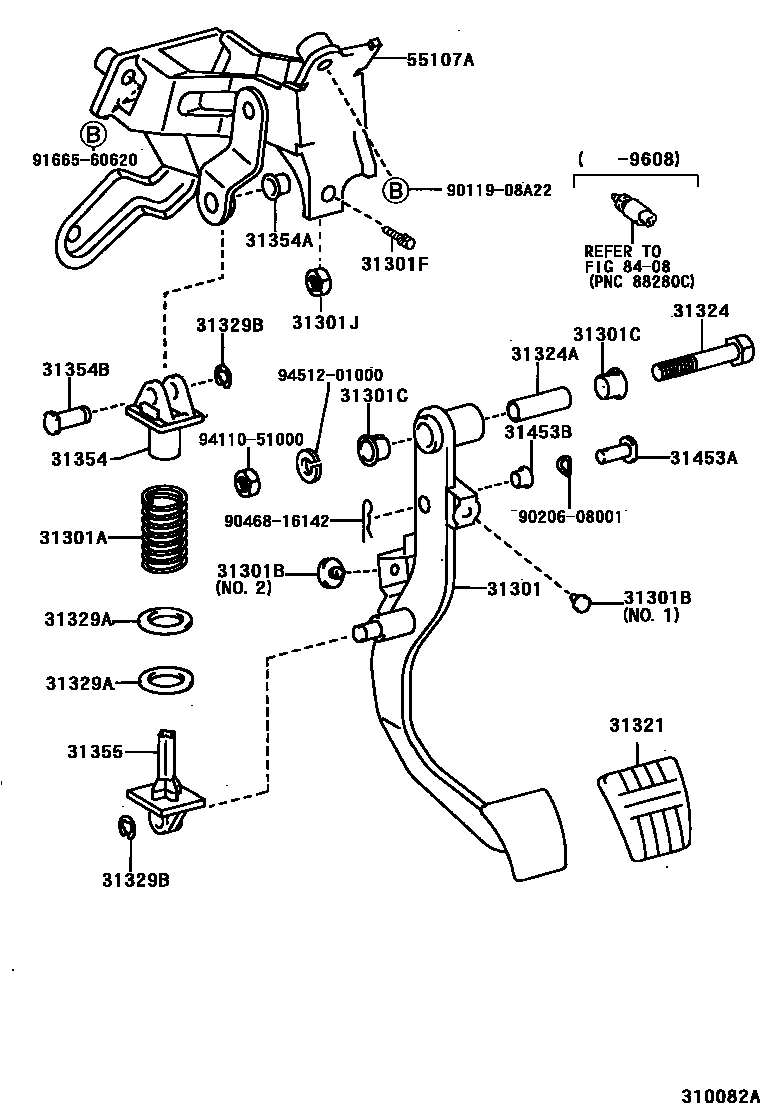

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-24040iJZZ30..MTM199105

31301ASPRING(FOR CLUTCH PEDAL)

main90501-50016iJZZ30..MTM199105

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iJZZ30..MTM199105

main90541-06032iJZZ30..MTM199105-199401

main90541-06036iJZZ30..MTM199401

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iJZZ30..MTM199105

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iJZZ30..MTM199608

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94120-41000iJZZ30..MTM199608

31321PAD, CLUTCH PEDAL

main31321-14020iJZZ30..MTM199105

31324SHAFT, CLUTCH PEDAL

main91121-51060iJZZ30..MTM199105

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iJZZ30..MTM199105

31329AWASHER(FOR CLUTCH PEDAL PAWL)

main90201-20015iJZZ30..MTM199105

main90201-20016iJZZ30..MTM199105

31329BRING, E(FOR CLUTCH PEDAL PAWL)

main96160-00800×2iJZZ30..MTM199105

31354SEAT, CLUTCH PEDAL SPRING, UPPER

main31354-20030iJZZ30..MTM199105

31354ABUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)

main90386-10019iJZZ30..MTM199105

31354BPIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER)

main90249-10127iJZZ30..MTM199105

31355SEAT, CLUTCH PEDAL SPRING, LOWER

main31355-20030iJZZ30..MTM199105

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iJZZ30..MTM199105

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iJZZ30..MTM199105

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-24030iJZZ30..MTM199105

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9011908A22

main90119-08A22

9020608001

main90206-08001

9046816142

main90468-16142

9166560620

main91665-60620

9411051000

main94110-51000

9451201000

main94512-01000

25 parts on this diagram · 2 diagrams in section
