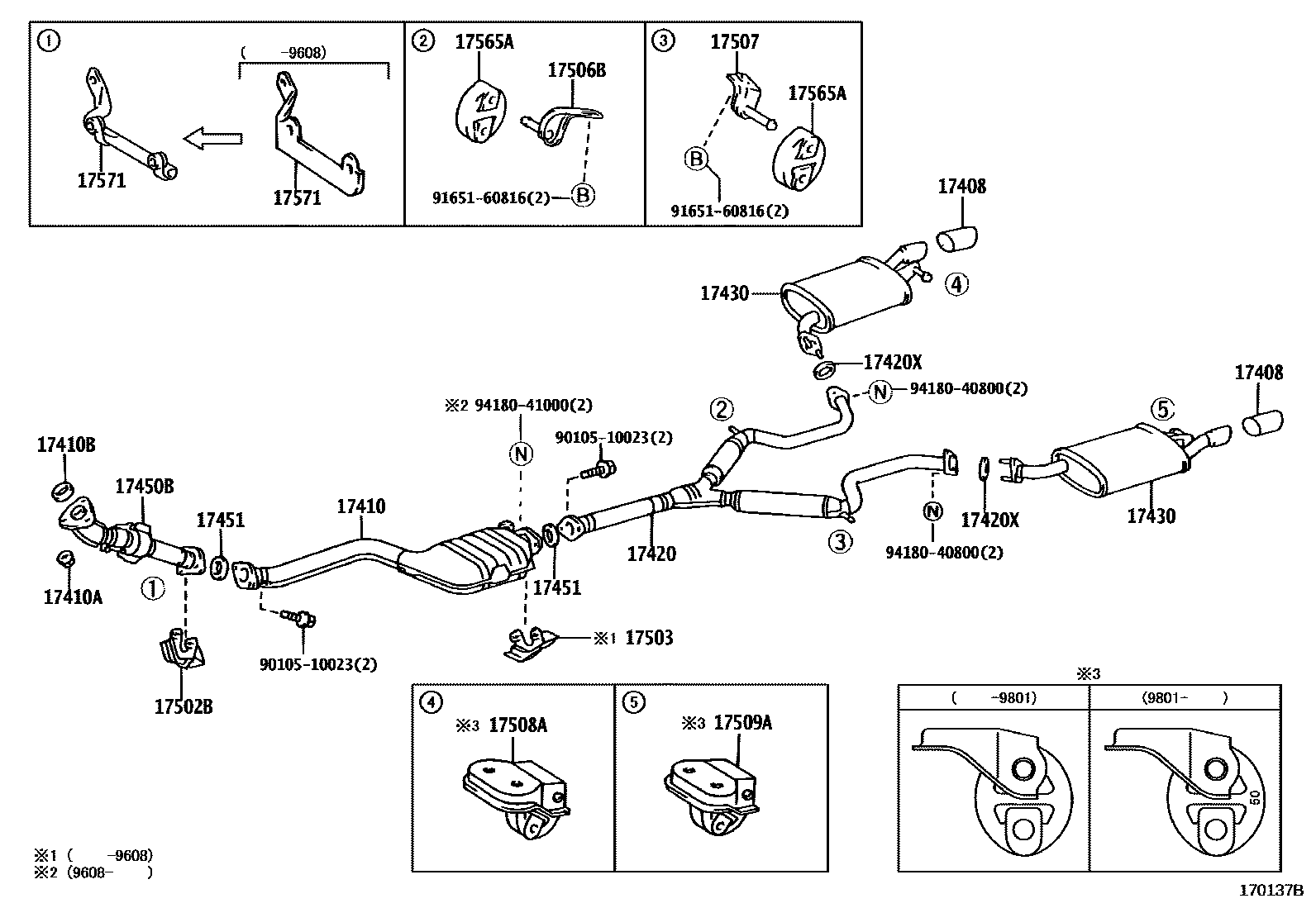

EXHAUST PIPE
17408BAFFLE SUB ASSY, EXHAUST TAILPIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17450BPIPE ASSY, EXHAUST, FRONT NO.2
17451GASKET, EXHAUST PIPE
17502BBRACKET SUB-ASSY, CATALYTIC CONVERTER, FRONT
17503BRACKET SUB-ASSY, CATALYTIC CONVERTER, REAR
17506BBRACKET SUB-ASSY, EXHAUST PIPE SUPPORT
17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17508ABRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17565ASUPPORT, EXHAUST PIPE, NO.4
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
9010510023
main90105-10023
9165160816
main91651-60816
9418040800
main94180-40800
9418041000
main94180-41000
21 parts on this diagram · 3 diagrams in section
