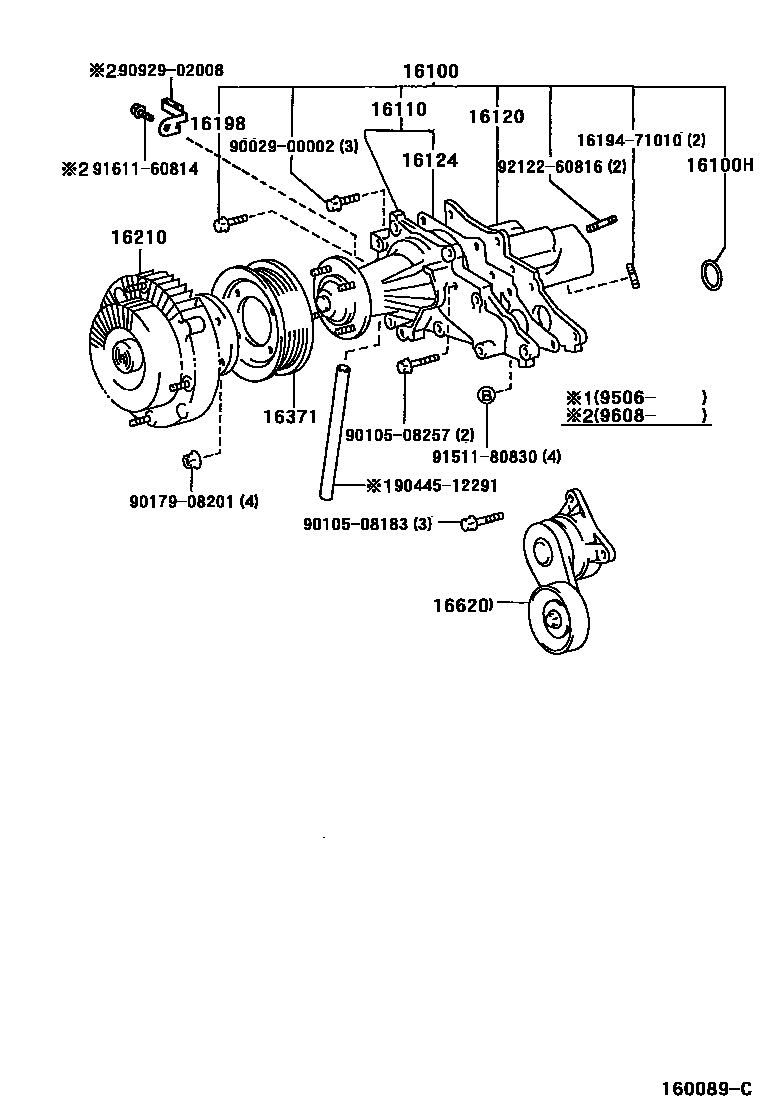

WATER PUMP

0001 1 0002 1 0003 1 0004 1

16100PUMP ASSY, ENGINE WATER

main16100-49825i1JZGTE..JZZ30199105-199212

main16100-49826i1JZGTE..JZZ30199212-199305

main16100-49835i2JZGE..JZZ31199401-199506

main16100-49836i2JZGE..JZZ31199506-199909

main16100-49837i2JZGE..JZZ31199909-200012

main16100-49845i1JZGTE..JZZ30199305-199506

main16100-49846i1JZGTE..JZZ30199506-199608

main16100-49855i1JZGTE..JZZ30199608-200012

main16100-50020i1UZFE..UZZ3#199105-199312

main16100-50021i1UZFE..UZZ3#199312-199409

main16100-50022i1UZFE..UZZ3#199409-199709

16100HRING, O(FOR WATER PUMP)

main96761-24040i1JZGTE,2JZGE..JZZ3#199105

16110PUMP ASSY, WATER, W/O COUPLING

main16110-49097i2JZGE..JZZ31199909-200012

main16110-49105i1JZGTE..JZZ30199105-199305

main16110-49115i2JZGE..JZZ31199401-199506

main16110-49116i2JZGE..JZZ31199506-199909

main16110-49125i1JZGTE..JZZ30199305-199506

main16110-49126i1JZGTE..JZZ30199506-199608

main16110-49130i1JZGTE..JZZ30199608-200012

16120COVER ASSY, WATER PUMP

main16102-46072i2JZGE..JZZ31200006-200012

main16120-46080i2JZGE..JZZ31199909-200006

main16120-88400i1JZGTE..JZZ30199105-200012

16124GASKET, WATER PUMP COVER

main16124-46030i1JZGTE..JZZ30199105-199608

main16124-46040i2JZGE..JZZ31199401-199608

main16124-46041i2JZGE..JZZ31199608-199909

main16124-46070i1JZGTE..JZZ30199608-200012

16198BOLT, STUD(FOR WATER PUMP PULLEY SEAT)

main16198-46030i1JZGTE..JZZ30199105-199212

main16198-46031i1JZGTE..JZZ30199212-199909

16210COUPLING ASSY, FLUID

main16210-46030i2JZGE..JZZ31199401

main16210-46050i1JZGTE..JZZ30199608-199707

main16210-46051i1JZGTE..JZZ30199707-199909

main16210-46052i1JZGTE..JZZ30199909

main16210-88400i1JZGTE..JZZ30199105-199608

16371PULLEY, FAN

main16371-46020i1JZGTE,2JZGE..JZZ3#199105-199608

main16371-46030i1JZGTE..JZZ30199608

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0W010i1JZGTE..JZZ30199301-199307

main16620-0W011i1JZGTE..JZZ30199307-199505

main16620-0W012i1JZGTE..JZZ30199505-199508

main16620-0W013i1JZGTE..JZZ30199508-199610

main16620-0W014i1JZGTE..JZZ30199610-200006

main16620-0W015i1JZGTE..JZZ30200006

main16620-0W021i2JZGE..JZZ31199401-199505

main16620-0W022i2JZGE..JZZ31199505-199508

main16620-0W023i2JZGE..JZZ31199508-199610

main16620-0W024i2JZGE..JZZ31199610-200006

main16620-0W025i2JZGE..JZZ31200006

main16620-0W030i1UZFE..UZZ31199406-199505

main16620-0W031i1UZFE..UZZ31199505-199507

main16620-0W032i1UZFE..UZZ31199507-199508

main16620-0W033i1UZFE..UZZ31199508-199509

main16620-0W034i1UZFE..UZZ31199509-199706

main16620-0W035i1UZFE..UZZ31199706-199709

main16620-0W040i1UZFE..UZZ32199505-199608

main16620-46010i1JZGTE..JZZ30199105-199107

main16620-46011i1JZGTE..JZZ30199107-199209

main16620-46012i1JZGTE..JZZ30199209-199301

main16620-50011i1UZFE..UZZ31199401-199406

main16620-50020i1UZFE..UZZ30,31199105-199401

main16620-50030i1UZFE..UZZ32199105-199505

1619471010BOLT, STUD(FOR WATER OUTLET SETTING)

main16194-71010

9002900002

main90029-00002

9010508183

main90105-08183

9010508257

main90105-08257

9017908201

main90179-08201

9044512291

main90445-12291

9092902008

main90929-02008

9151180830

main91511-80830

9161160814

main91611-60814

9212260816

main92122-60816

19 parts on this diagram · 4 diagrams in section
