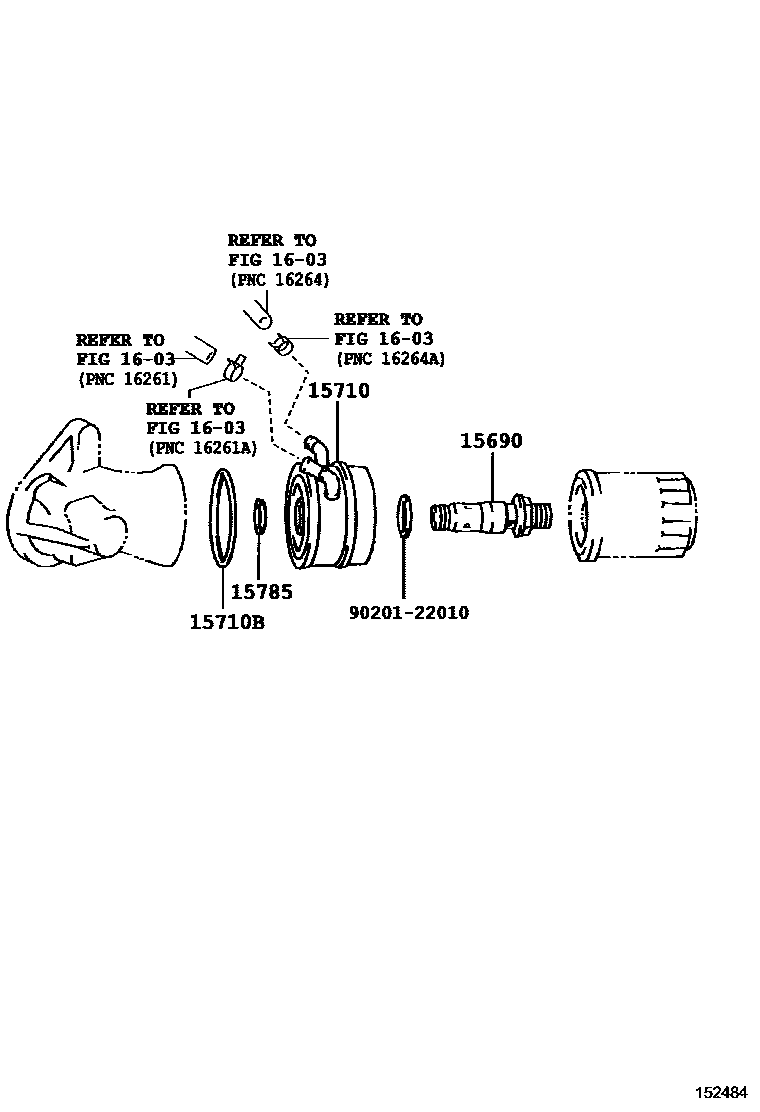

ENGINE OIL COOLER

0001 1 0002 1 0003 1

15690VALVE ASSY, OIL COOLER RELIEF

main15690-88400i1JZGTE..JZZ30199105-199608

main15695-88410i1JZGTE..JZZ30199608-199902

main15695-88411i1JZGTE..JZZ30199902

15710COOLER ASSY, OIL

main15710-88400i1JZGTE..JZZ30199105-199401

main15710-88401i1JZGTE..JZZ30199401-199608

main15710-88410i1JZGTE..JZZ30199608

15710BRING, O(FOR OIL COOLER)

main90301-61003i1JZGTE..JZZ30199105-199608

main90301-67004i1JZGTE..JZZ30199608

15785GASKET, OIL COOLER

main15785-35010i1JZGTE..JZZ30199105-199608

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

9020122010

main90201-22010

6 parts on this diagram · 3 diagrams in section
