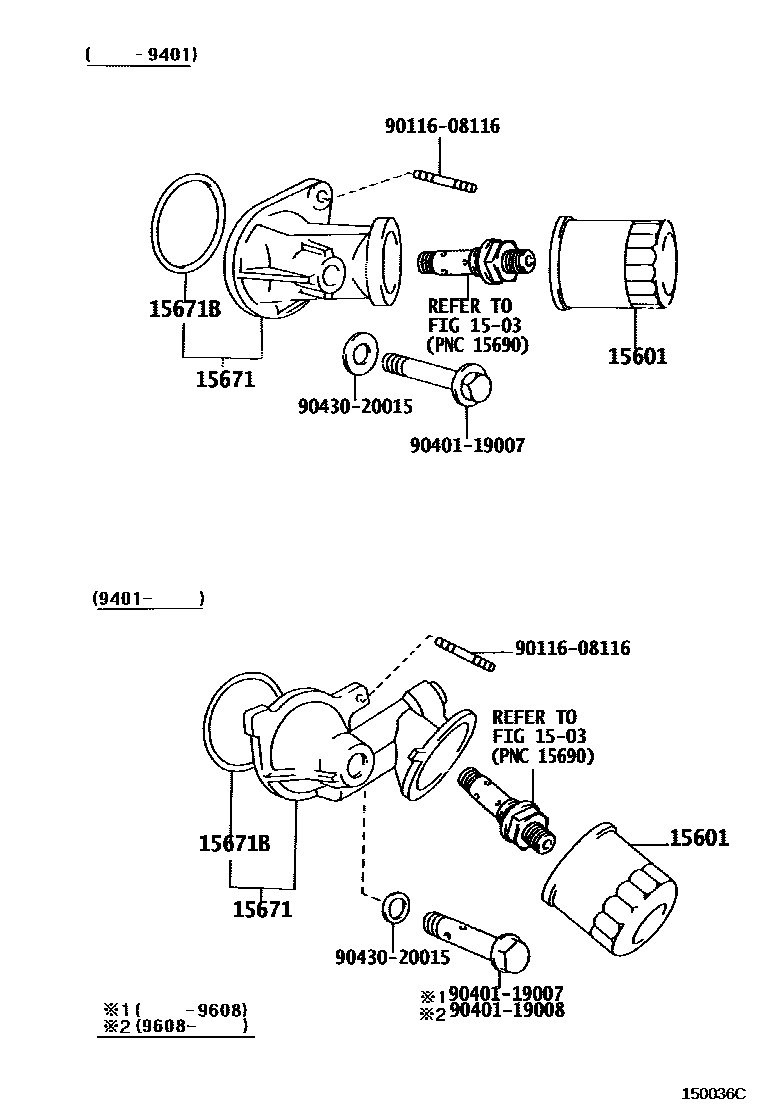

OIL FILTER

0001 1 0002 1 0003 1

1503ENGINE OIL COOLER

→ Go to FIG 15-03

15601FILTER SUB-ASSY, OIL

main90915-03002i1JZGTE..JZZ30199105-199204

main90915-03005i1UZFE..UZZ3#199105-199204

main90915-20001i1JZGTE,2JZGE..JZZ3#199204-199908

main90915-20002i1UZFE..UZZ3#199204-199709

main90915-20003i1JZGTE,2JZGE..JZZ3#199908

15671BRACKET, OIL FILTER

main15670-46052i2JZGE..JZZ31199501-199505

main15670-46070i2JZGE..JZZ31199505

main15670-46080i1JZGTE..JZZ30199401

main15670-88400i1JZGTE..JZZ30199105-199401

15671BGASKET, OIL FILTER BRACKET

main90301-68004i1JZGTE,2JZGE..JZZ3#199105

9011608116

main90116-08116

9040119007

main90401-19007

9040119008

main90401-19008

9043020015

main90430-20015

8 parts on this diagram · 3 diagrams in section
