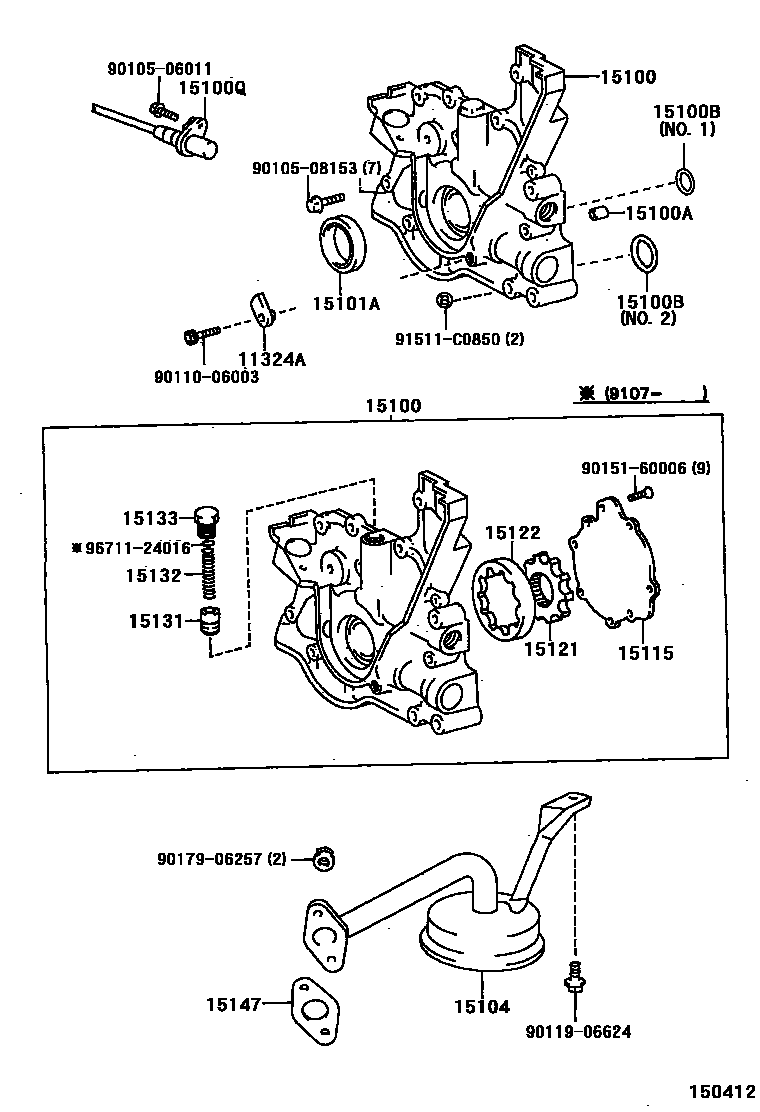

ENGINE OIL PUMP

0001 1 0002 1 0003 1

11324APLATE, TIMING BELT

main11324-46010i1JZGTE..JZZ30199105

main11324-46030i2JZGE..JZZ31199709

15100PUMP ASSY, OIL

main15100-46030i1JZGTE..JZZ30199105

main15100-46041i2JZGE..JZZ31199401-199602

main15100-46042i2JZGE..JZZ31199602-199709

main15100-46090i2JZGE..JZZ31199709

main15100-50020i1UZFE..UZZ30,31199105-199312

main15100-50021i1UZFE..UZZ30,31199312-199409

main15100-50022i1UZFE..UZZ31199409-199709

main15100-50030i1UZFE..UZZ32199105-199312

main15100-50031i1UZFE..UZZ32199312-199608

15100APIN, RING(FOR OIL PUMP SET)

main90253-11021×2i1JZGTE,2JZGE..JZZ3#199105

main90253-13017×2i1UZFE..UZZ3#199105-199709

15100BRING, O(FOR OIL PUMP)

main96721-24022i1JZGTE,2JZGE..JZZ3#199105-200012

main96721-24025i1UZFE..UZZ3#199105-199709

main96721-24031i1JZGTE,2JZGE..JZZ3#199105-200012

15100QSENSOR, CRANK POSITION

main90919-05006i1JZGTE..JZZ30199105-199608

main90919-05023i1JZGTE..JZZ30199608-199709

15101ASEAL(FOR CRANKSHAFT)

main90311-46001i1JZGTE,2JZGE..JZZ3#199105

15104STRAINER SUB-ASSY, OIL

main15104-46030i1JZGTE,2JZGE..JZZ3#199105

main15104-50070i1UZFE..UZZ3#199105-199405

main15104-50071i1UZFE..UZZ3#199405-199709

15115COVER, OIL PUMP

main15115-1A764i1JZGTE..JZZ30199105-199107

main15115-46030i1JZGTE..JZZ30199107

main15115-46040i2JZGE..JZZ31199401-199709

main15115-46090i2JZGE..JZZ31199709

main15115-50020i1UZFE..UZZ3#199105-199409

main15115-50022i1UZFE..UZZ3#199410-199709

15121GEAR, OIL PUMP DRIVE

main15121-2A764i1JZGTE..JZZ30199105-199107

main15121-46030i1JZGTE..JZZ30199107

15122GEAR, OIL PUMP DRIVEN

main15122-2A764i1JZGTE..JZZ30199105-199107

main15122-46030i1JZGTE..JZZ30199107

15131VALVE, OIL PUMP RELIEF

main15131-17010i2JZGE..JZZ31199401-199709

main15131-24010i1UZFE..UZZ3#199105-199709

main15131-46030i1JZGTE..JZZ30199107

main15131-46060i2JZGE..JZZ31199709

main75431-50356i1JZGTE..JZZ30199105-199107

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46020i2JZGE..JZZ31199401-199709

main15132-46030i1JZGTE..JZZ30199107

main15132-46060i2JZGE..JZZ31199709

main15132-62010i1UZFE..UZZ3#199105-199709

main75431-50583i1JZGTE..JZZ30199105-199107

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i2JZGE..JZZ31199401

main15133-46030i1JZGTE..JZZ30199107

main75431-50545i1JZGTE..JZZ30199105-199107

15147GASKET, OIL STRAINER

main15147-46010i1JZGTE,2JZGE..JZZ3#199105

main15147-50010i1UZFE..UZZ3#199105-199709

9010506011

main90105-06011

9010508153

main90105-08153

9011006003

main90110-06003

9011906624

main90119-06624

9015160006

main90151-60006

9017906257

main90179-06257

91511C0850

main91511-C0850

9671124016

main96711-24016

22 parts on this diagram · 3 diagrams in section
