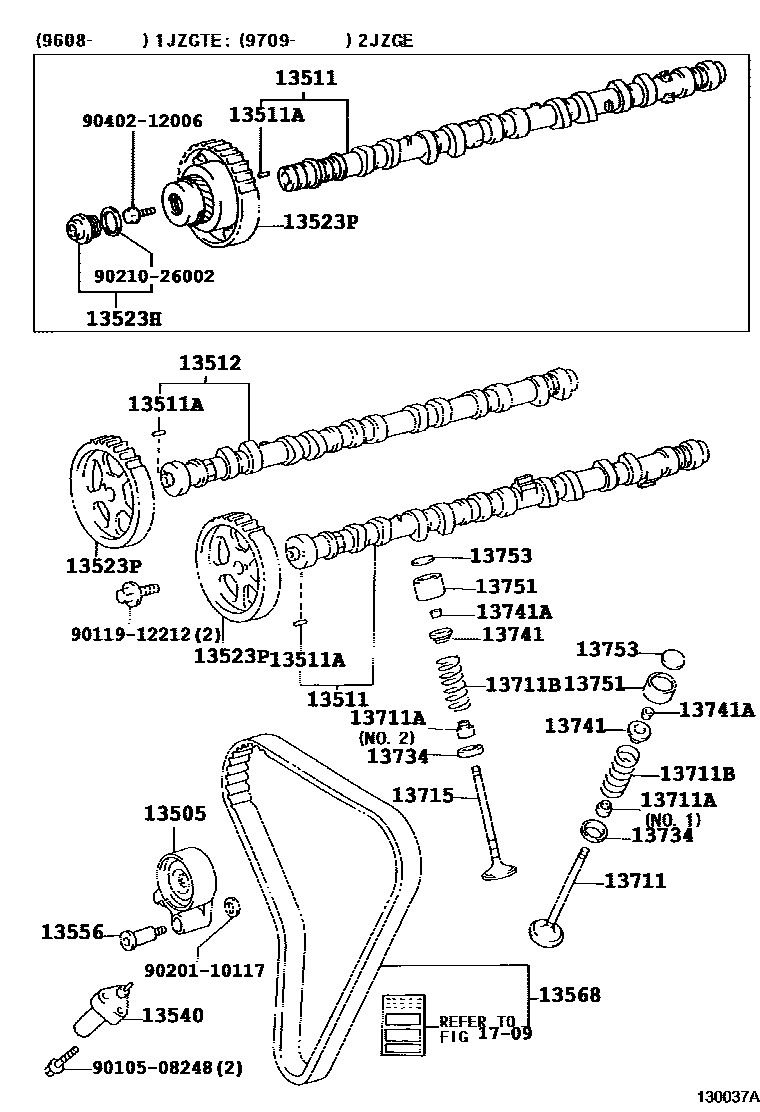

CAMSHAFT & VALVE
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13511CAMSHAFT
13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)
13512CAMSHAFT, NO.2
13523HPLUG, STRAIGHT SCREW W/HEAD(FOR CAMSHAFT TIMING PULLEY)
13523PPULLEY, CAMSHAFT TIMING
13540TENSIONER ASSY, CHAIN, NO.1
13556SHAFT, TIMING BELT IDLER
13568BELT, TIMING
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
13711BSPRING, COMPRESSION(FOR INNER)
13715VALVE, EXHAUST
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
1709CAUTION PLATE & NAME PLATE (ENGINE)
9010508248
main90105-08248
9011912212
main90119-12212
9020110117
main90201-10117
9021026002
main90210-26002
9040212006
main90402-12006
24 parts on this diagram · 2 diagrams in section
