ENGINE OVERHAUL GASKET KIT

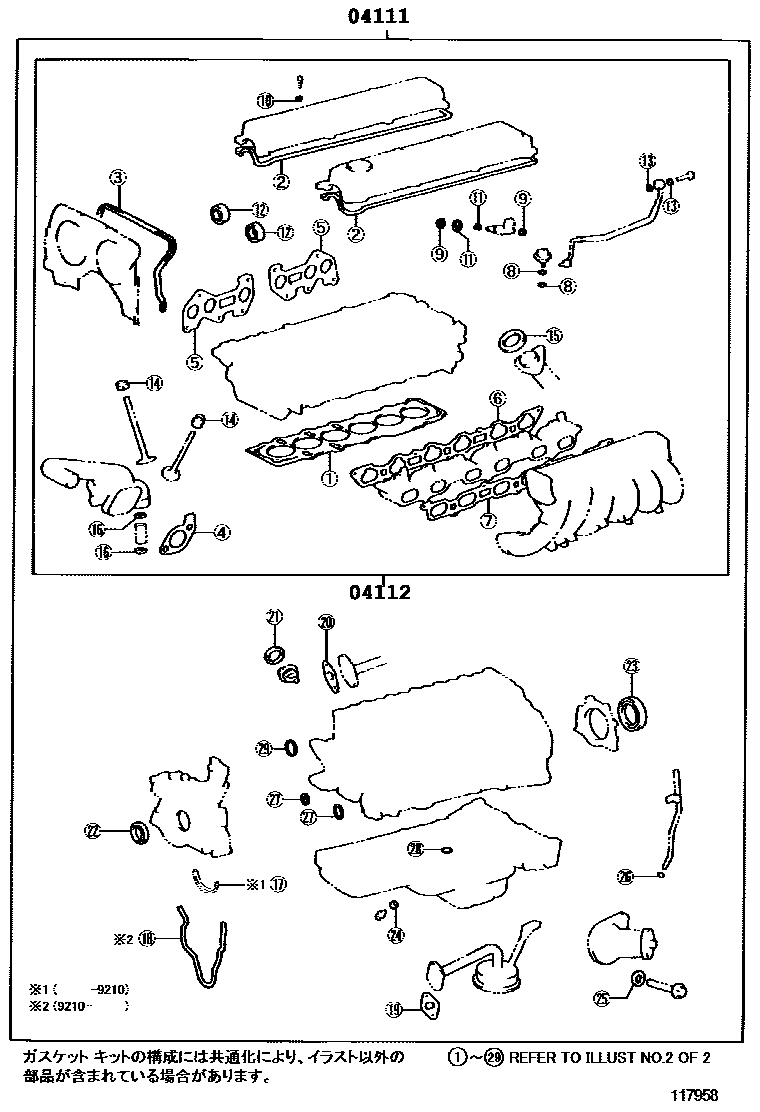

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-46031i199105-199210
sub04111-46033
main04111-46032i199210-199608
sub04111-46034
main04111-46044i199401-199608
sub04111-46045
main04111-46045i199608-199709
main04111-46102i199709
main04111-46110i199608-199704
sub04111-46111
main04111-46111i199704
main04111-50040i199105-199408
sub04111-50041
main04111-50042i199408-199509
sub04111-50043
main04111-50043i199509-199705
sub04111-50044
main04111-50044i199705-199709
sub04111-50045
main04111-50050i199105-199408
sub04111-50051
main04111-50052i199408-199509
sub04111-50053
main04111-50053i199509-199608
sub04111-50054
04112GASKET KIT, ENGINE VALVE GRIND
main04112-46030i199105-199608
main04112-46044i199401-199608
sub04112-46045
main04112-46045i199608-199709
main04112-46102i199709
main04112-46110i199608-199704
sub04112-46111
main04112-46111i199704
main04112-50040i199105-199408
sub04112-50041
main04112-50042i199408-199509
sub04112-50043
main04112-50043i199509-199705
sub04112-50044
main04112-50044i199705-199709
sub04112-50045
main04112-50050i199105-199408
sub04112-50051
main04112-50052i199408-199509
sub04112-50053
main04112-50053i199509-199608
sub04112-50054

2 parts on this diagram · 12 diagrams in section
