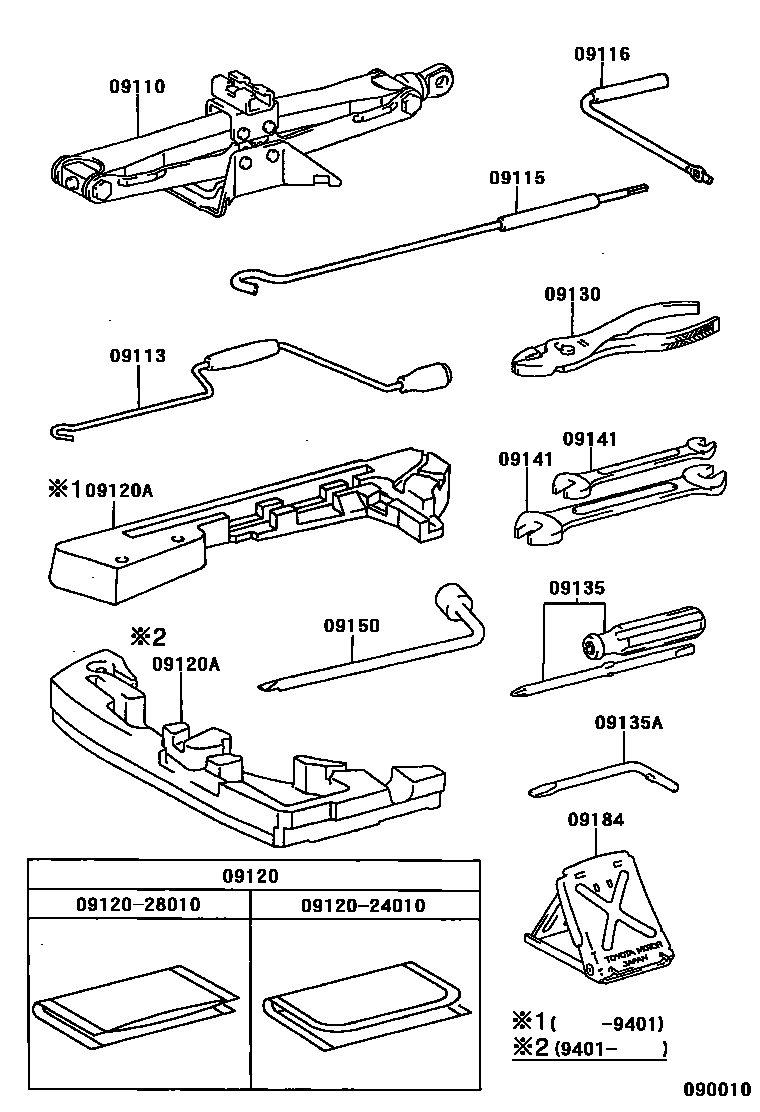

STANDARD TOOL

09110JACK ASSY

main09111-24050iJZZ30,UZZ3#199105-199110

main09111-24051iJZZ30,UZZ3#199110-199211

main09111-30110iJZZ3#,UZZ3#199211

09113HANDLE, JACK

main09113-50010iJZZ3#,UZZ3#199401

09115ROD SUB-ASSY, JACK HANDLE

main09115-24020iJZZ30,UZZ3#199105-199401

09116LEVER, JACK HANDLE

main09116-24010iJZZ30,UZZ3#199105-199401

09120BAG, TOOL

main09120-24010iJZZ30,UZZ3#199105-199401

main09120-28040iJZZ3#,UZZ3#199401

09120ACASE, TOOL

main09120-24040iJZZ30,UZZ3#199105-199401

main09120-30040iJZZ3#,UZZ3#199401

09130PLIERS

main99913-11500iJZZ30,UZZ3#199105-199401

09135DRIVER, SCREW

main99915-10700iJZZ3#,UZZ3#199505

09135ABIT, SCREW DRIVER

main09135-00012iJZZ30,UZZ3#199105-199401

09141SPANNER

main99914-10810iJZZ3#,UZZ3#199505

main99914-11214iJZZ30,UZZ3#199105-199401

09150WRENCH, HUB NUT BOX

main09150-40010iJZZ3#,UZZ3#199105

09184STOPPER, WHEEL

main09184-00010iJZZ3#,UZZ3#199105

12 parts on this diagram · 1 diagram in section
