AIR PURIFIER OR ION GENERATOR

88901MOTOR SUB-ASSY, AIR PURIFIER

main88901-22020iGZ20,MZ2#..CP198801-199104

88904FITTING KIT, AIR PURIFIER

main88904-24010-01iGZ20;MZ20..CP..GT198801-199104

main88904-24010-04iGZ20,MZ2#..CP198801-199104

main88904-24010-15iGZ20,MZ2#..CP198801-199104

main88904-24020-01iGZ20;MZ20..CP..GT198801-199104

main88904-24020-04iGZ20,MZ2#..CP198801-199104

main88904-24020-15iGZ20,MZ2#..CP198801-199104

88905AWIRE SUB-ASSY, AIR PURIFIER, NO.2

main88905-24010iGZ20,MZ2#..CP198801-199104

main88905-24020iGZ20,MZ2#..CP198801-199104

main88908-24010iGZ20,MZ2#..CP198801-199104

main88908-24020iGZ20,MZ2#..CP198801-199104

88912FAN, AIR PURIFIER

main88912-22010iGZ20,MZ2#..CP198801-199104

88915RESISTOR, AIR PURIFIER

main88915-22010iGZ20,MZ2#..CP198801-199104

88920APURIFIER ASSY, AIR

main88920-24010iGZ20,MZ2#..CP198801-199104

main88920-24020iGZ20,MZ2#..CP198801-199104

88926FILTER, AIR PURIFIER

main88926-24010iGZ20,MZ2#..CP198801-199104

88926AODOR, CARTRIDGE

main88927-24010iGZ20,MZ2#..CP198801-199104

88930ASWITCH ASSY, AIR PURIFIER

main88930-24010iGZ20,MZ2#..CP198801-199104

main88930-24020iGZ20,MZ2#..CP198801-199104

88931SENSOR, SMOKE

main88931-24011iGZ20,MZ2#..CP198801-199104

88950AMPLIFIER ASSY, AIR PURIFIER

main88950-24010iGZ20,MZ2#..CP198801-199104

main88950-24020iGZ20,MZ2#..CP198801-199104

88960AGRILLE ASSY, AIR PURIFIER

main88960-24010-01iGZ20;MZ20..CP..GT198801-199104

BLACK,TRIM2#

main88960-24010-04iGZ20,MZ2#..CP198801-199104

DARK BLUE,TRIM8#

main88960-24010-15iGZ20,MZ2#..CP198801-199104

GRAGE,TRIM4#

9015950033

main90159-50033

9166140620

main91661-40620

9356855012

main93568-55012

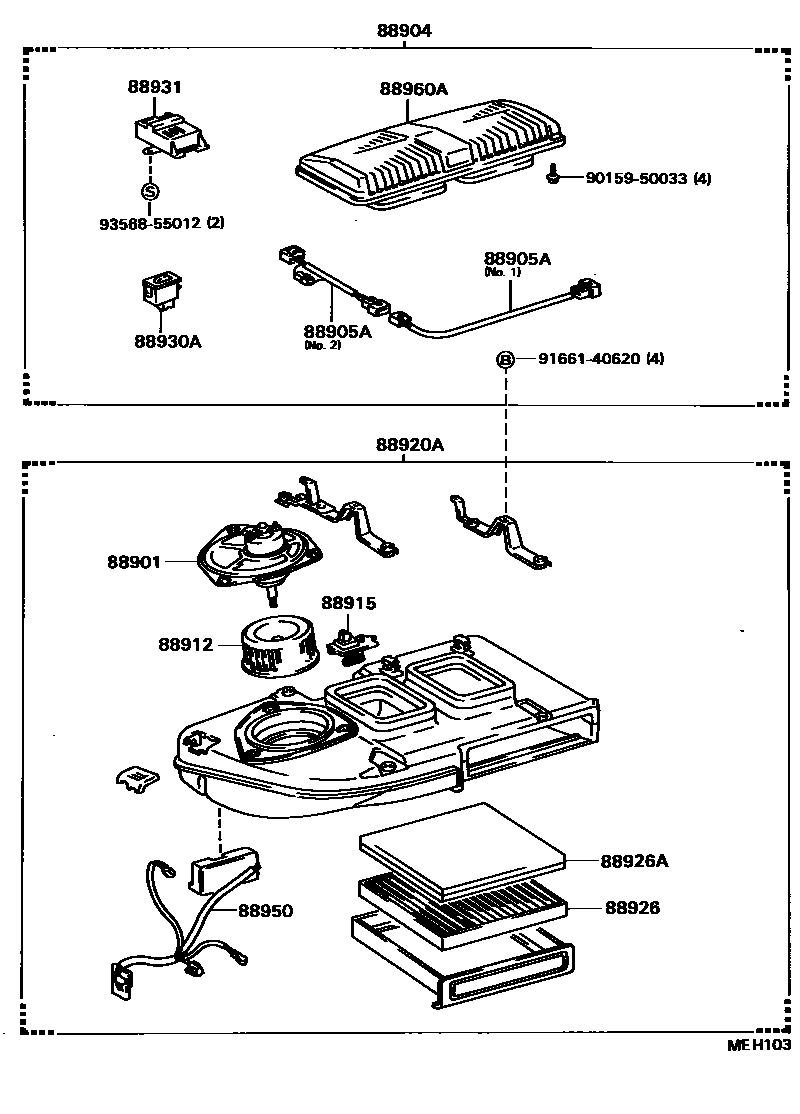

15 parts on this diagram · 1 diagram in section
