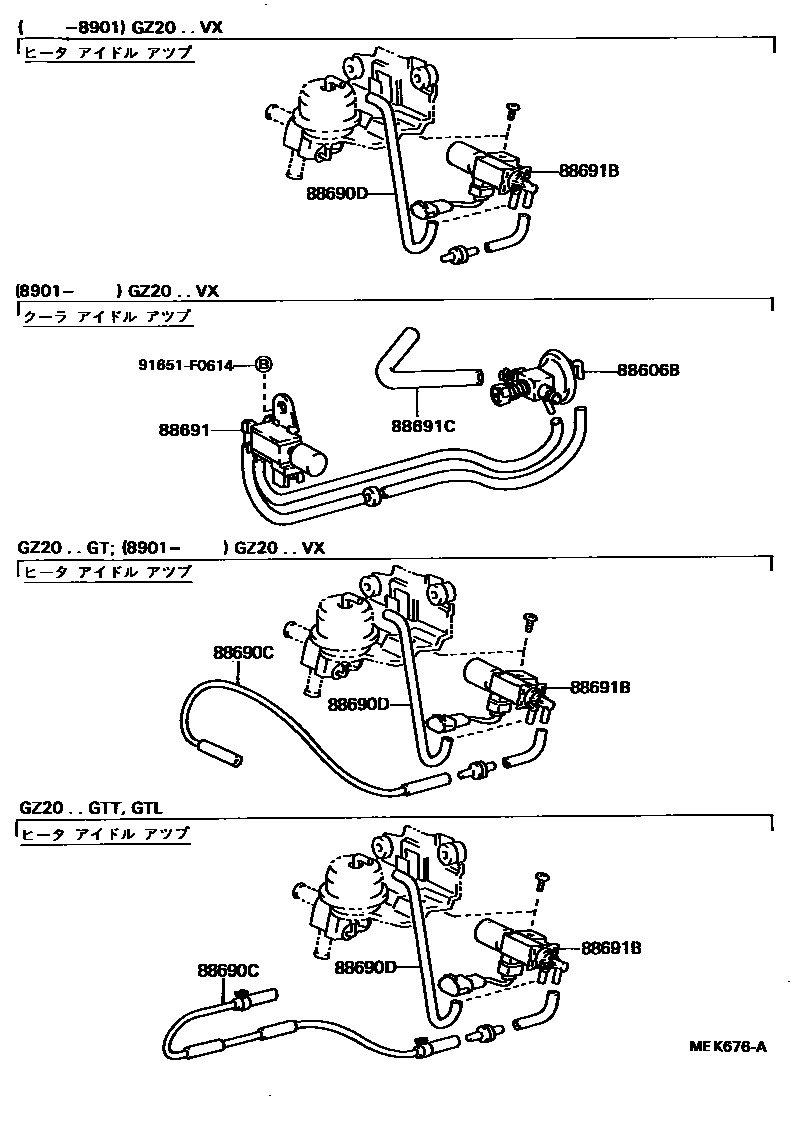

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1

88606BDIAPHRAGM SUB-ASSY, COOLER

main88606-22070iGZ20..HTWC198901-199104

88690CHOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER)

main88807-24010iGZ20..TWT198801-199104

main90447-04056iMZ2#198801-199104

main95413-40048iGZ20..HTWC,TWC198801-199104

88690DHOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER)

main90999-92002iGZ20,MZ2#198801-199104

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-22490iGZ20..HTWC198901-199104

88691BVALVE, MAGNET (FOR WATER VALVE)

main88690-24050iGZ20,MZ2#198801-199104

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main88689-22170iGZ20..HTWC198901-199104

91651F0614

main91651-F0614

7 parts on this diagram · 2 diagrams in section
