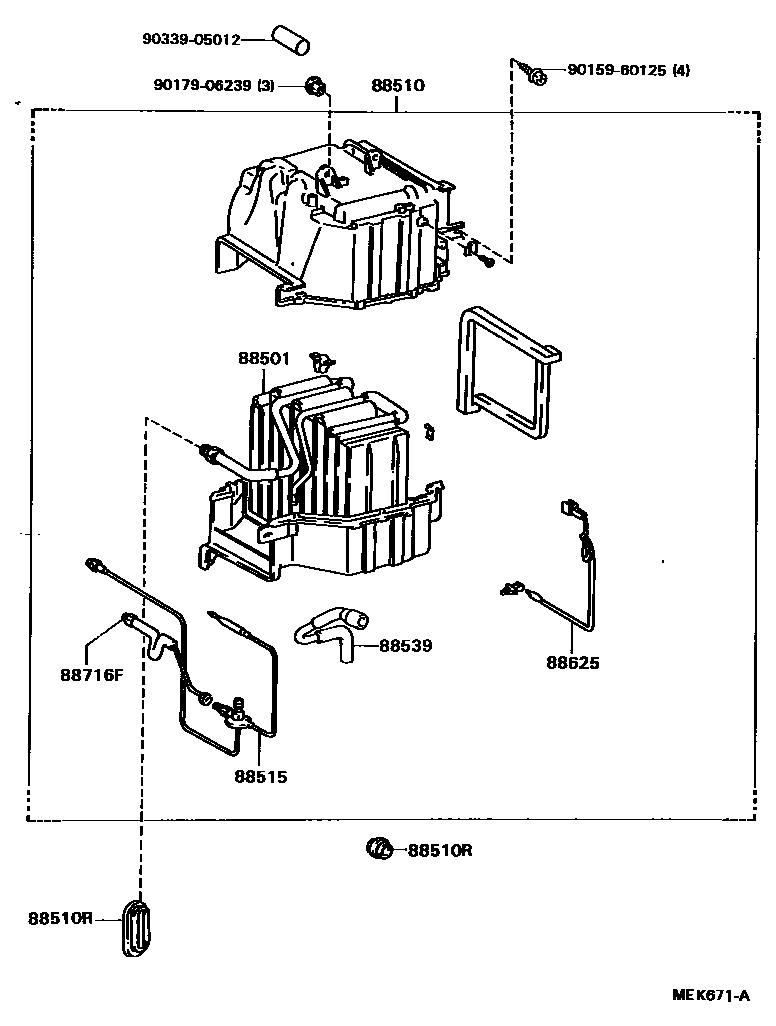

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1W/CTR DISPLAY

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-24040iGZ20,MZ2#198801-199104

88510UNIT ASSY, COOLER

main88510-24100iGZ20,MZ20198801-199104

main88510-24110iMZ20..GTL; MZ21198801-199104

88510RGROMMET (FOR COOLER UNIT)

main90480-24008iGZ20,MZ2#198801-199104

PIPE

main90480-26004iGZ20,MZ2#198801-199104

DRAIN HOSE

88515VALVE, COOLER EXPANSION

main88515-24010iGZ20,MZ2#198801-199104

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-24031iGZ20,MZ2#198801-199104

88625THERMISTOR, COOLER, NO.1

main88625-24050iGZ20,MZ2#198801-199104

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-24180iGZ20,MZ2#198801-199104

9015960125

main90159-60125

9017906239

main90179-06239

9033905012

main90339-05012

10 parts on this diagram · 2 diagrams in section
