HORN

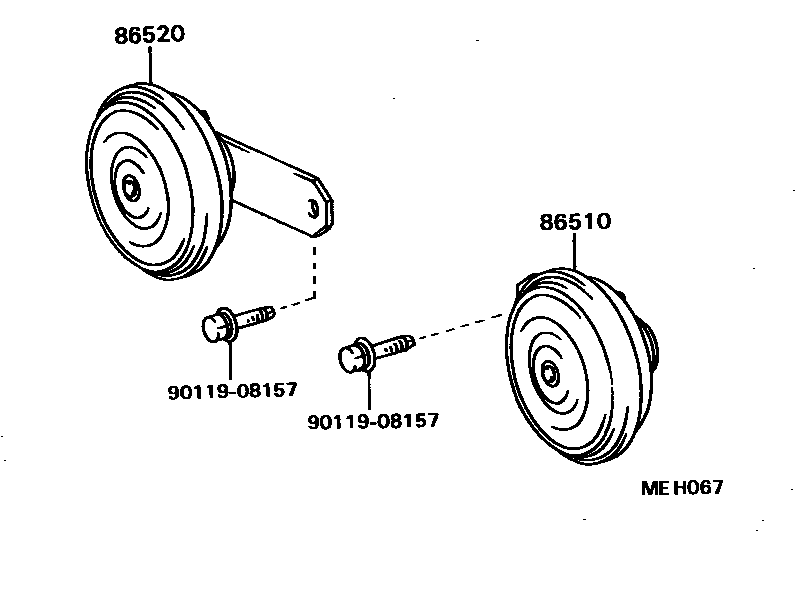

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-14210i198801-199104

main86510-14220i198801-199104

86520HORN ASSY, LOW PITCHED

main86520-14210i198801-199104

main86520-14220i198801-199104

9011908157

main90119-08157

3 parts on this diagram · 1 diagram in section
