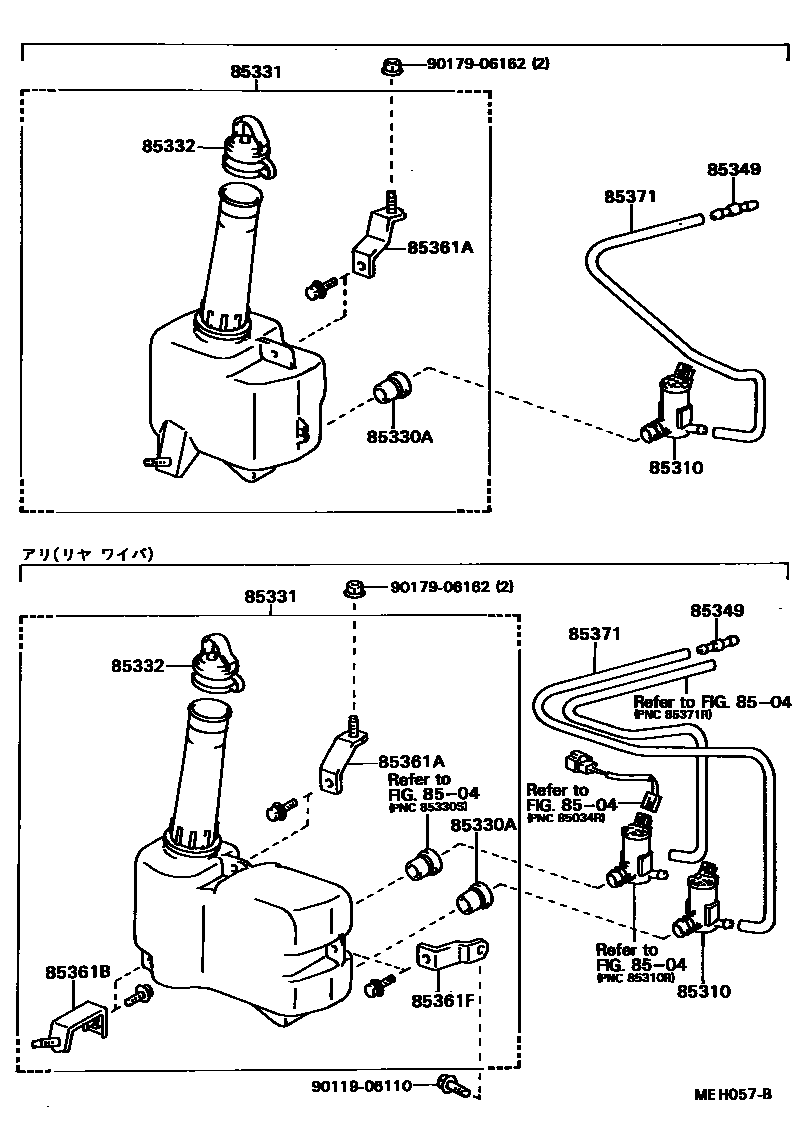

WINDSHIELD WASHER

0001 1 0002 1 0003 1

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iGZ20,MZ2#..TWC,TWT198801-198808

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iGZ20,MZ2#198801-199104

85331JAR SUB-ASSY, WINDSHIELD WASHER

main85331-14640iMZ20..GT;GZ20..HTWC,TWC,TWT198812-199104

main85331-14680iMZ2#..GTL; MZ20..GT;GZ20..TWC,TWT198801-198808

main85331-14700iMZ2#..GTL; MZ20..CP..GT;GZ20..TWC,TWT198808-199104

main85331-24060iGZ20;MZ20..GT198801-198901

85332CAP, WINDSHIELD WASHER JAR

main85332-20441iGZ20,MZ2#198801-198808

main85332-32161iGZ20,MZ2#198808-199104

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iGZ20,MZ2#198801-199104

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85361-14600iGZ20,MZ2#198801-199104

85361BBRACKET, WINDSHIELD WASHER, NO.2

main85362-14600iGZ20,MZ2#..HTWC,TWC,TWT198801-199104

85361FBRACKET, WINDSHIELD WASHER, NO.3

main85363-14600iGZ20,MZ2#..HTWC,TWC,TWT198801-199104

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-07001iGZ20;MZ20..GT198801-198901

9011906110

main90119-06110

9017906162

main90179-06162

12 parts on this diagram · 3 diagrams in section
