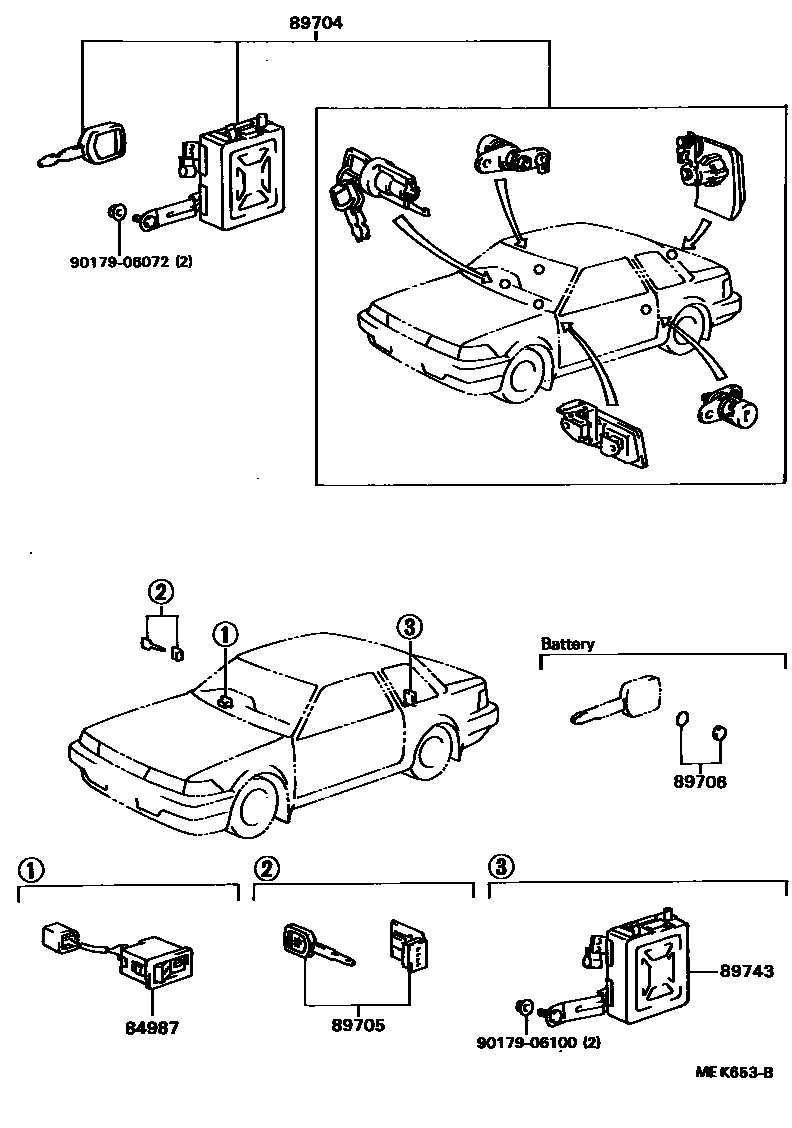

WIRELESS DOOR LOCK

84987SWITCH, WIRELESS DOOR LOCK MAIN

main84987-24010-04iMZ2#..GTL198801-199104

DARK BLUE,TRIM8#

main84987-24010-05iMZ2#..GTL198801-199104

GRAGE,TRIM4#

89704CONTROL SET, WIRELESS DOOR LOCK

main89704-24010-04iMZ2#..GTL198801-198901

DARK BLUE,TRIM8#

main89704-24010-05iMZ2#..GTL198801-198901

GREIGE,TRIM4#

main89704-24011-01iMZ2#..GTL198901

BLACK,BLACK,TRIM2#

main89704-24011-04iMZ2#..GTL198901-199104

DARK BLUE,TRIM8#

main89704-24011-05iMZ2#..GTL198901-199104

GRAIGE,TRIM4#

89705TRANSMITTER, DOOR CONTROL

main89705-24010iMZ2#..GTL198801-198901

main89705-24011iMZ2#..GTL198901-199104

89706BATTERY SET, TRANSMITTER

main89706-30010iMZ2#..GTL198801-199104

89743RECEIVER, DOOR CONTROL

main89743-24011iMZ2#..GTL198801-199104

9017906072

main90179-06072

9017906100

main90179-06100

7 parts on this diagram · 1 diagram in section
