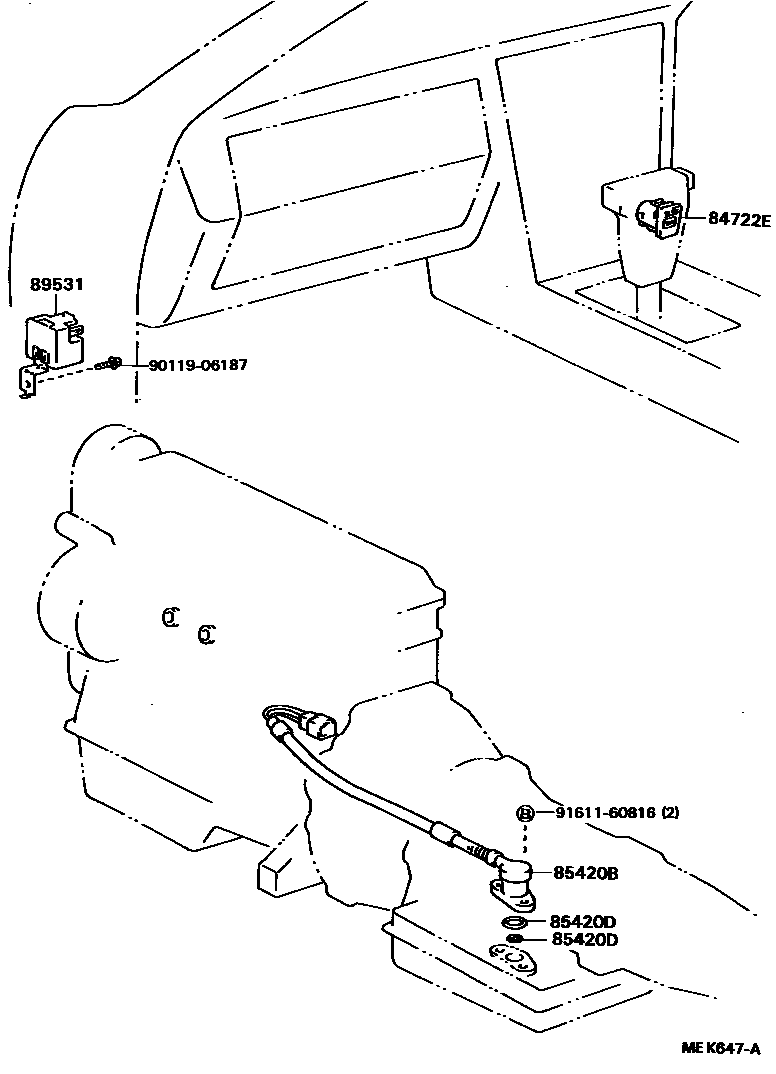

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1OVERDRIVE 0002 1ECT 0003 1ECT

84722ESWITCH, TRANSMISSION CONTROL

main84722-24030-01iGZ20..4FC;MZ20..CP..4FC..GT198801-199104

BLACK,TRIM2#

main84722-24030-04iGZ20,MZ2#..CP..4FC198801-199104

DARK BLUE,TRIM8#

main84722-24030-15iGZ20,MZ2#..4FC198801-199104

GRAIGE,TRIM4#

85420SOLENOID ASSY, TRANSMISSION

main85420-22070×2iGZ20,MZ2#..4FC..TWT198804-198807

main85420-22080×2iGZ20,MZ2#..4FC..TWT198801-198804

NO.1,NO.2

main85420-30050iGZ20..4FC..TWC198801-198901

main85420-30070iGZ20..4FC..TWC198801-198901

main85420-30110iGZ20,MZ2#..4FC..(TWC,TWT)198901-199104

main85420-30120iGZ20,MZ2#..4FC..TWT198801-198901

NIPPONDENSO,NO.3

85420BSOLENOID ASSY, TRANSMISSION

main85420-22090iGZ20..4FC..EFI198809-198901

main85420-30130iGZ20..4FC..EFI198801-198809

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×3iGZ20,MZ2#..4FC..(TWC,TWT)198901-199104

main90301-11001iGZ20..4FC..VX198801-199104

ID=11

main90301-22001iGZ20..4FC..HTWC198901-199104

OD=25.5,ID=22

main90301-23001iGZ20..4FC..VX198801-199104

ID=23

89531RELAY, TRANSMISSION CONTROL

main89531-24010iGZ20..4FC..VX198801-199104

9011906187

main90119-06187

9161160816

main91611-60816

7 parts on this diagram · 3 diagrams in section
