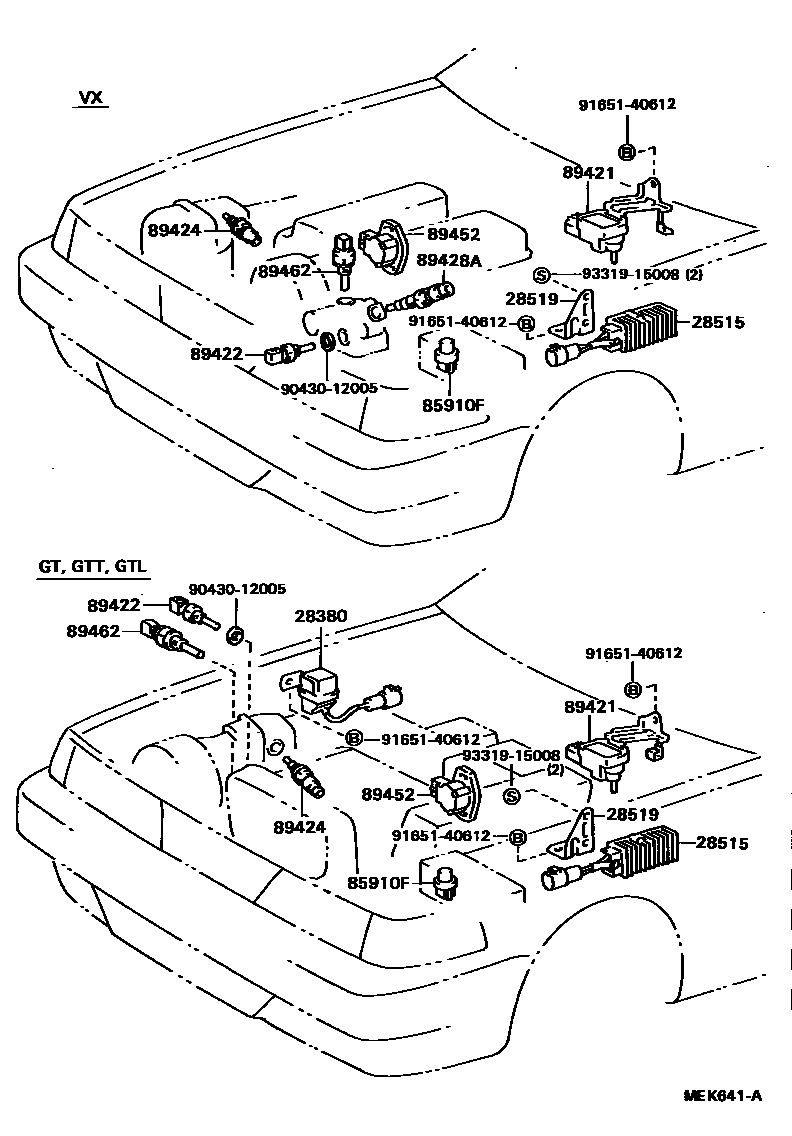

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

28380RELAY ASSY, FUEL PUMP

main28380-43010i1GGTEU,7MGTEU..GZ20,MZ2#198801-199104

28515RESISTOR, SOLENOID

main28515-43040i1GGEU,7MGTEU..GZ20,MZ2#198801-199104

main28515-70010i1GEU..GZ20198801-198901

28519BRACKET, SOLENOID RESISTOR

main28519-70020i1GEU,1GGEU,7MGTEU..GZ20,MZ20198801-199104

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iGZ20,MZ2#198801-199104

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-24020iGZ20..GT,VX198801-199104

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iGZ20,MZ2#198801-199104

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-28010iGZ20..GT,VX198801-199104

89428ASWITCH, WATER TEMPERATURE (FOR E.F.I)

main89428-14070iGZ20..EFI198801-198901

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12040iGZ20..TWT198801-199104

main89452-14050iMZ2#198903-199104

main89452-22010iGZ20..HTWC198901-199104

main89452-28030iMZ2#198801-198903

sub89452-20050

main89452-28040iGZ20..EFI198801-198901

sub89452-20060

89462SWITCH, START INJECTOR TIME

main89462-20020iMZ2#;GZ20..GT,VX198801-199104

main89462-20030iGZ20..TWT198801-199104

9043012005

main90430-12005

9165140612

main91651-40612

9331915008

main93319-15008

13 parts on this diagram · 3 diagrams in section
